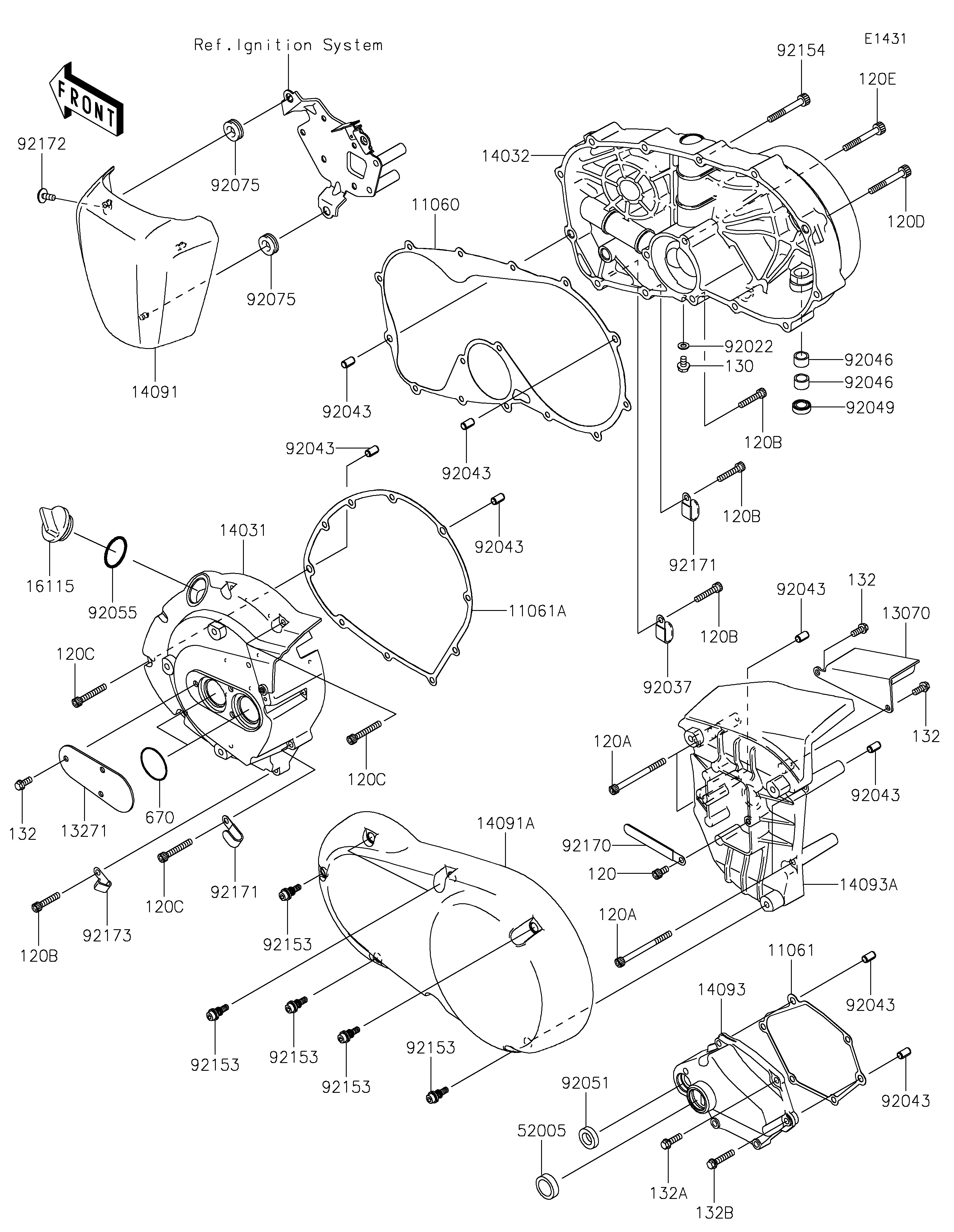

2021 VULCAN® 900 CLASSIC LT - Engine Cover(s)
11060
11061
11061A
120
120A
120A
120B
120B
120B
120B
120C
120C
120C
120D
120E
130
13070
132
132
132
13271
132A
132B
14031
14032
14091
14091A
14093
14093A
16115
52005
670
92022
92037
92043
92043
92043
92043
92043
92043
92043
92043
92046
92046
92049
92051
92055
92075
92075
92153
92153
92153
92153
92153
92154
92170
92171
92171
92172
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CLUTCH COVER | 11060 | 11060-1926 | 1 | ||
| GASKET,MECHANISM COVER | 11061 | 11061-0208 | 1 | ||
| GASKET,GENERATOR COVER | 11061A | 11061-0209 | 1 | ||
| BOLT-SOCKET,6X12 | 120 | 120CA0612 | 1 | ||
| BOLT-SOCKET,6X75 | 120A | 120CA0675 | 4 | ||
| BOLT-SOCKET,6X30 | 120B | 120CC0630 | 9 | ||
| BOLT-SOCKET,6X40 | 120C | 120CC0640 | 4 | ||
| BOLT-SOCKET,6X50 | 120D | 120CC0650 | 10 | ||
| BOLT-SOCKET,6X65 | 120E | 120CC0665 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 1 | ||
| GUIDE,BELT | 13070 | 13070-0055 | 1 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 5 | ||
| PLATE | 13271 | 13271-0700 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BA0620 | 1 | ||
| BOLT-FLANGED-SMALL,6X30 | 132B | 132BA0630 | 5 | ||
| COVER-GENERATOR | 14031 | 14031-0620 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-0076 | 1 | ||
| COVER | 14091 | 14091-0289 | 1 | ||
| COVER,OUTER,LH | 14091A | 14091-0511 | 1 | ||
| COVER,CHANGE MECHANISM | 14093 | 14093-0673 | 1 | ||
| COVER,PULLEY | 14093A | 14093-0674 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| O RING,34MM | 670 | 670B3034 | 2 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| CLAMP,L=45 | 92037 | 92037-1539 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 8 | ||
| BEARING-NEEDLE,HK1210FM | 92046 | 92046-0034 | 2 | ||
| SEAL-OIL,TB12205.5 | 92049 | 92049-1271 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
| DAMPER | 92075 | 92075-1629 | 3 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-1331 | 6 | ||
| BOLT,SOCKET,6X50 | 92154 | 92154-0270 | 1 | ||
| CLAMP | 92170 | 92170-1925 | 1 | ||
| CLAMP | 92171 | 92171-0739 | 2 | ||
| SCREW,5X12 | 92172 | 92172-0101 | 1 | ||
| CLAMP,HARNESS | 92173 | 92173-1368 | 1 |
