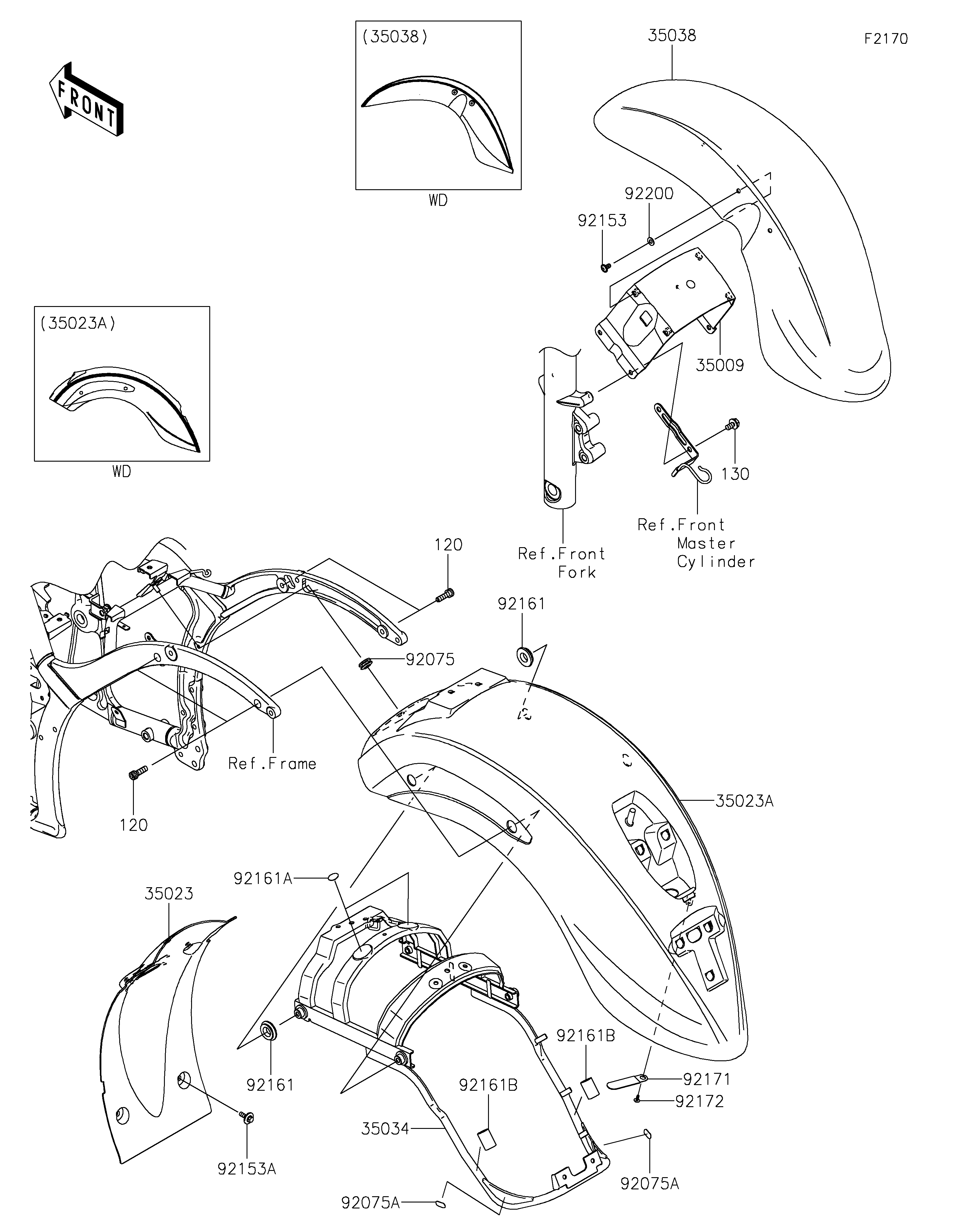

2021 VULCAN® 900 CLASSIC LT - Fenders

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
35009
35023
35023A
35034
35038
92075
92075A
92075A
92153
92153A
92161
92161
92161A
92161B
92161B
92171
92172
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X25 120 120CA0825 4
BOLT-FLANGED,8X14 130 130BB0814 4
BRACE,FRONT FENDER 35009 35009-0014 1
FENDER-REAR,INNER 35023 35023-0073 1
FENDER-REAR,P.M.GRAY+BLK 35023A 35023-5349-27U 1
REINFORCE,REAR FENDER 35034 35034-0090 1
FENDER-FRONT,P.M.GRAY+BLK 35038 35038-5147-27U 1
DAMPER 92075 92075-1067 1
DAMPER 92075A 92075-1841 2
BOLT,SOCKET,6X16 92153 92153-0817 4
BOLT,6X20 92153A 92153-1599 4
DAMPER 92161 92161-0375 2
DAMPER 92161A 92161-0406 2
DAMPER 92161B 92161-0459 2
CLAMP 92171 92171-0181 1
SCREW,TAPPING,4X10 92172 92172-0172 1
WASHER,6.5X14X1 92200 92200-1388 4
