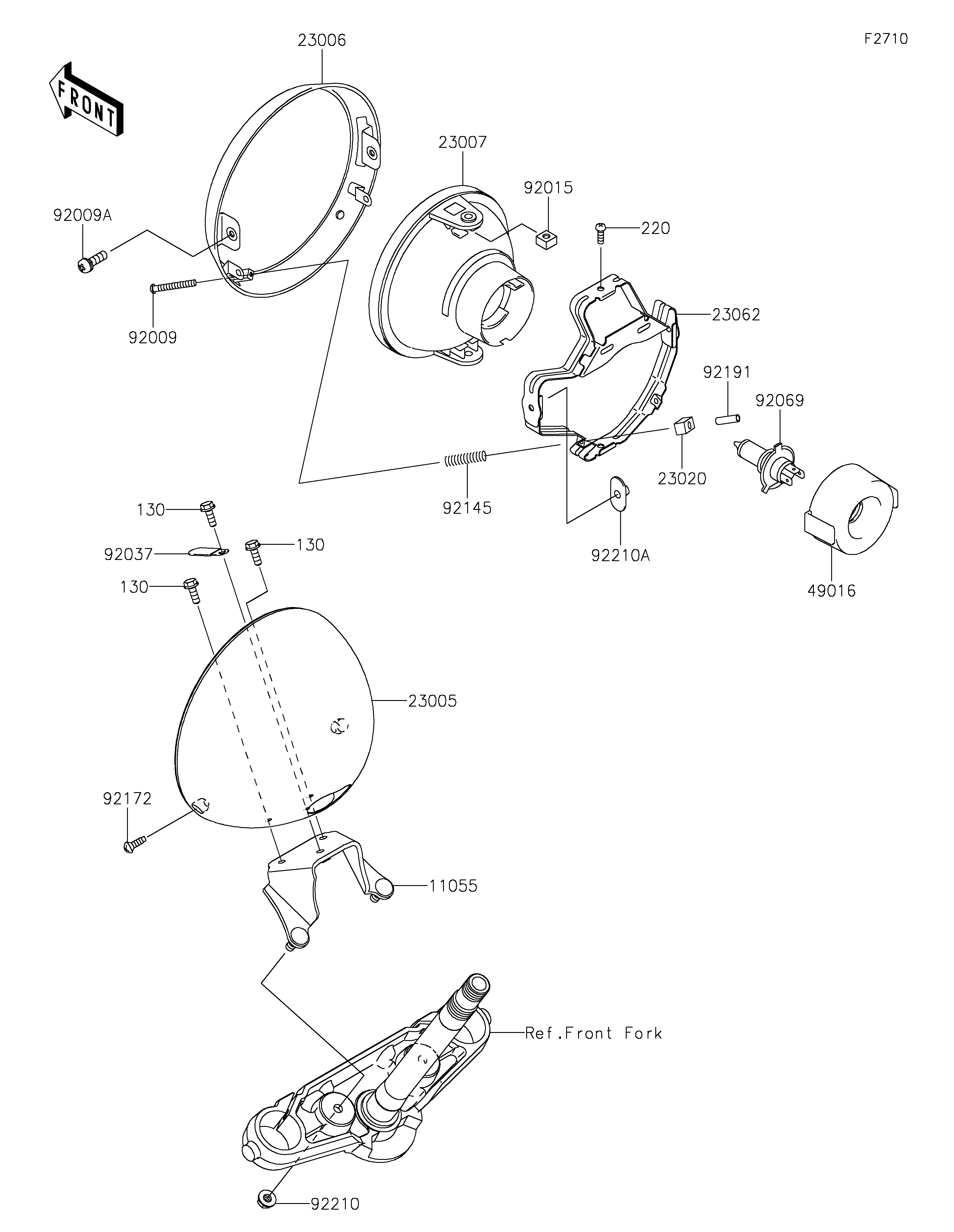

2021 VULCAN® 900 CLASSIC LT - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11055
130
130
130
220
23005
23006
23007
23020
23062
49016
92009
92009A
92015
92037
92069
92145
92172
92191
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP,SILVER 11055 11055-1167-CE 1
BOLT-FLANGED,6X16 130 130BA0616 3
SCREW-PAN-CROS,5X16 220 220AA0516 2
BODY-COMP-HEAD LAMP 23005 23005-0304 1
RIM-LAMP 23006 23006-1081 1
LENS-COMP,HEAD LAMP 23007 23007-1396 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
BRACKET-COMP,HEAD LAMP 23062 23062-1132 1
COVER-SEAL,SOCKET 49016 49016-1203 1
SCREW,FOCUS ADJUST,4X60 92009 92009-1816 2
SCREW,5X16 92009A 92009-1879 2
NUT,5MM 92015 92015-1157 2
CLAMP,L=45 92037 92037-1539 1
BULB,12V 60/55W,H4 92069 92069-0050 1
SPRING,HEAD LAMP LENS 92145 92145-1268 2
SCREW,5X14 92172 92172-0145 2
TUBE,3.5X5.5X19 92191 92191-1217 2
NUT,FLANGED,8MM 92210 92210-0004 2
NUT,SPECIAL,5MM 92210A 92210-1060 2
