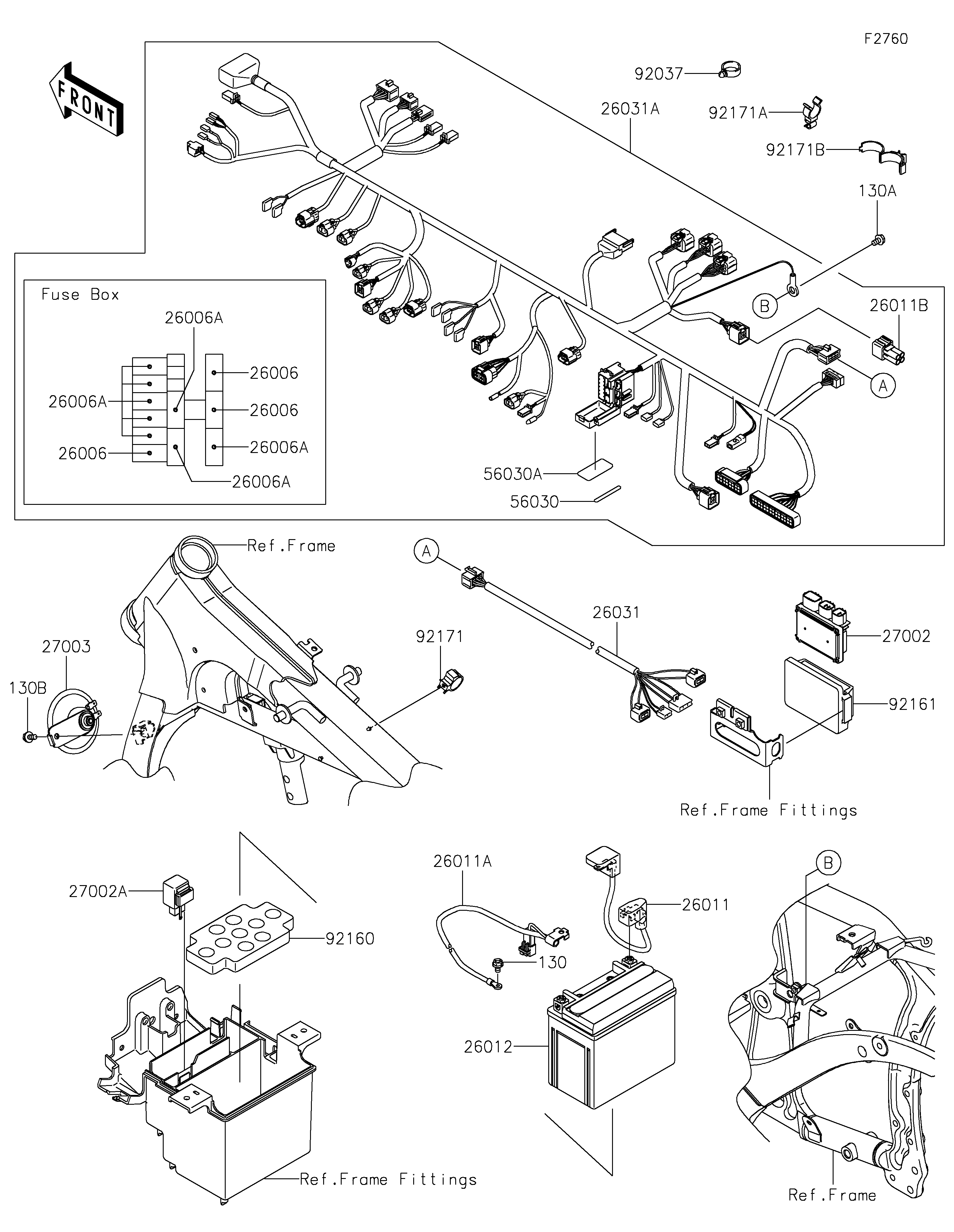

2021 VULCAN® 900 CLASSIC LT - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
26006
26006
26006
26006A
26006A
26006A
26006A
26011
26011A
26011B
26012
26031
26031A
27002
27002A
27003
56030
56030A
92037
92160
92161
92171
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X10 130A 130BB0610 1
BOLT-FLANGED,6X12 130B 130BB0612 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,10A,RED 26006A 26006-1078 8
WIRE-LEAD,BATTERY(+) 26011 26011-0089 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0090 1
WIRE-LEAD,CAP 26011B 26011-0271 1
BATTERY,YTX12-BS,12V 10AH 26012 26012-0094 1
HARNESS,RR 26031 26031-2233 1
HARNESS,MAIN 26031A 26031-2234 1
RELAY-ASSY 27002 27002-0050 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1101 1
HORN 27003 27003-0039 1
LABEL,FUSE BOX 56030 56030-0016 1
LABEL,FUSE BOX 56030A 56030-0046 1
CLAMP,HOSE 92037 92037-1827 1
DAMPER,BATTERY 92160 92160-1635 1
DAMPER,RELAY BOX 92161 92161-0203 1
CLAMP,20MM DIA. 92171 92171-0081 1
CLAMP,CABLE 92171A 92171-0347 1
CLAMP,10MM DIA. 92171B 92171-1423 1
