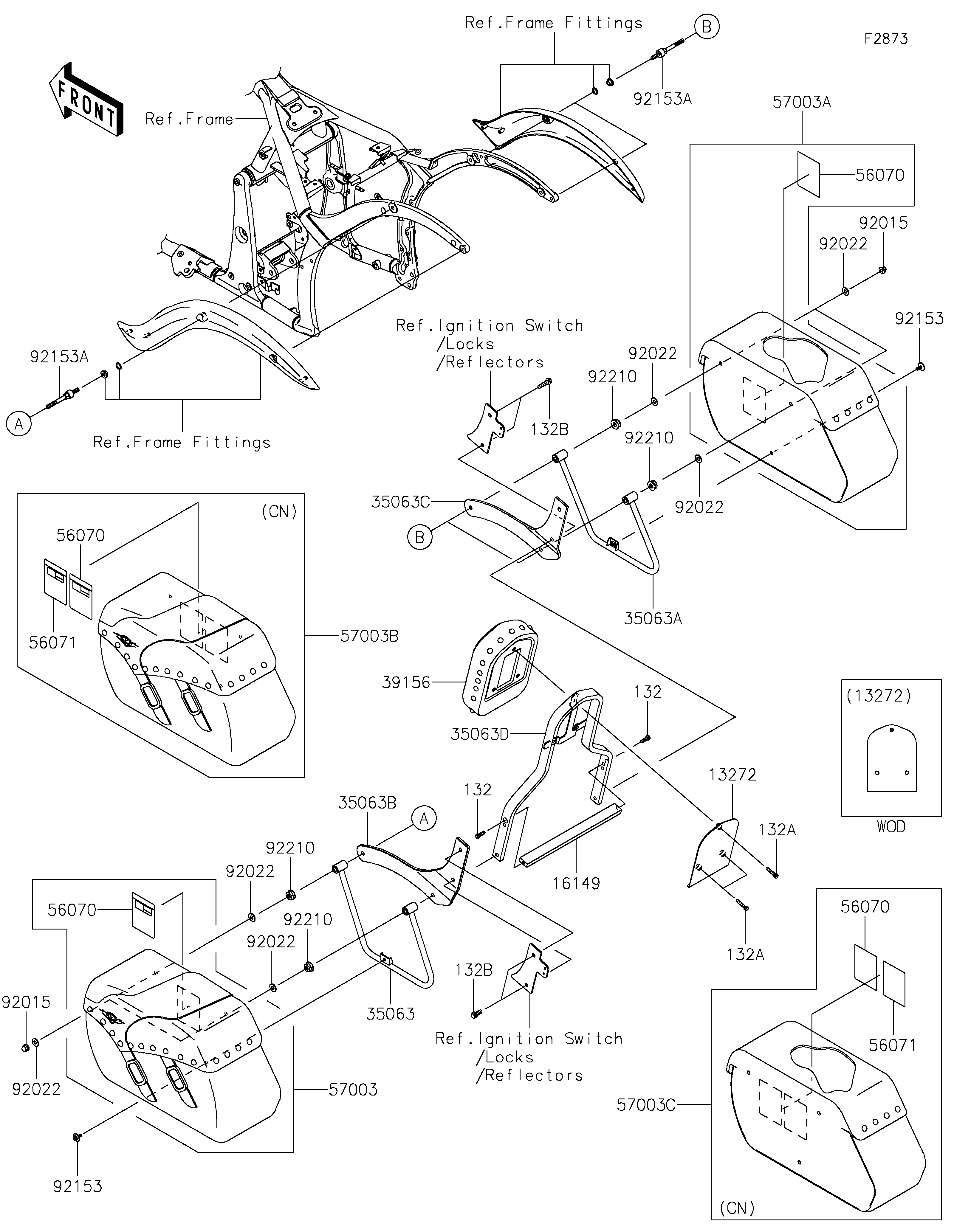

2021 VULCAN® 900 CLASSIC LT - Saddlebags
132
132
13272
132A
132A
132B
132B
16149
35063
35063A
35063B
35063C
35063D
39156
56070
56070
56070
56070
92015
92015
92022
92022
92022
92022
92022
92022
92153
92153
92153A
92153A
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X20 | 132 | 132BB0620 | 2 | ||
| PLATE | 13272 | 13272-0841 | 1 | ||
| BOLT-FLANGED-SMALL,6X30 | 132A | 132E0630 | 3 | ||
| BOLT-FLANGED-SMALL,8X20 | 132B | 132E0820 | 4 | ||
| BAR | 16149 | 16149-0032 | 1 | ||
| STAY,SIDE BAG,LH | 35063 | 35063-0264 | 1 | ||
| STAY,SIDE BAG,RH | 35063A | 35063-0266 | 1 | ||
| STAY,BACKREST,LH | 35063B | 35063-0349 | 1 | ||
| STAY,BACKREST,RH | 35063C | 35063-0350 | 1 | ||
| STAY,BACKREST | 35063D | 35063-0691 | 1 | ||
| PAD,SISSY BAR,BLACK | 39156 | 39156-0559-MA | 1 | ||
| LABEL-WARNING,SADDLEBAG | 56070 | 56070-0076 | 2 | ||
| NUT,CAP,LOCK,8MM,BLACK | 92015 | 92015-1209 | 4 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 8 | ||
| BOLT,6X16 | 92153 | 92153-0684 | 2 | ||
| BOLT | 92153A | 92153-1544 | 4 | ||
| NUT,FLANGED,8MM | 92210 | 92210-0555 | 4 |
