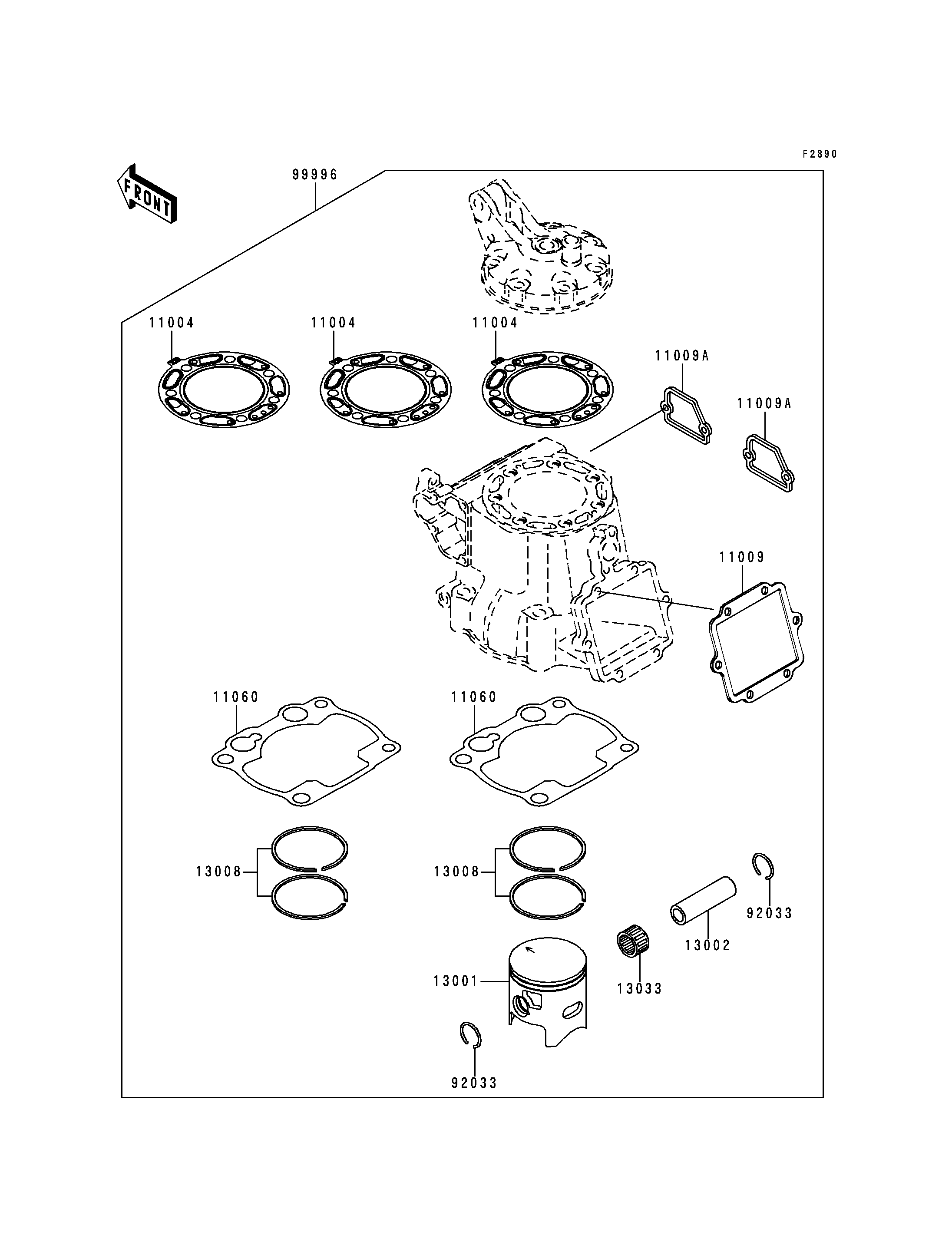

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD,T=0.26 11004 11004-1240 3
GASKET,REED VALVE 11009 11009-1950 1
GASKET,GOVERNOR COVER 11009A 11009-1960 2
GASKET,CYLINDER BASE 11060 11060-1493 2
PISTON-ENGINE 13001 13001-1550 1
PIN-PISTON 13002 13002-1098 1
RING-SET-PISTON 13008 13008-1173 2
BEARING-NEEDLE,KBK18X22X23.8X 13033 13033-1010 1
RING-SNAP,PISTON PIN 92033 92033-1267 2
KIT,ENGINE TOP END,KX250-L1 99996 99996-1282 1
