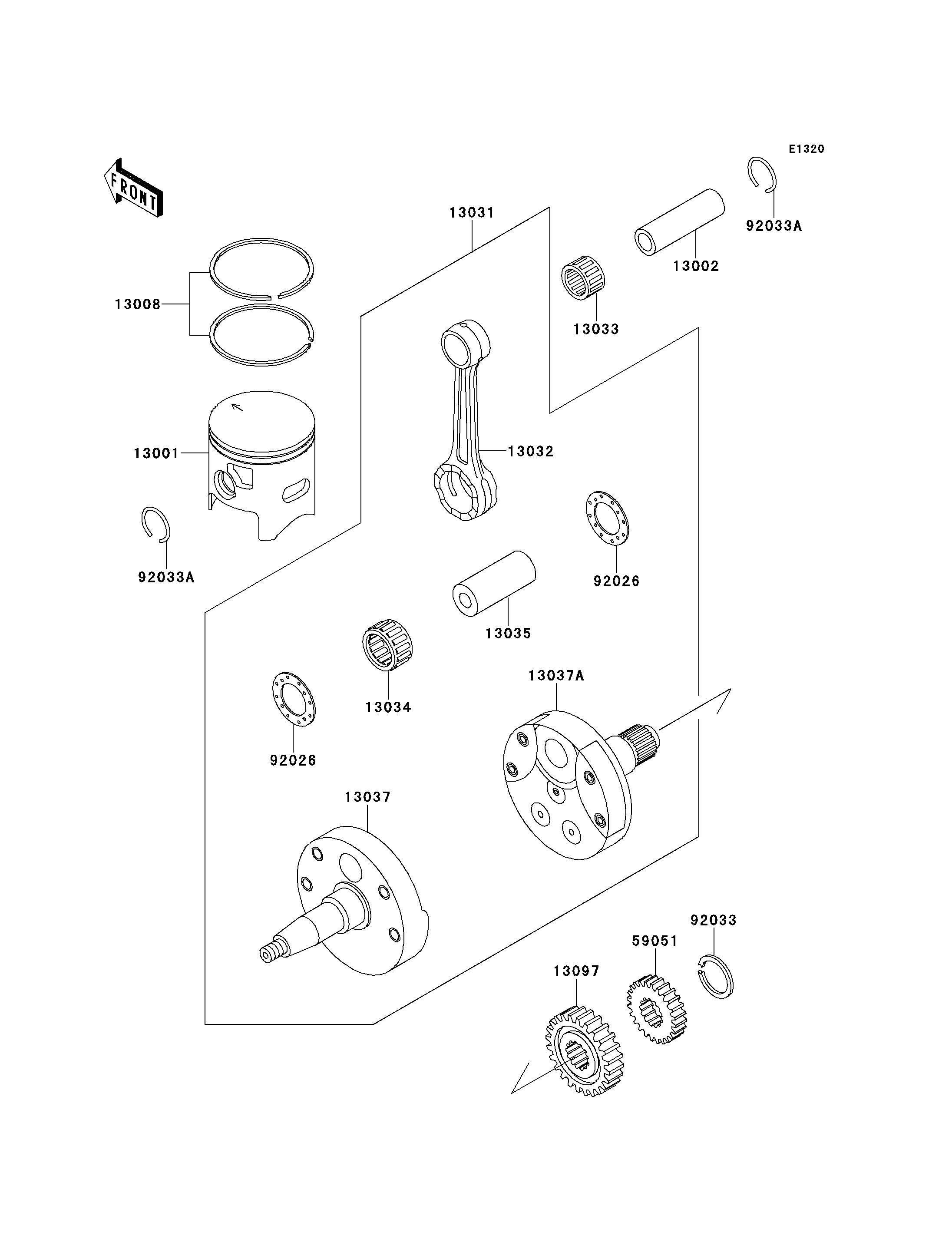

Parts Diagrams |
13001
13002
13008
13031
13032
13033
13034
13035
13037
13037A
13097
59051
92026
92026
92033
92033A
92033A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE | 13001 | 13001-1582 | 1 | ||
| PIN-PISTON | 13002 | 13002-1098 | 1 | ||
| RING-SET-PISTON | 13008 | 13008-1173 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-1482 | 1 | ||
| ROD-CONNECTING | 13032 | 13032-1263 | 1 | ||
| BEARING-NEEDLE,KBK18X22X23.8X | 13033 | 13033-1010 | 1 | ||
| BEARING-BIG END,B4 | 13034 | 13034-1108 | 1 | ||
| PIN-CRANK | 13035 | 13035-1089 | 1 | ||
| CRANKSHAFT,LH | 13037 | 13037-1611 | 1 | ||
| CRANKSHAFT,RH | 13037A | 13037-1613 | 1 | ||
| GEAR-PRIMARY SPUR,20T | 13097 | 13097-1402 | 1 | ||
| GEAR-SPUR,27T | 59051 | 59051-1248 | 1 | ||
| SPACER | 92026 | 92026-1547 | 2 | ||
| RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 1 | ||
| RING-SNAP,PISTON PIN | 92033A | 92033-1267 | 2 |
