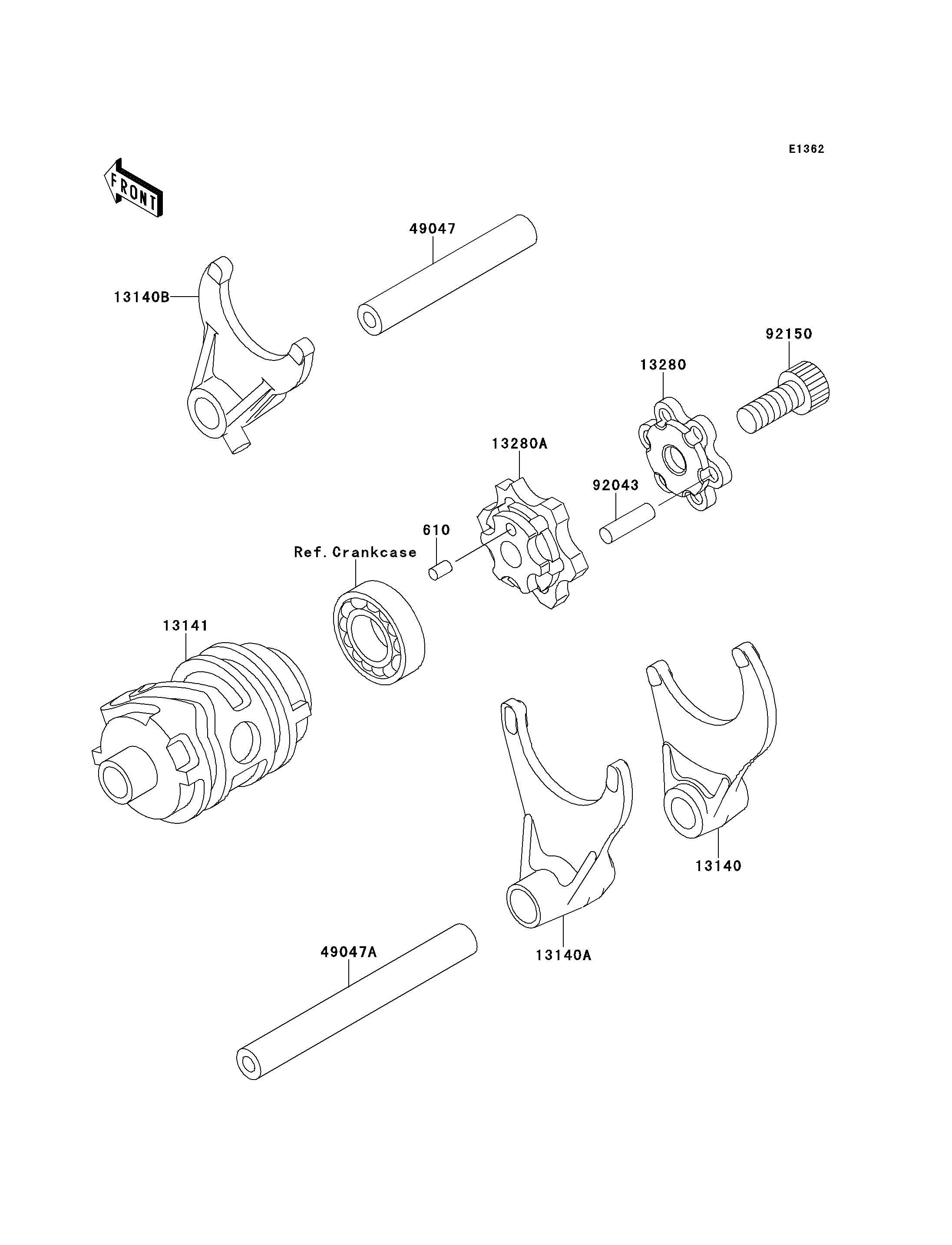

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X8 610 610A0408 1
FORK-SHIFT,LOW 13140 13140-1248 1
FORK-SHIFT,2ND&3RD 13140A 13140-1249 1
FORK-SHIFT,4TH&TOP 13140B 13140-1250 1
DRUM-CHANGE 13141 13141-1200 1
HOLDER 13280 13280-1182 1
HOLDER 13280A 13280-1223 1
ROD-SHIFT,L=64.5 49047 49047-1107 1
ROD-SHIFT,L=90 49047A 49047-1108 1
PIN,17.9X5.0 92043 92043-1444 6
BOLT,SOCKET,8X30 92150 92150-1604 1
