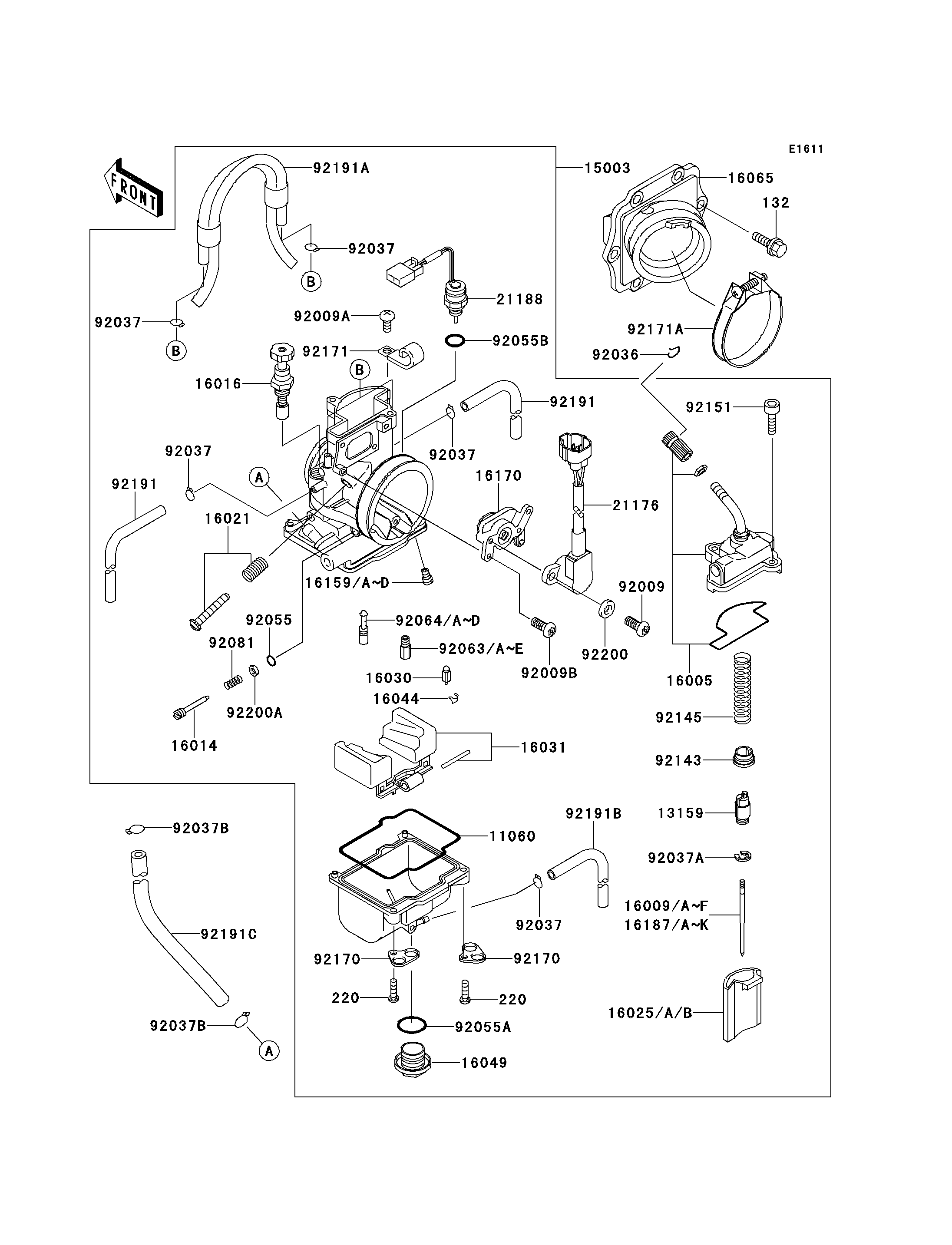

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FLOAT CHAMBER | 11060 | 11060-1254 | 1 | ||
CONNECTOR,THROTTLE CABLE | 13159 | 13159-1063 | 1 | ||
CARBURETOR-ASSY | 15003 | 15003-1597 | 1 | ||
TOP-CHAMBER | 16005 | 16005-1083 | 1 | ||
NEEDLE-JET,N3WD | 16009 | 16009-1914 | 1 | (OPTION) | |
NEEDLE-JET,N3WF | 16009A | 16009-1916 | 1 | (OPTION) | |
NEEDLE-JET,N3WG | 16009B | 16009-1917 | 1 | (OPTION) | |
NEEDLE-JET,N3YD | 16009C | 16009-1919 | 1 | (OPTION) | |
NEEDLE-JET,N3YE | 16009D | 16009-1920 | 1 | (OPTION) | |
NEEDLE-JET,N3YF | 16009E | 16009-1921 | 1 | (OPTION) | |
NEEDLE-JET,N3YG | 16009F | 16009-1922 | 1 | (OPTION) | |
SCREW-PILOT AIR | 16014 | 16014-1058 | 1 | ||
PLUNGER | 16016 | 16016-1085 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1198 | 1 | ||
VALVE-THROTTLE,#6 | 16025 | 16025-1215 | 1 | (OPTION) | |
VALVE-THROTTLE,#7 | 16025A | 16025-1216 | 1 | (OPTION) | |
VALVE-THROTTLE,#8 | 16025B | 16025-1217 | 1 | ||
VALVE-FLOAT | 16030 | 16030-1057 | 1 | ||
FLOAT | 16031 | 16031-1100 | 1 | ||
CLAMP,FLOAT VALVE | 16044 | 16044-007 | 1 | ||
COVER-MAIN JET | 16049 | 16049-1051 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1358 | 1 | ||
JET-POWER,#50 | 16159 | 16159-1053 | 1 | (OPTION) | |
JET-POWER,#52 | 16159A | 16159-1055 | 1 | (OPTION) | |
JET-POWER,#48 | 16159B | 16159-1058 | 1 | ||
JET-POWER,#42 | 16159C | 16159-1059 | 1 | (OPTION) | |
JET-POWER,#45 | 16159D | 16159-1060 | 1 | (OPTION) | |
LINK-ASSY | 16170 | 16170-1056 | 1 | ||
NEEDLE-JET,N3WC | 16187 | 16187-1122 | 1 | (OPTION) | |
NEEDLE-JET,N3YC | 16187A | 16187-1123 | 1 | (OPTION) | |
NEEDLE-JET,NALD | 16187B | 16187-1154 | 1 | (OPTION) | |
NEEDLE-JET,NALE | 16187C | 16187-1155 | 1 | (OPTION) | |
NEEDLE-JET,NALF | 16187D | 16187-1156 | 1 | (OPTION) | |
NEEDLE-JET,NALG | 16187E | 16187-1157 | 1 | (OPTION) | |
NEEDLE-JET,NALH | 16187F | 16187-1158 | 1 | (OPTION) | |
NEEDLE-JET,NAFD | 16187G | 16187-1159 | 1 | (OPTION) | |
NEEDLE-JET,NAFE | 16187H | 16187-1160 | 1 | (OPTION) | |
NEEDLE-JET,NAFF | 16187I | 16187-1161 | 1 | ||
NEEDLE-JET,NAFG | 16187J | 16187-1162 | 1 | (OPTION) | |
NEEDLE-JET,NAFH | 16187K | 16187-1163 | 1 | (OPTION) | |
SENSOR | 21176 | 21176-1089 | 1 | ||
SOLENOID | 21188 | 21188-1005 | 1 | ||
SCREW | 92009 | 92009-1781 | 2 | ||
SCREW,CLAMP | 92009A | 92009-1833 | 1 | ||
SCREW | 92009B | 92009-1889 | 2 | ||
RING-SNAP | 92036 | 92036-018 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1396 | 5 | ||
CLAMP,JET NEEDLE | 92037A | 92037-1401 | 1 | ||
CLAMP,TUBE | 92037B | 92037-147 | 2 | ||
RING-O,PILOT ADJUST | 92055 | 92055-1002 | 1 | ||
RING-O,MAIN JET COVER | 92055A | 92055-1167 | 1 | ||
RING-O | 92055B | 92055-1580 | 1 | ||
JET-MAIN,#155 | 92063 | 92063-1366 | 1 | (OPTION) | |
JET-MAIN,#158 | 92063A | 92063-1367 | 1 | (OPTION) | |
JET-MAIN,#160 | 92063B | 92063-1368 | 1 | ||
JET-MAIN,#162 | 92063C | 92063-1369 | 1 | (OPTION) | |
JET-MAIN,#165 | 92063D | 92063-1370 | 1 | (OPTION) | |
BOLT-FLANGED-SMALL | 132 | 132G0620 | 6 | ||
SCREW-PAN-CROS | 220 | 220D0414 | 4 | ||
JET-MAIN,#170 | 92063E | 92063-1372 | 1 | (OPTION) | |
JET-PILOT,#52 | 92064 | 92064-1130 | 1 | ||
JET-PILOT,#48 | 92064A | 92064-1143 | 1 | (OPTION) | |
JET-PILOT,#50 | 92064B | 92064-1144 | 1 | (OPTION) | |
JET-PILOT,#55 | 92064C | 92064-1145 | 1 | (OPTION) | |
JET-PILOT,#58 | 92064D | 92064-1146 | 1 | (OPTION) | |
SPRING,ADJUST SCREW | 92081 | 92081-1555 | 1 | ||
COLLAR,THROTTLE VALVE | 92143 | 92143-1201 | 1 | ||
SPRING,THROTTLE VALVE | 92145 | 92145-1242 | 1 | ||
BOLT | 92151 | 92151-1507 | 2 | ||
CLAMP | 92170 | 92170-1582 | 2 | ||
CLAMP | 92171 | 92171-1077 | 1 | ||
CLAMP | 92171A | 92171-1105 | 1 | ||
TUBE,4X7X480 | 92191 | 92191-1254 | 2 | ||
TUBE,AIR VENT | 92191A | 92191-1255 | 1 | ||
TUBE,3.5X6.5X330 | 92191B | 92191-1256 | 1 | ||
TUBE,5.3X10.5X160 | 92191C | 92191-1332 | 1 | ||
WASHER | 92200 | 92200-1369 | 2 | ||
WASHER | 92200A | 92200-1466 | 1 |
GASKET,FLOAT CHAMBER | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CONNECTOR,THROTTLE CABLE | |
REF # | 13159 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR-ASSY | |
REF # | 15003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TOP-CHAMBER | |
REF # | 16005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NEEDLE-JET,N3WD | |
REF # | 16009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,N3WF | |
REF # | 16009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,N3WG | |
REF # | 16009B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,N3YD | |
REF # | 16009C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,N3YE | |
REF # | 16009D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,N3YF | |
REF # | 16009E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,N3YG | |
REF # | 16009F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SCREW-PILOT AIR | |
REF # | 16014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUNGER | |
REF # | 16016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-THROTTLE STOP | |
REF # | 16021 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-THROTTLE,#6 | |
REF # | 16025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
VALVE-THROTTLE,#7 | |
REF # | 16025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
VALVE-THROTTLE,#8 | |
REF # | 16025B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-FLOAT | |
REF # | 16030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FLOAT | |
REF # | 16031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,FLOAT VALVE | |
REF # | 16044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-MAIN JET | |
REF # | 16049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CARBURETOR | |
REF # | 16065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JET-POWER,#50 | |
REF # | 16159 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-POWER,#52 | |
REF # | 16159A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-POWER,#48 | |
REF # | 16159B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JET-POWER,#42 | |
REF # | 16159C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-POWER,#45 | |
REF # | 16159D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
LINK-ASSY | |
REF # | 16170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NEEDLE-JET,N3WC | |
REF # | 16187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,N3YC | |
REF # | 16187A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NALD | |
REF # | 16187B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NALE | |
REF # | 16187C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NALF | |
REF # | 16187D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NALG | |
REF # | 16187E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NALH | |
REF # | 16187F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NAFD | |
REF # | 16187G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NAFE | |
REF # | 16187H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NAFF | |
REF # | 16187I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NEEDLE-JET,NAFG | |
REF # | 16187J |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
NEEDLE-JET,NAFH | |
REF # | 16187K |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SENSOR | |
REF # | 21176 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SOLENOID | |
REF # | 21188 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,CLAMP | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
CLAMP,JET NEEDLE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,PILOT ADJUST | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,MAIN JET COVER | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JET-MAIN,#155 | |
REF # | 92063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-MAIN,#158 | |
REF # | 92063A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-MAIN,#160 | |
REF # | 92063B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JET-MAIN,#162 | |
REF # | 92063C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-MAIN,#165 | |
REF # | 92063D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JET-MAIN,#170 | |
REF # | 92063E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-PILOT,#52 | |
REF # | 92064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JET-PILOT,#48 | |
REF # | 92064A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-PILOT,#50 | |
REF # | 92064B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-PILOT,#55 | |
REF # | 92064C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
JET-PILOT,#58 | |
REF # | 92064D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
SPRING,ADJUST SCREW | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,THROTTLE VALVE | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,THROTTLE VALVE | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,4X7X480 | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,AIR VENT | |
REF # | 92191A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,3.5X6.5X330 | |
REF # | 92191B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,5.3X10.5X160 | |
REF # | 92191C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
