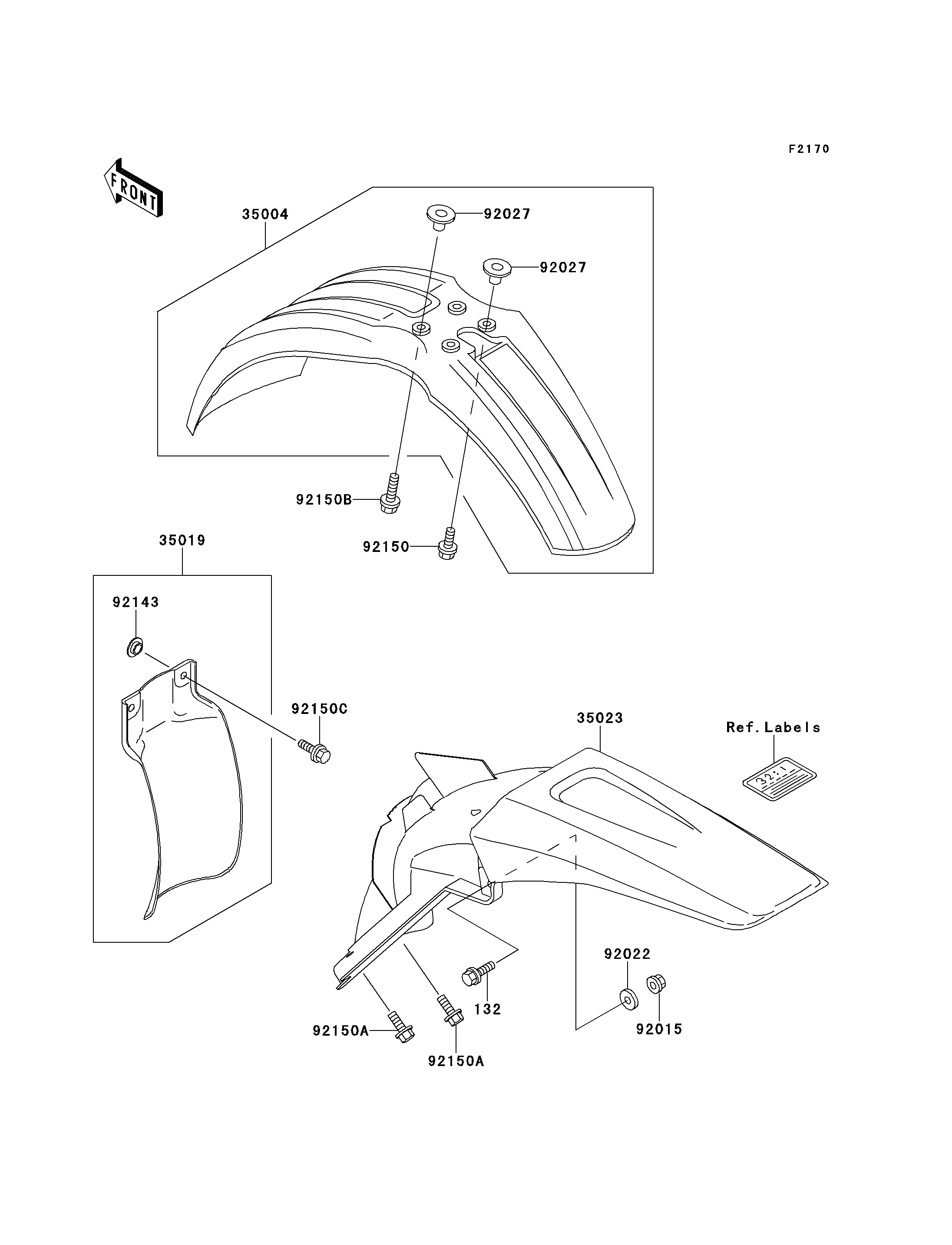

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0620 1
FENDER-FRONT,L.GREEN 35004 35004-1318-6W 1
FLAP,AIR FILTER,WHITE 35019 35019-1252-RZ 1
FENDER-REAR,L.GREEN 35023 35023-1511-6W 1
NUT,FLANGED,6MM 92015 92015-1078 1
WASHER,6.5X22X1.6 92022 92022-237 1
COLLAR 92027 92027-1936 4
COLLAR 92143 92143-1196 2
BOLT,6X20 92150 92150-1339 2
BOLT,FLANGED,6X22 92150A 92150-1481 2
BOLT,FLANGED,6X30 92150B 92150-1486 2
BOLT,FLANGED,6X16 92150C 92150-1506 2
