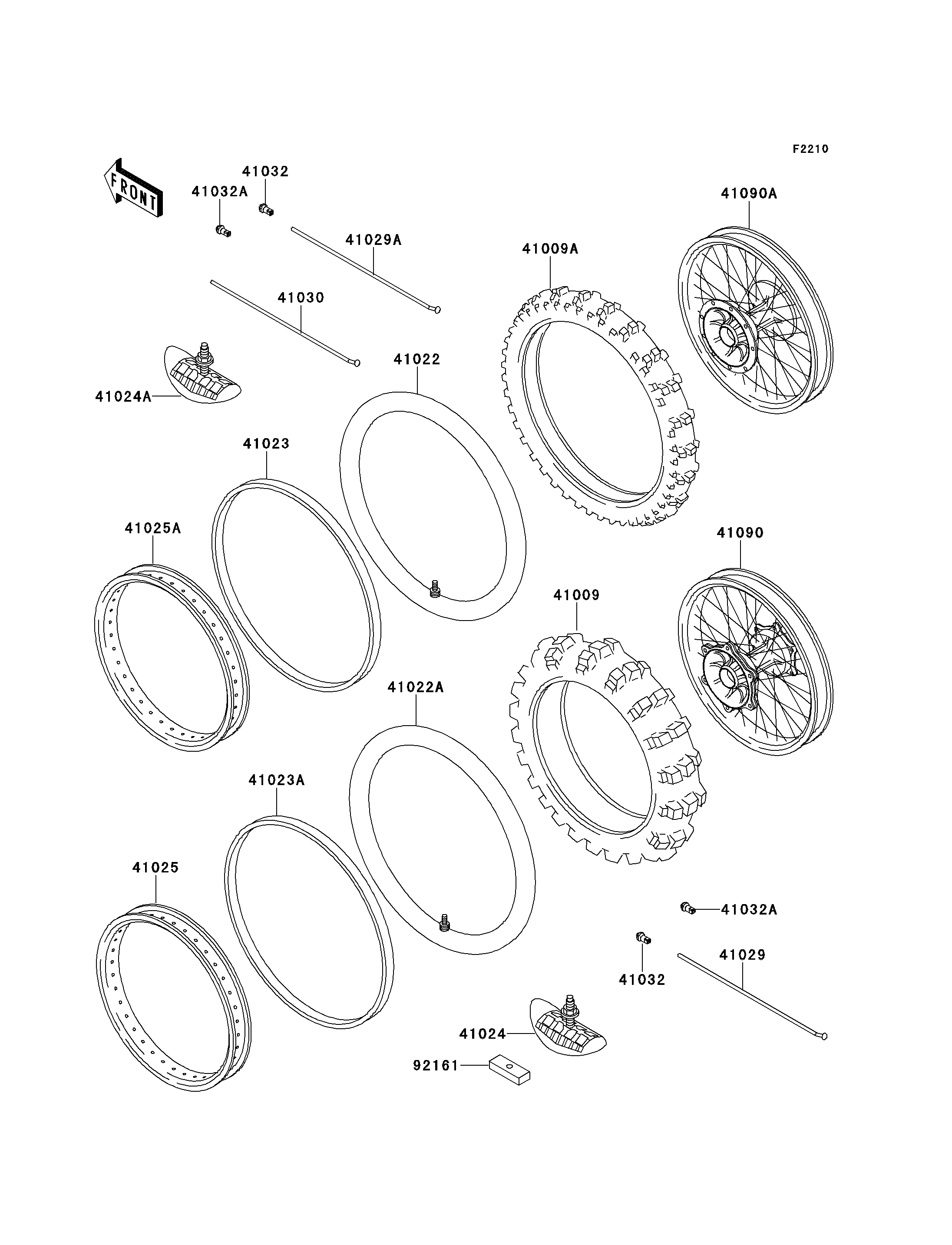

2001 KX250 - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41024
41024A
41025
41025A
41029
41029A
41030
41032
41032
41032A
41032A
41090
41090A
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,RR,110/90-19 62M,M78(BS) 41009 41009-1128 1
TIRE,FR,80/100-21 51M,M77(BS) 41009A 41009-1171 1
TUBE-TIRE,MC90/90-21(BS) 41022 41022-1107 1
TUBE-TIRE,110/90-19(BS) 41022A 41022-1140 1
BAND-RIM,X-21(BS) 41023 41023-1009 1
BAND-RIM,110/90-19(BS) 41023A 41023-1081 1
STOPPER-RIM,2.15-M(DUNLOP) 41024 41024-009 1
STOPPER-RIM,1.60-M(DUNLOP) 41024A 41024-010 1
RIM,RR,2.15X19 41025 41025-1373 1
RIM,FR,1.60X21 41025A 41025-1377 1
SPOKE-INNER,RR,202MMX160D 41029 41029-1204 36
SPOKE-INNER,FR,230MMX165D 41029A 41029-1295 27
SPOKE-OUTER,FR,231.5MMX170D 41030 41030-1165 9
NIPPLE-SPOKE,STEEL 41032 41032-1085 72 (OPTION)
NIPPLE-SPOKE,ALUMINIUM 41032A 41032-1086 72
WHEEL,RR,2.15X19,ALUM NIPPLE 41090 41090-1138 1 (OPTION)
WHEEL,FR,1.60X21,ALUM NIPPLE 41090A 41090-1144 1 (OPTION)
DAMPER,RIM STOPPER 92161 92161-1184 1
