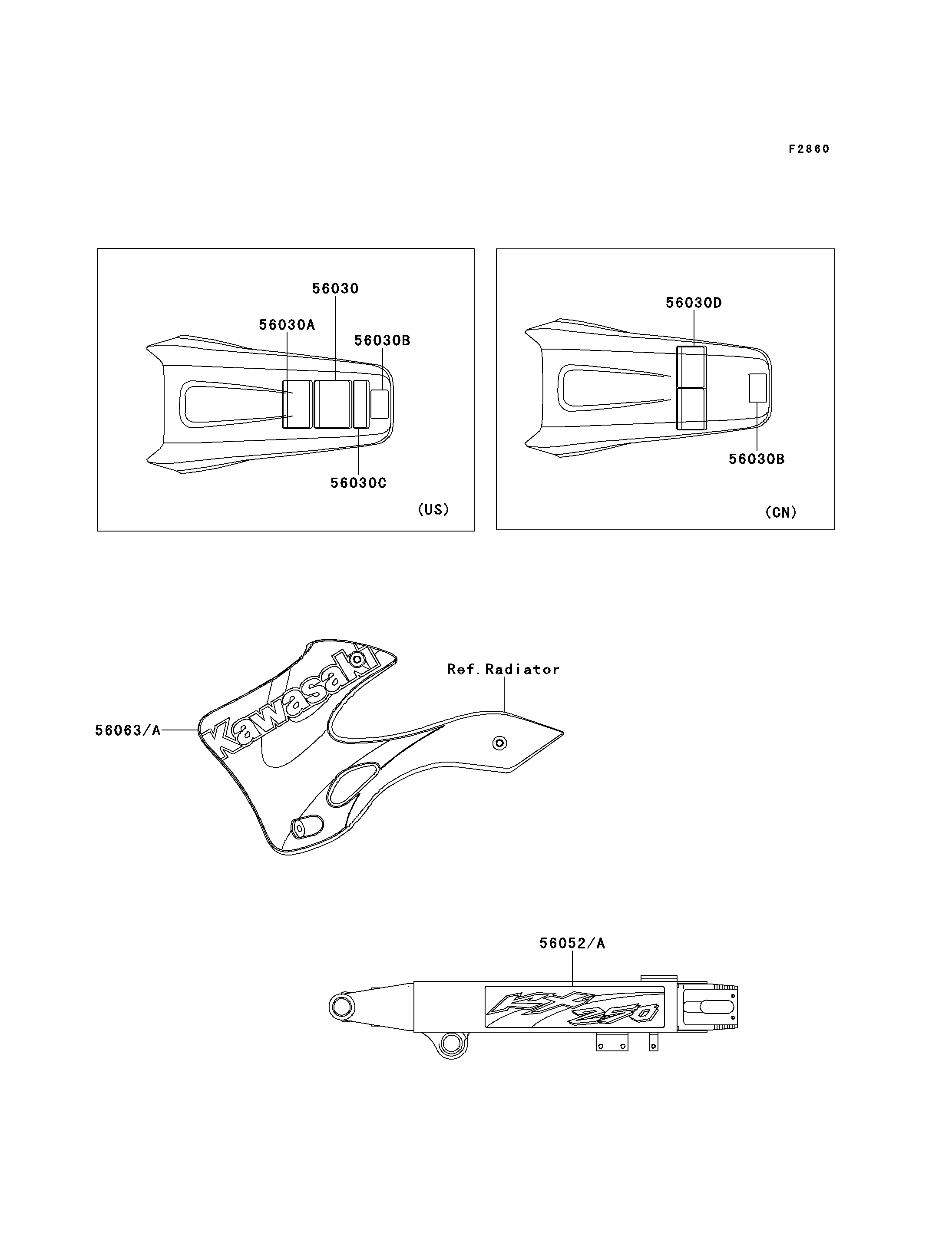

56030B
56030B
56052
56052A
56063
56063A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,32:1 56030B 56030-1230 1
MARK,SWING ARM,LH,KX250 56052 56052-1264 1
MARK,SWING ARM,RH,KX250 56052A 56052-1265 1
PATTERN,SHROUD,LH 56063 56063-1739 1
PATTERN,SHROUD,RH 56063A 56063-1740 1
LABEL,IMPORTANT NOTICE 56030 56030-1228 1 US
LABEL,DISCLAIMER 56030A 56030-1229 1 US
LABEL,NOISE EMISSION 56030C 56030-1231 1 US
LABEL,DISCLAIMER 56030D 56030-1233 1 CN
