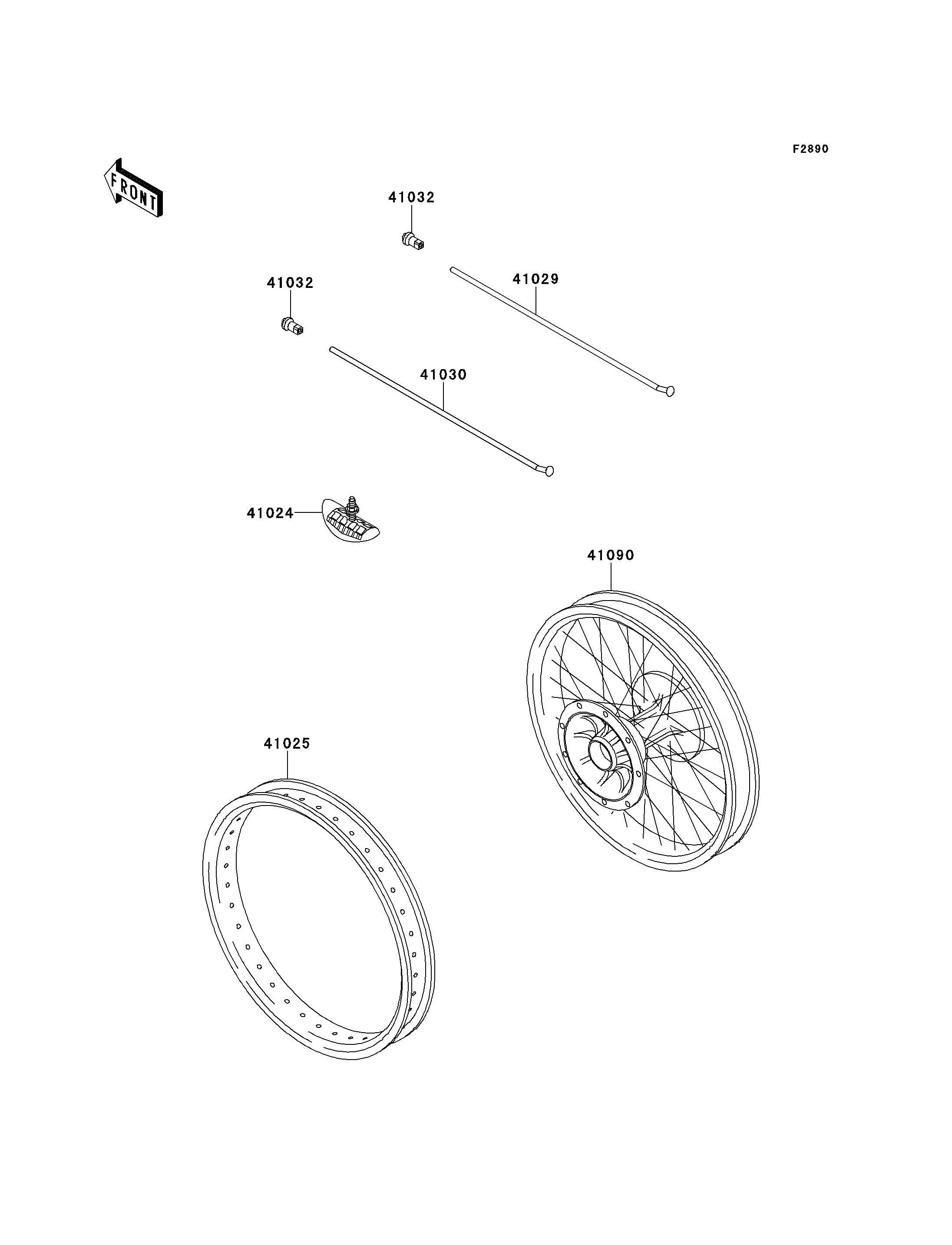

41024
41025
41029
41030
41032
41032
41090
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER-RIM,1.85-M(DUNLOP) 41024 41024-011 1
RIM,FR,1.85X20 41025 41025-1411 1
SPOKE-INNER,FR,216MMX165D 41029 41029-1316 27
SPOKE-OUTER,FR,217.5MMX170D 41030 41030-1172 9
NIPPLE-SPOKE,ALUMINIUM 41032 41032-1086 36
WHEEL,FR,1.85X20,ALUM NIPPLE 41090 41090-1134 1
