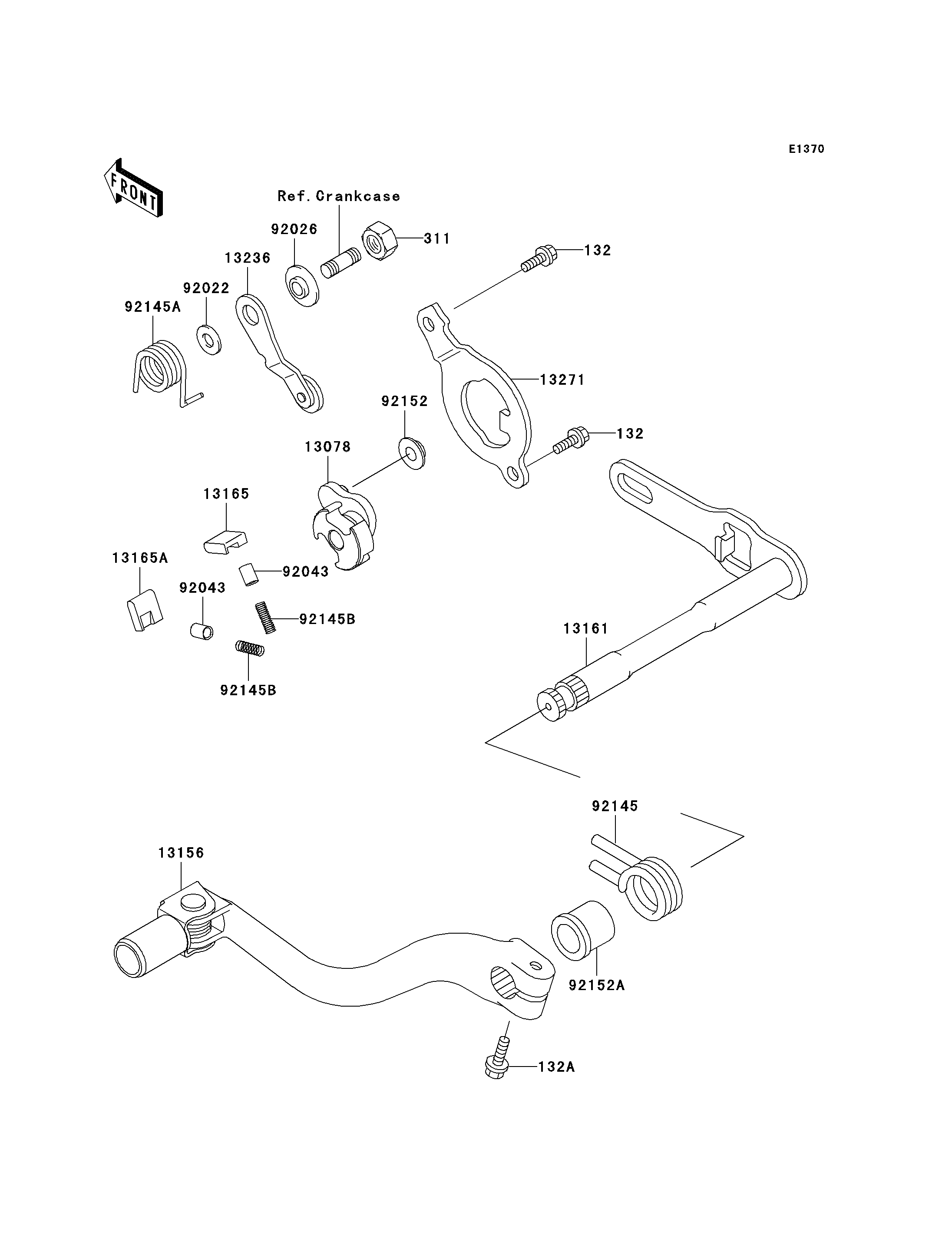

2003 KX250 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
311
13078
13156
13161
13165
13165A
13236
13271
92022
92026
92043
92043
92145
92145A
92145B
92145B
92152
92152A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0614 2
BOLT-FLANGED-SMALL 132A 132G0625 1
NUT-HEX,6MM 311 311G0600 1
RATCHET 13078 13078-1070 1
LEVER-CHANGE,PEDAL 13156 13156-1492 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1285 1
PAWL 13165 13165-1162 1
PAWL 13165A 13165-1163 1
LEVER-COMP 13236 13236-1391 1
PLATE 13271 13271-1968 1
WASHER,6X12.8X1.2 92022 92022-1827 1
SPACER 92026 92026-1217 1
PIN,PLUNGER 92043 92043-1676 2
SPRING,RETURN 92145 92145-1488 1
SPRING,POSITION 92145A 92145-1489 1
SPRING 92145B 92145-1490 2
COLLAR 92152 92152-1414 1
COLLAR,SPRING SUPPORT 92152A 92152-1417 1
