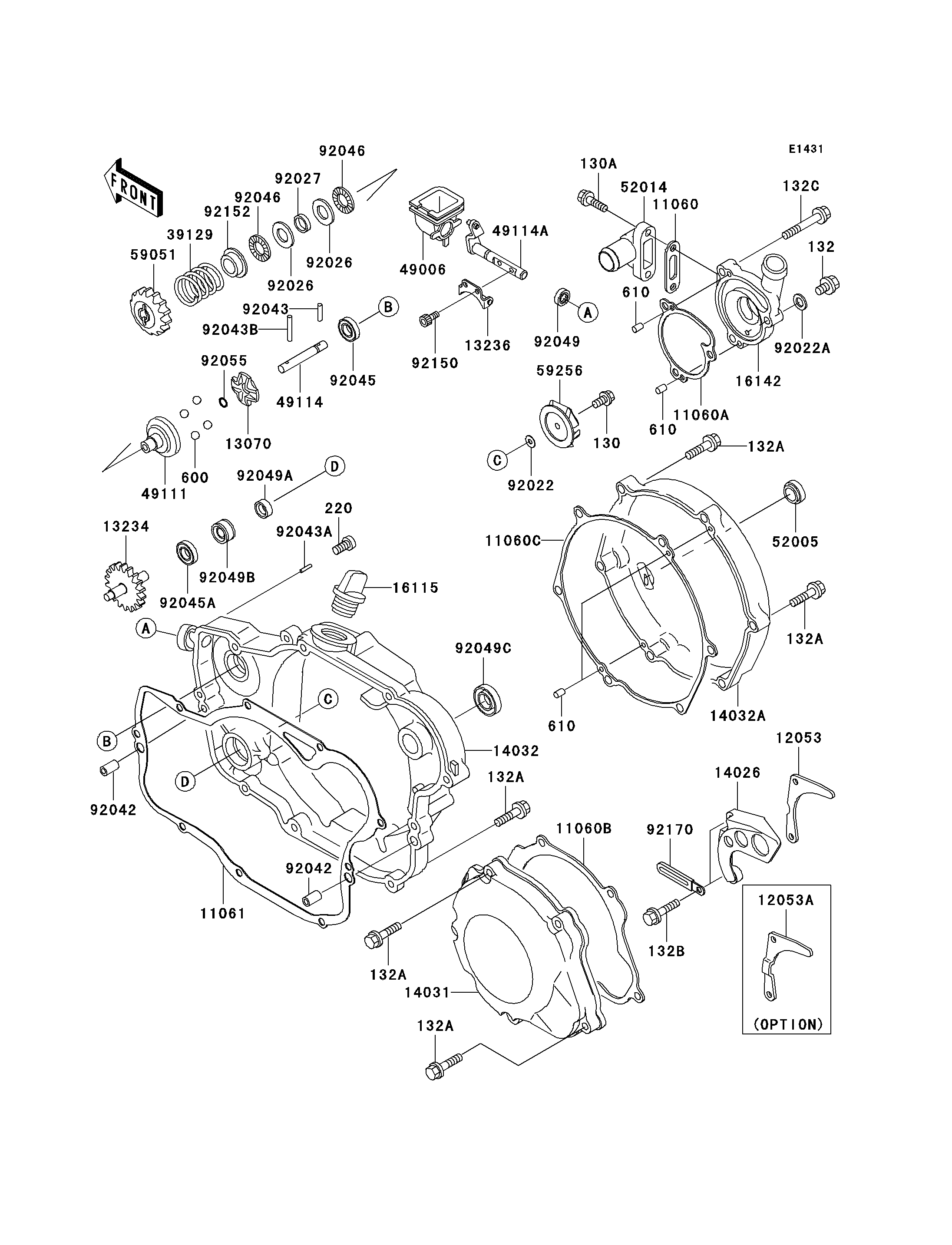

2003 KX250 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
11061
11061
12053
12053
12053A
12053A
13070
13070
13234
13234
13236
13236
14026
14026
14031
14031
14032
14032
14032A
14032A
16115
16115
16142
16142
39129
39129
49006
49006
49111
49111
49114
49114
49114A
49114A
52005
52005
52014
52014
59051
59051
59256
59256
92022
92022
92022A
92022A
92026
92026
92026
92026
92027
92027
92042
92042
92042
92042
92043
92043
92043A
92043A
92043B
92043B
92045
92045
92045A
92045A
92046
92046
92046
92046
92049
92049
92049A
92049A
92049B
92049B
130
130
130A
130A
132
132
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132B
132B
132C
132C
220
220
600
600
610
610
610
610
610
610
92049C
92049C
92055
92055
92150
92150
92152
92152
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11060 11060-1183 1
GASKET,PUMP COVER 11060A 11060-1184 1
GASKET,GENERATOR COVER 11060B 11060-1352 1
GASKET,CLUTCH COVER,OUT 11060C 11060-1494 1
GASKET,CLUTCH COVER,IN 11061 11061-1058 1
GUIDE-CHAIN 12053 12053-1382 1
GUIDE-CHAIN 12053A 12053-1387 1 (OPTION)
GUIDE 13070 13070-1206 1
SHAFT-COMP 13234 13234-1115 1
LEVER-COMP,GOVERNOR 13236 13236-1266 1
COVER-CHAIN 14026 14026-1174 1
COVER-GENERATOR 14031 14031-1283 1
COVER-CLUTCH,INNER 14032 14032-1526 1
COVER-CLUTCH,OUTER 14032A 14032-1538 1
CAP-OIL FILLER 16115 16115-018 1
COVER-PUMP 16142 16142-1159 1
SPRING-GOVERNOR 39129 39129-0001 1
BOOT 49006 49006-1277 1
HOLDER-GOVERNOR WEIGHT 49111 49111-1065 1
SHAFT-GOVERNOR 49114 49114-1074 1
SHAFT-GOVERNOR 49114A 49114-1097 1
GAUGE,OIL LEVEL 52005 52005-1055 1
ELBOW 52014 52014-1082 1
GEAR-SPUR,GOVERNOR 59051 59051-1399 1
IMPELLER 59256 59256-1065 1
WASHER,5.2X13X1 92022 92022-1380 1
WASHER,6.2X11X1 92022A 92022-304 1
SPACER,T=2.0 92026 92026-1501 2
COLLAR,15.2X17X4 92027 92027-1839 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,3X12.8 92043 92043-1256 1
PIN,2X9.8 92043A 92043-1293 1
PIN,3X19.8 92043B 92043-1319 1
BEARING-BALL,#628 92045 92045-1123 1
BEARING-BALL,608MC3 92045A 92045-1305 1
BEARING-NEEDLE 92046 92046-1252 2
SEAL-OIL,SDO8144 92049 92049-1207 1
SEAL-OIL,MH8X18X3.5-A 92049A 92049-1359 1
SEAL-OIL,MHSD8X18X10J-1 92049B 92049-1366 1
BOLT-FLANGED 130 130P0514 1
BOLT-FLANGED 130A 130P0520 2
BOLT-FLANGED-SMALL 132 132G0608 1
BOLT-FLANGED-SMALL 132A 132G0625 21
BOLT-FLANGED-SMALL 132B 132G0630 2
BOLT-FLANGED-SMALL 132C 132G0665 1
SCREW-PAN-CROS 220 220B0306 1
BALL-STEEL,3/8" 600 600A1200 4
ROLLER,4X8 610 610A0408 4
SEAL-OIL,A80984H0 KICK SHAFT 92049C 92049-1594 1
RING-O,5.5X1.5 92055 92055-1343 1
BOLT,SOCKET,4X8 92150 92150-1888 2
COLLAR 92152 92152-0007 1
CLAMP 92170 92170-1514 2
