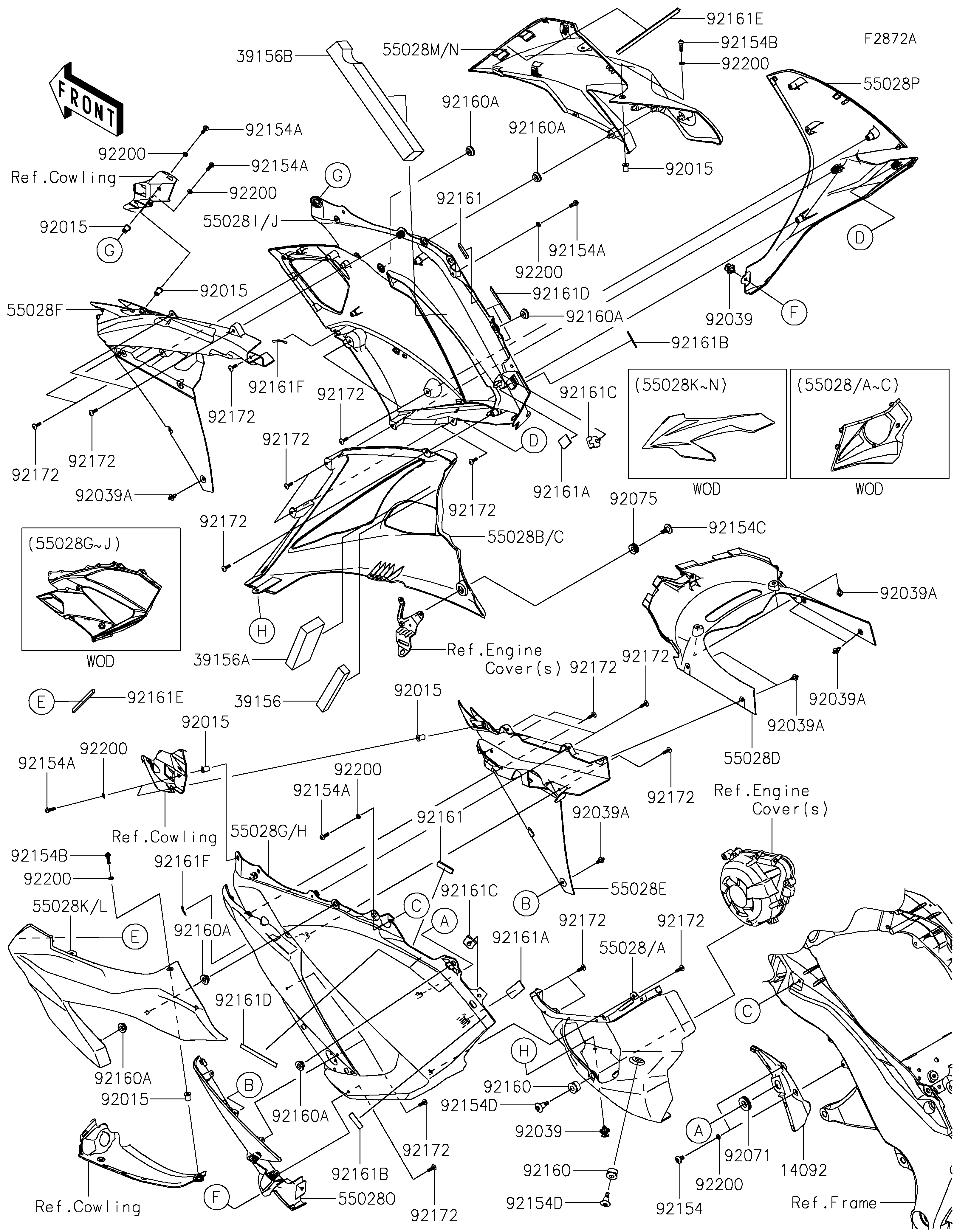

2019 NINJA® 1000 ABS - Cowling Lowers(WKF)
14092
14092
39156
39156
39156A
39156A
39156B
39156B
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55028D
55028D
55028E
55028E
55028F
55028F
55028G
55028G
55028H
55028H
55028I
55028I
55028J
55028J
55028K
55028K
55028L
55028L
55028M
55028M
55028N
55028N
55028O
55028O
55028P
55028P
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92071
92071
92075
92075
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92160
92160
92160
92160
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92161C
92161C
92161D
92161D
92161D
92161D
92161E
92161E
92161E
92161E
92161F
92161F
92161F
92161F
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,LH | 14092 | 14092-0250 | 1 | ||
| PAD,20X140X15 | 39156 | 39156-0736 | 1 | ||
| PAD,20X120X50 | 39156A | 39156-2225 | 1 | ||
| PAD,50X280X30 | 39156B | 39156-2226 | 1 | ||
| COWLING,LWR,LH,M.M.C.GRAY | 55028 | 55028-0346-51B | 1 | ||
| COWLING,LWR,LH,M.M.G.GRAY | 55028A | 55028-0346-53U | 1 | ||
| COWLING,LWR,RH,M.M.C.GRAY | 55028B | 55028-0347-51B | 1 | ||
| COWLING,LWR,RH,M.M.G.GRAY | 55028C | 55028-0347-53U | 1 | ||
| COWLING,FR | 55028D | 55028-0612 | 1 | ||
| COWLING,INNER,LH | 55028E | 55028-0613 | 1 | ||
| COWLING,INNER,RH | 55028F | 55028-0614 | 1 | ||
| COWLING,SIDE,LH,E.B.GREEN | 55028G | 55028-0615-60R | 1 | ||
| COWLING,SIDE,LH,M.S.BLACK | 55028H | 55028-0615-660 | 1 | ||
| COWLING,SIDE,RH,E.B.GREEN | 55028I | 55028-0616-60R | 1 | ||
| COWLING,SIDE,RH,M.S.BLACK | 55028J | 55028-0616-660 | 1 | ||
| COWLING,UPP,SIDE,LH,M.M.C.GRAY | 55028K | 55028-0617-51B | 1 | ||
| COWLING,UPP,SIDE,LH,M.M.G.GRAY | 55028L | 55028-0617-53U | 1 | ||
| COWLING,UPP,SIDE,RH,M.M.C.GRAY | 55028M | 55028-0618-51B | 1 | ||
| COWLING,UPP,SIDE,RH,M.M.G.GRAY | 55028N | 55028-0618-53U | 1 | ||
| COWLING,SLAT,LH | 55028O | 55028-0619 | 1 | ||
| COWLING,SLAT,RH | 55028P | 55028-0620 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 6 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 2 | ||
| RIVET | 92039A | 92039-0068 | 8 | ||
| GROMMET | 92071 | 92071-1043 | 1 | ||
| DAMPER | 92075 | 92075-1634 | 1 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0026 | 2 | ||
| BOLT,SOCKET,5X16 | 92154A | 92154-0209 | 6 | ||
| BOLT,SOCKET,5X20 | 92154B | 92154-0919 | 2 | ||
| BOLT,SOCKET,6X18 | 92154C | 92154-2316 | 1 | ||
| BOLT,SOCKET,6X24 | 92154D | 92154-2317 | 2 | ||
| DAMPER | 92160 | 92160-1141 | 2 | ||
| DAMPER | 92160A | 92160-1613 | 6 | ||
| DAMPER,10X35X4 | 92161 | 92161-1887 | 2 | ||
| DAMPER,20X46X1.5 | 92161A | 92161-1888 | 2 | ||
| DAMPER,10X35X1 | 92161B | 92161-1889 | 2 | ||
| DAMPER,HOOK | 92161C | 92161-1891 | 2 | ||
| DAMPER,10X85X1 | 92161D | 92161-1964 | 4 | ||
| DAMPER,7X190X4 | 92161E | 92161-1966 | 2 | ||
| DAMPER,3X30X2 | 92161F | 92161-2141 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0238 | 22 | ||
| WASHER,5.2X10X1.0 | 92200 | 92200-1820 | 10 |
