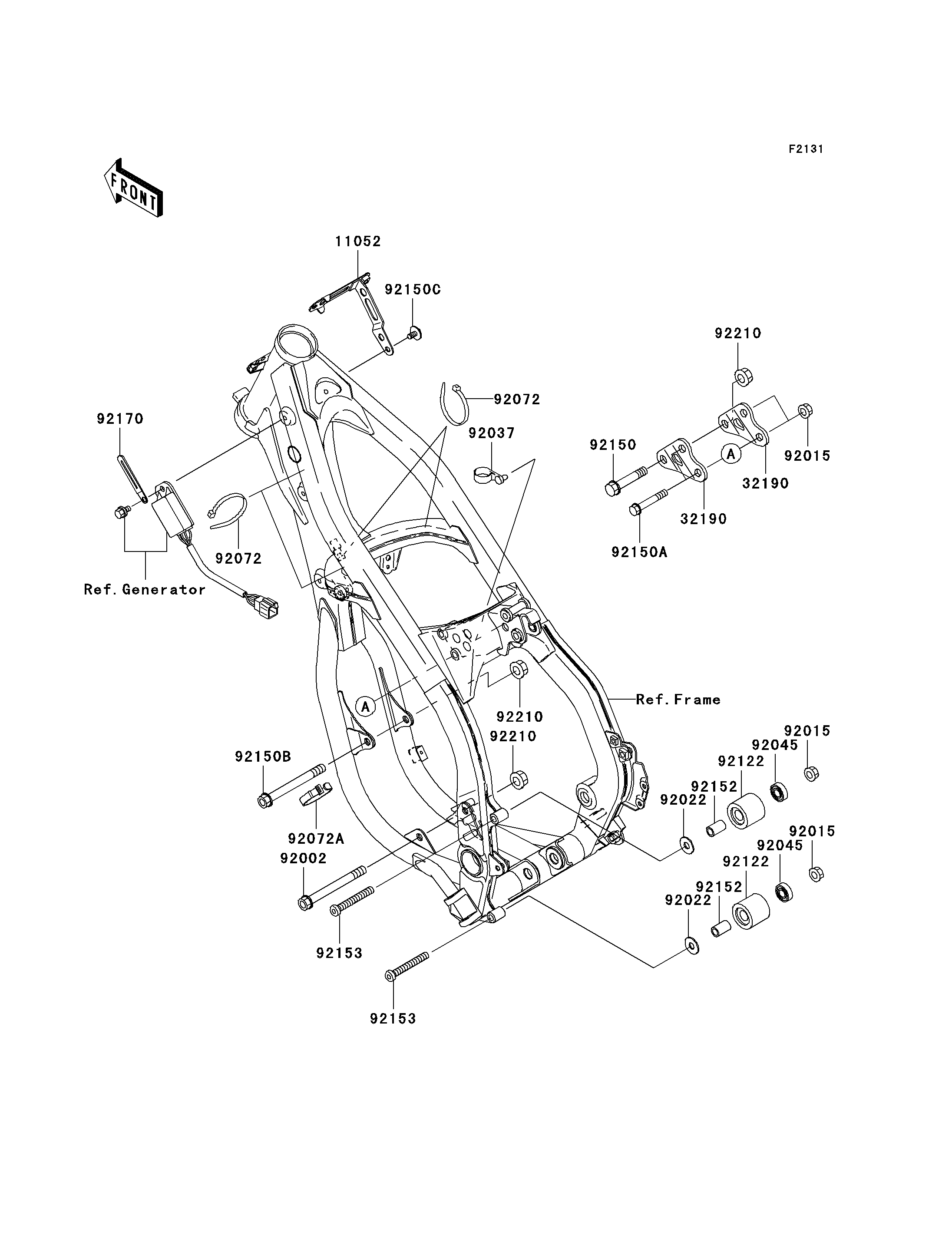

2003 KX250 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11052
32190
32190
92002
92015
92015
92015
92022
92022
92037
92045
92045
92072
92072
92072A
92122
92122
92150
92150A
92150B
92150C
92152
92152
92153
92153
92170
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,IGNITER 11052 11053-0467 1
BRACKET-ENGINE 32190 32190-1266 2
BOLT,FLANGED,10X105 92002 92002-1491 1
NUT,8MM 92015 92015-1432 4
WASHER,8.5X22X1.5 92022 92022-1629 2
CLAMP,SPEED,L=43 92037 92037-1290 1
BEARING-BALL,608LLU/2A 92045 92045-1009 2
BAND,L=202 92072 92072-1195 4
BAND,L=140 92072A 92072-1293 1
ROLLER,CHAIN GUIDE 92122 92122-1216 2
BOLT,FLANGED,10X50 92150 92150-1125 1
BOLT,FLANGED,8X50 92150A 92150-1214 2
BOLT,FLANGED,10X95 92150B 92150-1230 1
BOLT,6X12 92150C 92150-1435 1
COLLAR,8.5X12.5X20.5 92152 92152-1340 2
BOLT,SOCKET,8X60 92153 92153-1259 2
CLAMP 92170 92170-1514 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 3
