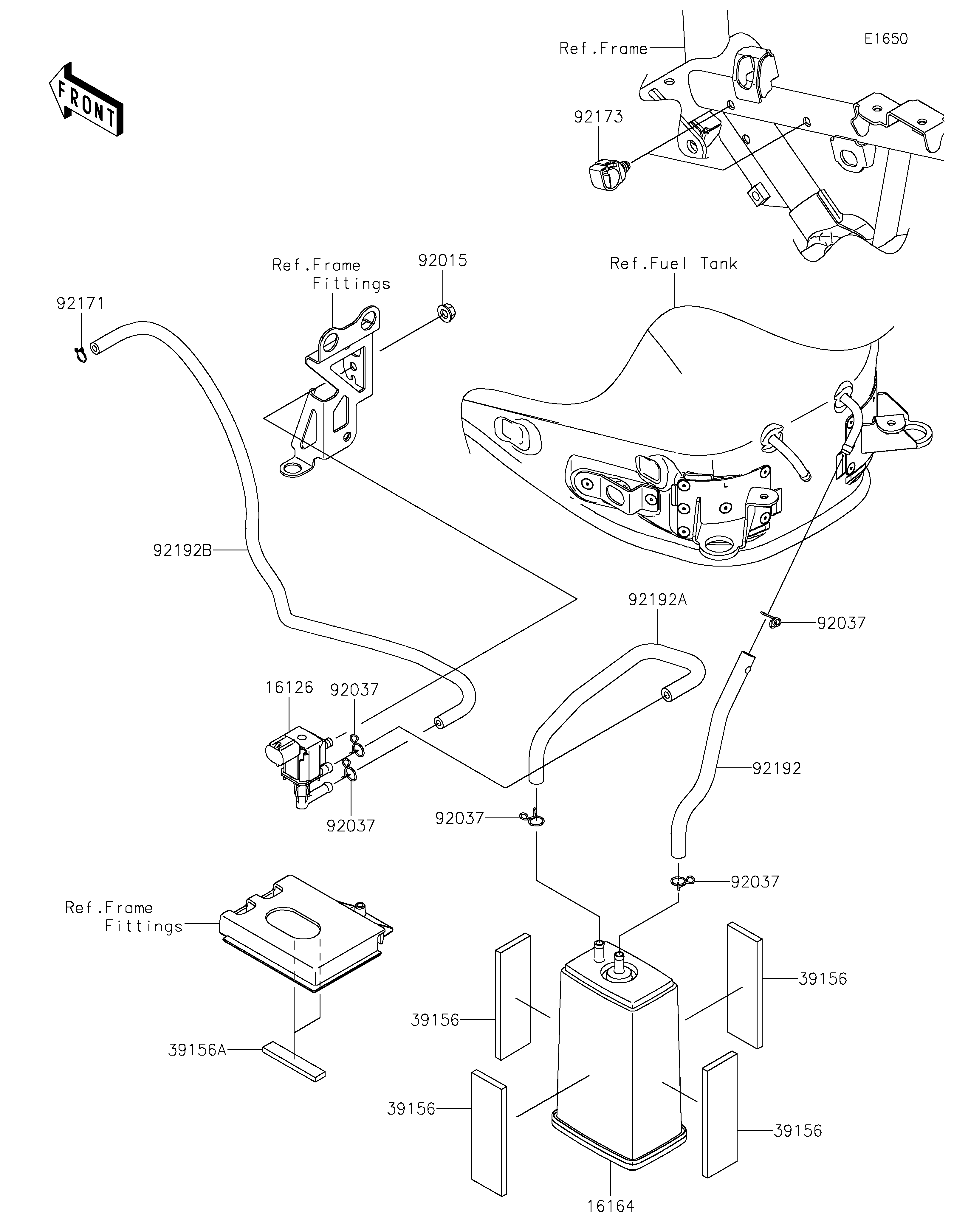

2021 Z900RS - Fuel Evaporative System(CA)
16126
16164
39156
39156
39156
39156
39156A
92015
92037
92037
92037
92037
92037
92171
92173
92192
92192A
92192B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE,PCV | 16126 | 16126-0740 | 1 | CA | |
| CANISTER | 16164 | 16164-0012 | 1 | CA | |
| PAD,93X30X5 | 39156 | 39156-1858 | 4 | CA | |
| PAD,10X52.5X4 | 39156A | 39156-2206 | 2 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP | 92037 | 92037-1712 | 5 | CA | |
| CLAMP | 92171 | 92171-0573 | 1 | CA | |
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 2 | CA | |
| TUBE,CANISTER-TANK | 92192 | 92192-1799 | 1 | CA | |
| TUBE,PCV-CANISTER | 92192A | 92192-1800 | 1 | CA | |
| TUBE,PCV-THROTTLE BODY | 92192B | 92192-1883 | 1 | CA |
| VALVE,PCV | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| PAD,93X30X5 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| PAD,10X52.5X4 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-TANK | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,PCV-CANISTER | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,PCV-THROTTLE BODY | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
