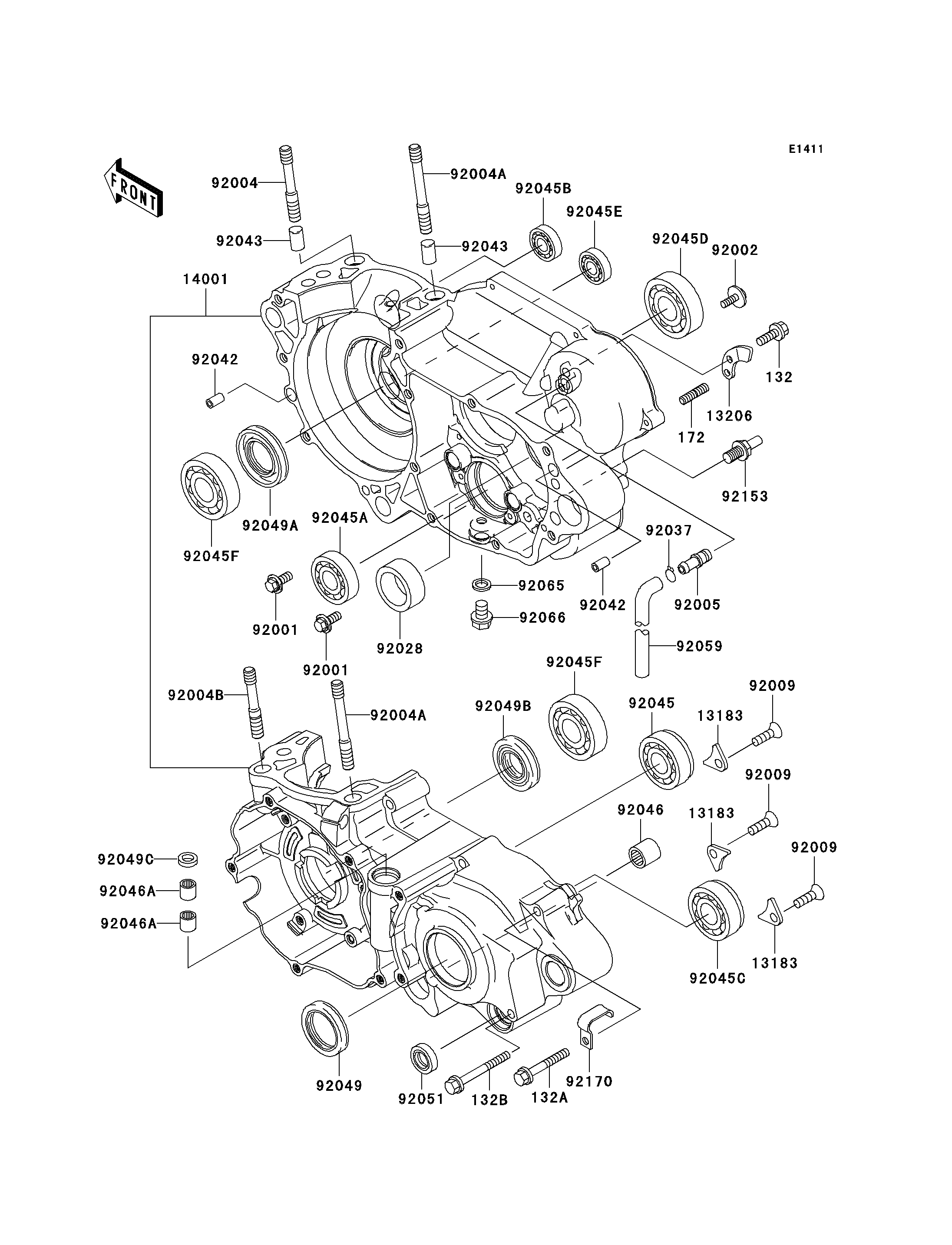

2004 KX250 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
172
13183
13183
13183
13206
14001
92001
92001
92002
92004
92004A
92004A
92004B
92005
92009
92009
92009
92028
92037
92042
92042
92043
92043
92045
92045A
92045B
92045C
92045D
92045E
92045F
92045F
92046
92046A
92046A
92049
92049A
92049B
92049C
92051
92059
92065
92066
92153
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0645 11
BOLT-FLANGED-SMALL 132B 132G0675 1
BOLT-STUD,6X12 172 172G0612 1
PLATE 13183 13183-1182 3
GUIDE-KICK 13206 13206-1062 1
SET-CRANKCASE 14001 14001-0014 1
BOLT,W/WASHER,6X14 92001 92001-1829 2
BOLT,6X16 92002 92002-1659 1
STUD,10X53 92004 92004-1165 1
STUD,10X66 92004A 92004-1203 2
STUD,10X41 92004B 92004-1250 1
FITTING,BREATHER 92005 92005-1210 1
SCREW,6X10 92009 92009-1563 3
BUSHING,26X35X14 92028 92028-131 1
CLAMP 92037 92037-1610 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,11X14X12.3 92043 92043-1266 2
BEARING-BALL 92045 92045-0013 1
BEARING-BALL,6905Z 92045A 92045-1058 1
BEARING-BALL,#628 92045B 92045-1123 1
BEARING-BALL 92045C 92045-1240 1
BEARING-BALL,63/22/25X7 92045D 92045-1300 1
BEARING-BALL 92045E 92045-1345 1
BEARING-BALL,CRANK MAIN 92045F 92045-1445 2
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
BEARING-NEEDLE,HK1210 92046A 92046-1010 2
SEAL-OIL,TC 30 40 7 92049 92049-0030 1
SEAL-OIL,TCJ 25 45 7 92049A 92049-0031 1
SEAL-OIL,TCJ 20 40 7 92049B 92049-0032 1
SEAL-OIL 92049C 92049-1262 1
SEAL-OIL,TB13225.5 92051 92051-005 1
TUBE,6X9X360 92059 92059-103 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN 92066 92066-1437 1
BOLT,RETURN 92153 92153-1201 1
CLAMP 92170 92170-1555 1
