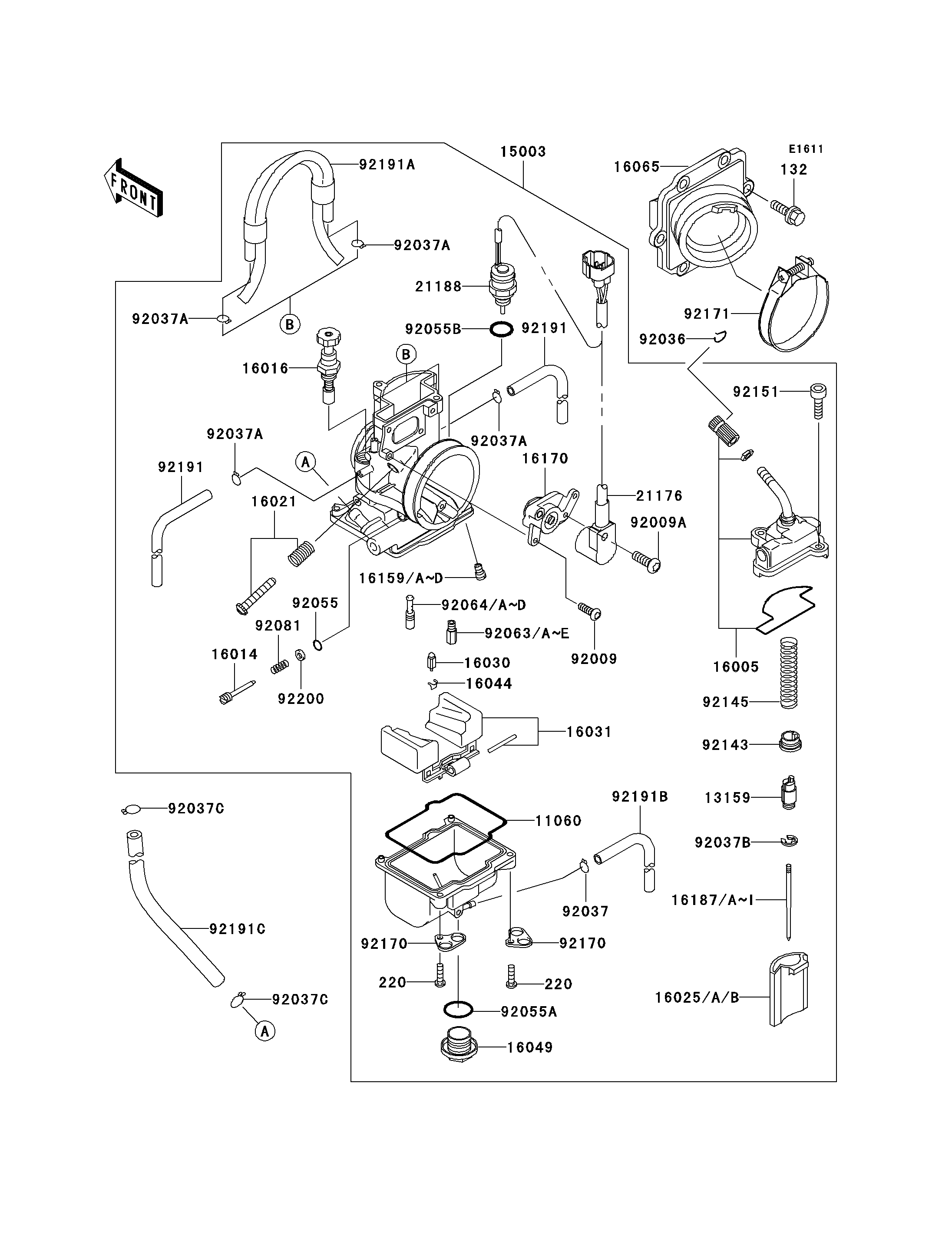

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11060
11060
11060
13159
13159
13159
15003
15003
15003
16005
16005
16005
16014
16014
16014
16016
16016
16016
16021
16021
16021
16025
16025
16025
16025A
16025A
16025A
16025B
16025B
16025B
16030
16030
16030
16031
16031
16031
16044
16044
16044
16049
16049
16049
16065
16065
16065
16159
16159
16159
16159A
16159A
16159A
16159B
16159B
16159B
16159C
16159C
16159C
16159D
16159D
16159D
16170
16170
16170
16187
16187
16187
16187A
16187A
16187A
16187B
16187B
16187B
16187C
16187C
16187C
16187D
16187D
16187D
16187E
16187E
16187E
16187F
16187F
16187F
16187G
16187G
16187G
16187H
16187H
16187H
16187I
16187I
16187I
21176
21176
21176
21188
21188
21188
92009
92009
92009
92009A
92009A
92009A
92036
92036
92036
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037C
92037C
92037C
92037C
92037C
92037C
92055
92055
92055
92055A
92055A
92055A
92055B
92055B
92055B
92063
92063
92063
92063A
92063A
92063A
92063B
92063B
92063B
92063C
92063C
92063C
92063D
92063D
92063D
92063E
92063E
92063E
92064
92064
92064
92064A
92064A
92064A
92064B
92064B
92064B
92064C
92064C
92064C
92064D
92064D
92064D
92081
92081
92081
92143
92143
92143
92145
92145
92145
92151
92151
92151
92170
92170
92170
92170
92170
92170
132
132
132
220
220
220
220
220
220
92171
92171
92171
92191
92191
92191
92191
92191
92191
92191A
92191A
92191A
92191B
92191B
92191B
92191C
92191C
92191C
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FLOAT CHAMBER | 11060 | 11060-1254 | 1 | ||
| CONNECTOR,THROTTLE CABLE | 13159 | 13159-1063 | 1 | ||
| CARBURETOR-ASSY | 15003 | 15003-0009 | 1 | ||
| TOP-CHAMBER | 16005 | 16005-1083 | 1 | ||
| SCREW-PILOT AIR | 16014 | 16014-1058 | 1 | ||
| PLUNGER | 16016 | 16016-1085 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-1198 | 1 | ||
| VALVE-THROTTLE,#6 | 16025 | 16025-1215 | 1 | (OPTION) | |
| VALVE-THROTTLE,#7 | 16025A | 16025-1216 | 1 | (OPTION) | |
| VALVE-THROTTLE,#8 | 16025B | 16025-1217 | 1 | ||
| VALVE-FLOAT | 16030 | 16030-1057 | 1 | ||
| FLOAT | 16031 | 16031-1100 | 1 | ||
| CLAMP,FLOAT VALVE | 16044 | 16044-007 | 1 | ||
| COVER-MAIN JET | 16049 | 16049-1051 | 1 | ||
| HOLDER-CARBURETOR | 16065 | 16065-0002 | 1 | ||
| JET-POWER,#50 | 16159 | 16159-1053 | 1 | ||
| JET-POWER,#55 | 16159A | 16159-1054 | 1 | (OPTION) | |
| JET-POWER,#52 | 16159B | 16159-1055 | 1 | (OPTION) | |
| JET-POWER,#48 | 16159C | 16159-1058 | 1 | (OPTION) | |
| JET-POWER,#45 | 16159D | 16159-1060 | 1 | (OPTION) | |
| LINK-ASSY | 16170 | 16170-0001 | 1 | ||
| NEEDLE-JET,NALD 2.685 | 16187 | 16187-1154 | 1 | (OPTION) | |
| NEEDLE-JET,NALE 2.695 | 16187A | 16187-1155 | 1 | (OPTION) | |
| NEEDLE-JET,NALF | 16187B | 16187-1156 | 1 | ||
| NEEDLE-JET,NALG 2.715 | 16187C | 16187-1157 | 1 | (OPTION) | |
| NEEDLE-JET,NALH 2.725 | 16187D | 16187-1158 | 1 | (OPTION) | |
| NEEDLE-JET,NAFD 2.685 | 16187E | 16187-1159 | 1 | (OPTION) | |
| NEEDLE-JET,NAFE 2.695 | 16187F | 16187-1160 | 1 | (OPTION) | |
| NEEDLE-JET,NAFF 2.705 | 16187G | 16187-1161 | 1 | (OPTION) | |
| NEEDLE-JET,NAFG 2.715 | 16187H | 16187-1162 | 1 | (OPTION) | |
| NEEDLE-JET,NAFH 2.725 | 16187I | 16187-1163 | 1 | (OPTION) | |
| SENSOR | 21176 | 21176-0014 | 1 | ||
| SOLENOID | 21188 | 21188-0002 | 1 | ||
| SCREW | 92009 | 92009-1889 | 2 | ||
| SCREW,THROTTLE SENSOR | 92009A | 92009-1981 | 1 | ||
| RING-SNAP | 92036 | 92036-018 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1142 | 1 | ||
| CLAMP,TUBE | 92037A | 92037-1396 | 4 | ||
| CLAMP,JET NEEDLE | 92037B | 92037-1401 | 1 | ||
| CLAMP,TUBE | 92037C | 92037-147 | 2 | ||
| RING-O,PILOT ADJUST | 92055 | 92055-1002 | 1 | ||
| RING-O,MAIN JET COVER | 92055A | 92055-1167 | 1 | ||
| RING-O | 92055B | 92055-1580 | 1 | ||
| JET-MAIN,#160 | 92063 | 92063-1368 | 1 | (OPTION) | |
| JET-MAIN,#162 | 92063A | 92063-1369 | 1 | (OPTION) | |
| JET-MAIN,#165 | 92063B | 92063-1370 | 1 | ||
| JET-MAIN,#168 | 92063C | 92063-1371 | 1 | (OPTION) | |
| JET-MAIN,#170 | 92063D | 92063-1372 | 1 | (OPTION) | |
| JET-MAIN,#175 | 92063E | 92063-1374 | 1 | (OPTION) | |
| JET-PILOT,#52 | 92064 | 92064-1130 | 1 | ||
| JET-PILOT,#48 | 92064A | 92064-1143 | 1 | (OPTION) | |
| JET-PILOT,#50 | 92064B | 92064-1144 | 1 | (OPTION) | |
| JET-PILOT,#55 | 92064C | 92064-1145 | 1 | (OPTION) | |
| JET-PILOT,#58 | 92064D | 92064-1146 | 1 | (OPTION) | |
| SPRING,ADJUST SCREW | 92081 | 92081-1555 | 1 | ||
| COLLAR,THROTTLE VALVE | 92143 | 92143-1201 | 1 | ||
| SPRING,THROTTLE VALVE | 92145 | 92145-0012 | 1 | ||
| BOLT | 92151 | 92151-1507 | 2 | ||
| CLAMP | 92170 | 92170-1582 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0620 | 6 | ||
| SCREW-PAN-CROS | 220 | 220D0414 | 4 | ||
| CLAMP | 92171 | 92171-1105 | 1 | ||
| TUBE,4X7X480 | 92191 | 92191-1254 | 2 | ||
| TUBE,AIR VENT | 92191A | 92191-1255 | 1 | ||
| TUBE,3.5X6.5X330 | 92191B | 92191-1256 | 1 | ||
| TUBE,5.3X10.5X160 | 92191C | 92191-1743 | 1 | ||
| WASHER | 92200 | 92200-1466 | 1 |
| GASKET,FLOAT CHAMBER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONNECTOR,THROTTLE CABLE | |
| REF # | 13159 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR-ASSY | |
| REF # | 15003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOP-CHAMBER | |
| REF # | 16005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PILOT AIR | |
| REF # | 16014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUNGER | |
| REF # | 16016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-THROTTLE STOP | |
| REF # | 16021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-THROTTLE,#6 | |
| REF # | 16025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| VALVE-THROTTLE,#7 | |
| REF # | 16025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| VALVE-THROTTLE,#8 | |
| REF # | 16025B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-FLOAT | |
| REF # | 16030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOAT | |
| REF # | 16031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FLOAT VALVE | |
| REF # | 16044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MAIN JET | |
| REF # | 16049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CARBURETOR | |
| REF # | 16065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JET-POWER,#50 | |
| REF # | 16159 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JET-POWER,#55 | |
| REF # | 16159A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-POWER,#52 | |
| REF # | 16159B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-POWER,#48 | |
| REF # | 16159C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-POWER,#45 | |
| REF # | 16159D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| LINK-ASSY | |
| REF # | 16170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NEEDLE-JET,NALD 2.685 | |
| REF # | 16187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NEEDLE-JET,NALE 2.695 | |
| REF # | 16187A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NEEDLE-JET,NALF | |
| REF # | 16187B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NEEDLE-JET,NALG 2.715 | |
| REF # | 16187C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NEEDLE-JET,NALH 2.725 | |
| REF # | 16187D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NEEDLE-JET,NAFD 2.685 | |
| REF # | 16187E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NEEDLE-JET,NAFE 2.695 | |
| REF # | 16187F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NEEDLE-JET,NAFF 2.705 | |
| REF # | 16187G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NEEDLE-JET,NAFG 2.715 | |
| REF # | 16187H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| NEEDLE-JET,NAFH 2.725 | |
| REF # | 16187I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SENSOR | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOLENOID | |
| REF # | 21188 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,THROTTLE SENSOR | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,JET NEEDLE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,PILOT ADJUST | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,MAIN JET COVER | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JET-MAIN,#160 | |
| REF # | 92063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-MAIN,#162 | |
| REF # | 92063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-MAIN,#165 | |
| REF # | 92063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JET-MAIN,#168 | |
| REF # | 92063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-MAIN,#170 | |
| REF # | 92063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-MAIN,#175 | |
| REF # | 92063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-PILOT,#52 | |
| REF # | 92064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JET-PILOT,#48 | |
| REF # | 92064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-PILOT,#50 | |
| REF # | 92064B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-PILOT,#55 | |
| REF # | 92064C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| JET-PILOT,#58 | |
| REF # | 92064D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,ADJUST SCREW | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,THROTTLE VALVE | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE VALVE | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,4X7X480 | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,AIR VENT | |
| REF # | 92191A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,3.5X6.5X330 | |
| REF # | 92191B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,5.3X10.5X160 | |
| REF # | 92191C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
