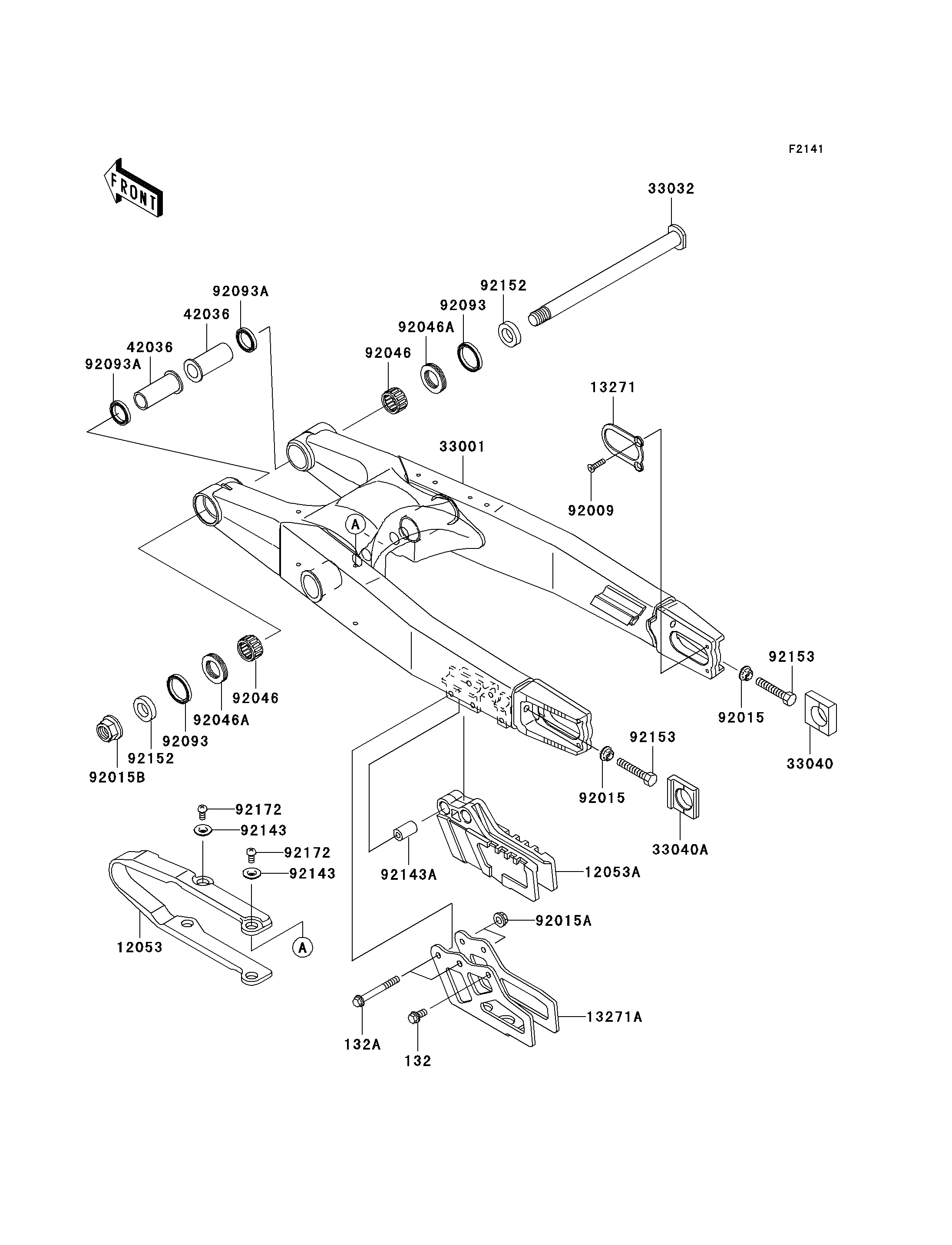

2004 KX250 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
132
132A
12053
12053A
13271
13271A
33001
33032
33040
33040A
42036
42036
92009
92015
92015
92015A
92015B
92046
92046
92046A
92046A
92093
92093
92093A
92093A
92143
92143
92143A
92152
92152
92153
92153
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT-FLANGED-SMALL 132A 132G0650 2
GUIDE-CHAIN,DRIVE,FR 12053 12053-0020 1
GUIDE-CHAIN 12053A 12053-1468 1
PLATE,AXLE 13271 13271-1833 2
PLATE,CHAIN GUIDE 13271A 13271-1834 1
ARM-COMP-SWING,SILVER 33001 33001-0025-CE 1
SHAFT-SWING ARM 33032 33032-1189 1
ADJUSTER-CHAIN,RH 33040 33040-0013 1
ADJUSTER-CHAIN,LH 33040A 33040-1189 1
SLEEVE,SWING ARM,L=54 42036 42036-1326 2
SCREW,5X10 92009 92009-1828 4
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,FLANGED,6MM 92015A 92015-1078 2
NUT,FLANGED,16MM 92015B 92015-1316 1
BEARING-NEEDLE,TA2230Z 92046 92046-1174 2
BEARING-NEEDLE,NTBR22356E01 92046A 92046-1240 2
SEAL,SDO29X35X4.5 92093 92093-1434 2
SEAL,SDO22X29X5 92093A 92093-1435 2
COLLAR 92143 92143-1676 4
COLLAR,6.5X14X24 92143A 92143-1867 2
COLLAR,17.1X29X7.5 92152 92152-1137 2
BOLT,8X56 92153 92153-0620 2
SCREW,5X8 92172 92172-0119 4
