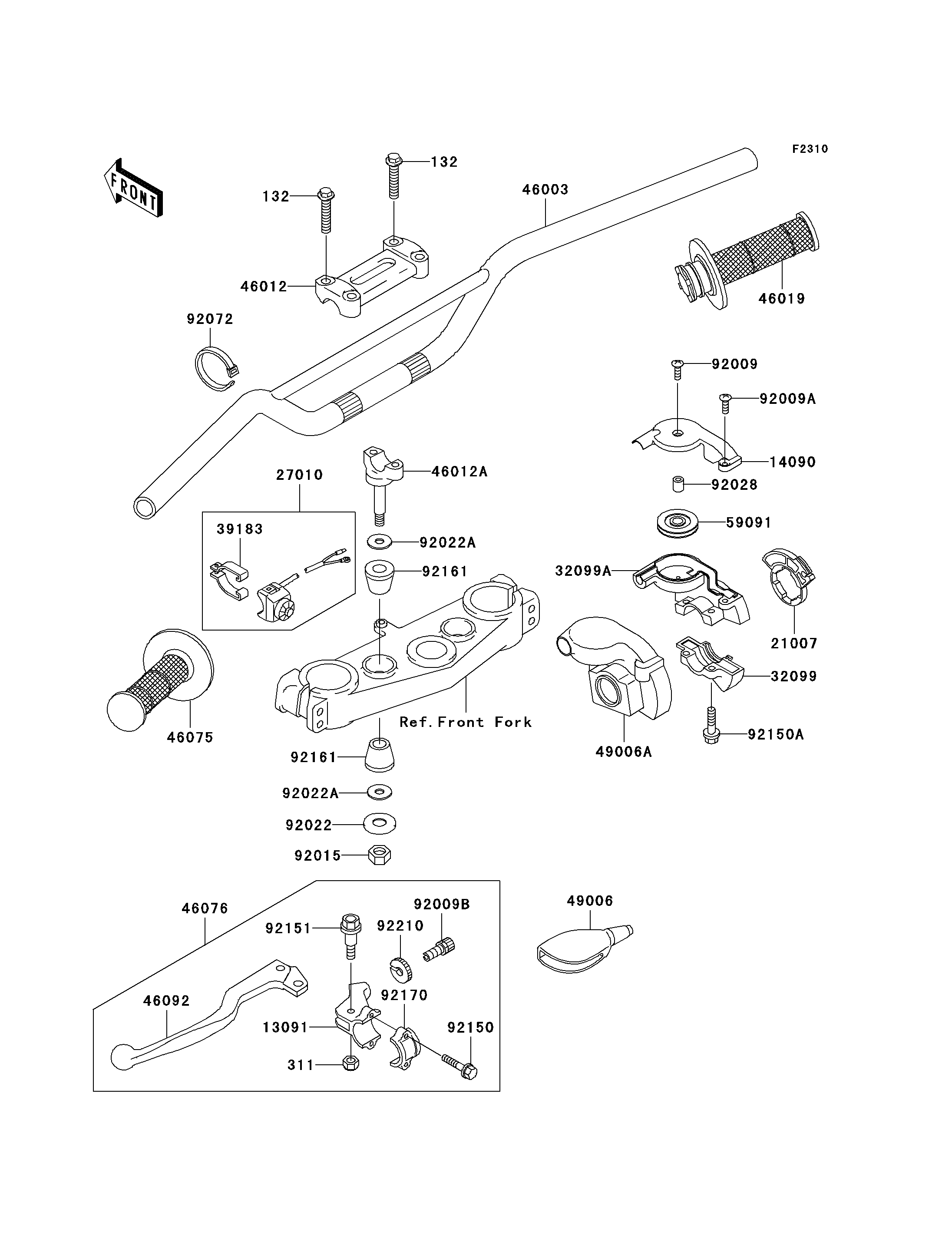

2004 KX250 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
132
132
311
13091
14090
21007
27010
32099
32099A
39183
46003
46012
46012A
46019
46075
46076
46092
49006
49006A
59091
92009
92009A
92009B
92015
92022
92022A
92022A
92028
92072
92150
92150A
92151
92161
92161
92170
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0830 4
NUT-HEX 311 311B0500 1
HOLDER,CLUTCH LEVER 13091 13091-1728 1
COVER,THROTTLE CASE,UPP 14090 14090-1161 1
ROTOR,THROTTLE 21007 21007-1242 1
SWITCH,ENGINE STOP 27010 27010-1458 1
CASE,THROTTLE,LWR 32099 32099-1138 1
CASE,THROTTLE,UPP 32099A 32099-1168 1
BAND-ASSY,ENGINE STOP SWITCH 39183 39183-1059 1
HANDLE,SILVER 46003 46003-0026-CE 1
HOLDER-HANDLE,UPP 46012 46012-1190 1
HOLDER-HANDLE,LWR 46012A 46012-1264 2
GRIP-ASSY,THROTTLE 46019 46019-1125 1
GRIP,LH 46075 46075-1213 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1241 1
LEVER-GRIP,CLUTCH 46092 46092-1165 1
BOOT,LEVER HOLDER 49006 49006-1017 1
BOOT,THROTTLE 49006A 49006-1301 1
PULLEY,THROTTLE 59091 59091-1102 1
SCREW 92009 92009-1674 1
SCREW 92009A 92009-1675 1
SCREW,CABLE ADJUST,8MM 92009B 92009-1970 1
NUT,LOCK,10MM 92015 92015-1962 2
WASHER,10.2X28X2 92022 92022-1088 2
WASHER 92022A 92022-1737 4
BUSHING,THROTTLE CASE 92028 92028-1658 1
BAND,L=140 92072 92072-1293 1
BOLT 92150 92150-1474 2
BOLT 92150A 92150-1559 2
BOLT,LEVER SET,5MM 92151 92151-1103 1
DAMPER,HANDLE HOLDER 92161 92161-0113 4
CLAMP,LEVER HOLDER 92170 92170-1226 1
NUT,CABLE ADJUST LOCK,8MM 92210 92210-1307 1
