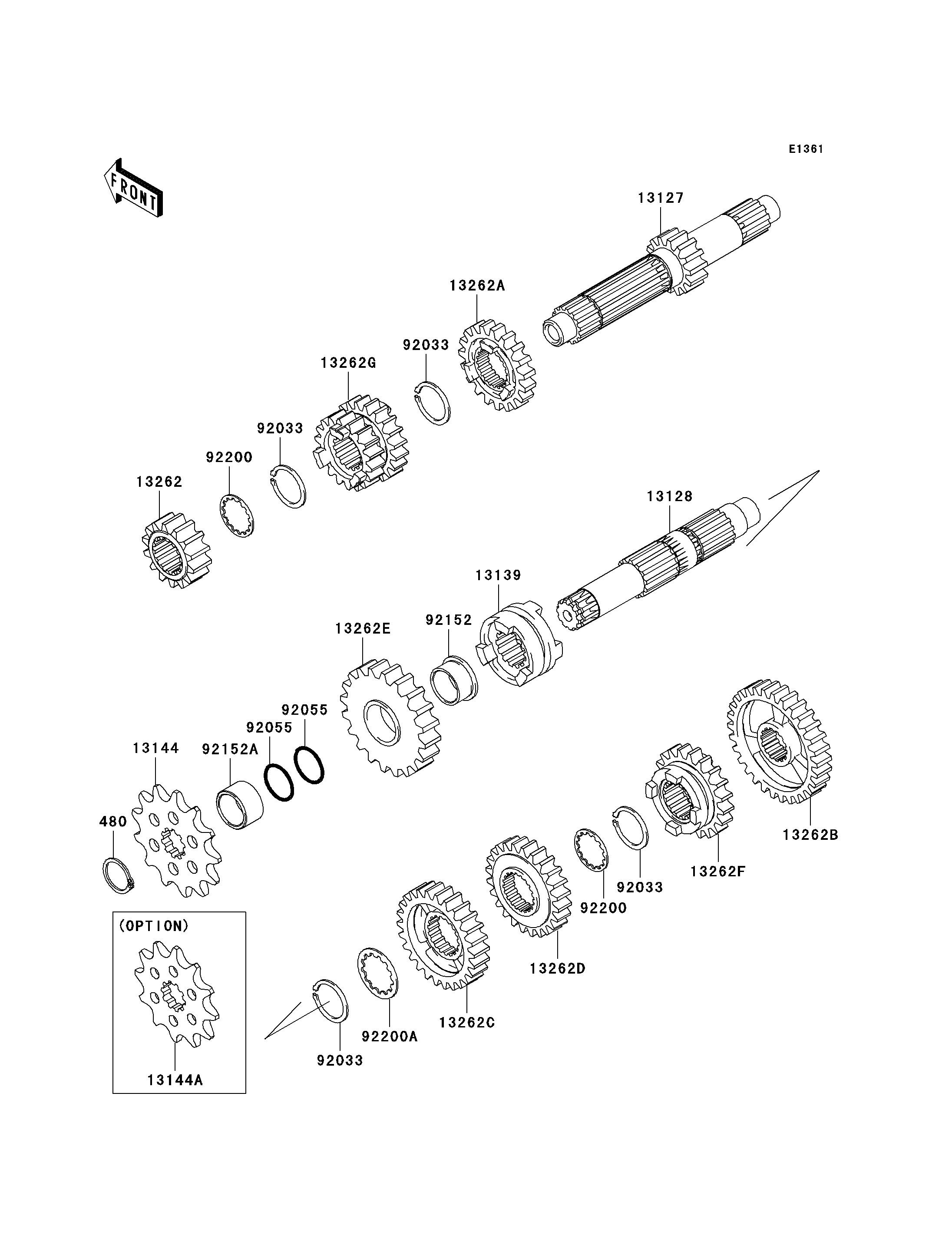

Parts Diagrams |
480
13127
13128
13139
13144
13144A
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
92033
92033
92033
92033
92055
92055
92152
92152A
92200
92200
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,20MM | 480 | 480J2000 | 1 | ||
| SHAFT-TRANSMISSION INPUT,14T | 13127 | 13127-0004 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-0009 | 1 | ||
| SHIFTER,2ND-3RD | 13139 | 13139-0006 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144 | 13144-0001 | 1 | ||
| SPROCKET-OUTPUT,12T | 13144A | 13144-0006 | 1 | (OPTION) | |
| GEAR,INPUT 2ND,14T | 13262 | 13262-0018 | 1 | ||
| GEAR,INPUT 5TH,19T | 13262A | 13262-0020 | 1 | ||
| GEAR,OUTPUT LOW,30T | 13262B | 13262-0022 | 1 | ||
| GEAR,OUTPUT 3RD,26T | 13262C | 13262-0024 | 1 | ||
| GEAR,OUTPUT 4TH,24T | 13262D | 13262-0115 | 1 | ||
| GEAR,OUTPUT 2ND,25T | 13262E | 13262-0120 | 1 | ||
| GEAR,OUTPUT 5TH,20T | 13262F | 13262-0184 | 1 | ||
| GEAR,INPUT 3RD&4TH,18T&20T | 13262G | 13262-0220 | 1 | ||
| RING-SNAP | 92033 | 92033-1270 | 4 | ||
| RING-O,19.5X1.5 | 92055 | 92055-055 | 2 | ||
| COLLAR,OUTPUT 2ND | 92152 | 92152-0032 | 1 | ||
| COLLAR,SPROCKET | 92152A | 92152-0033 | 1 | ||
| WASHER,24X28.6X1 | 92200 | 92200-0028 | 2 | ||
| WASHER,25X30.1X1 | 92200A | 92200-0064 | 1 |
