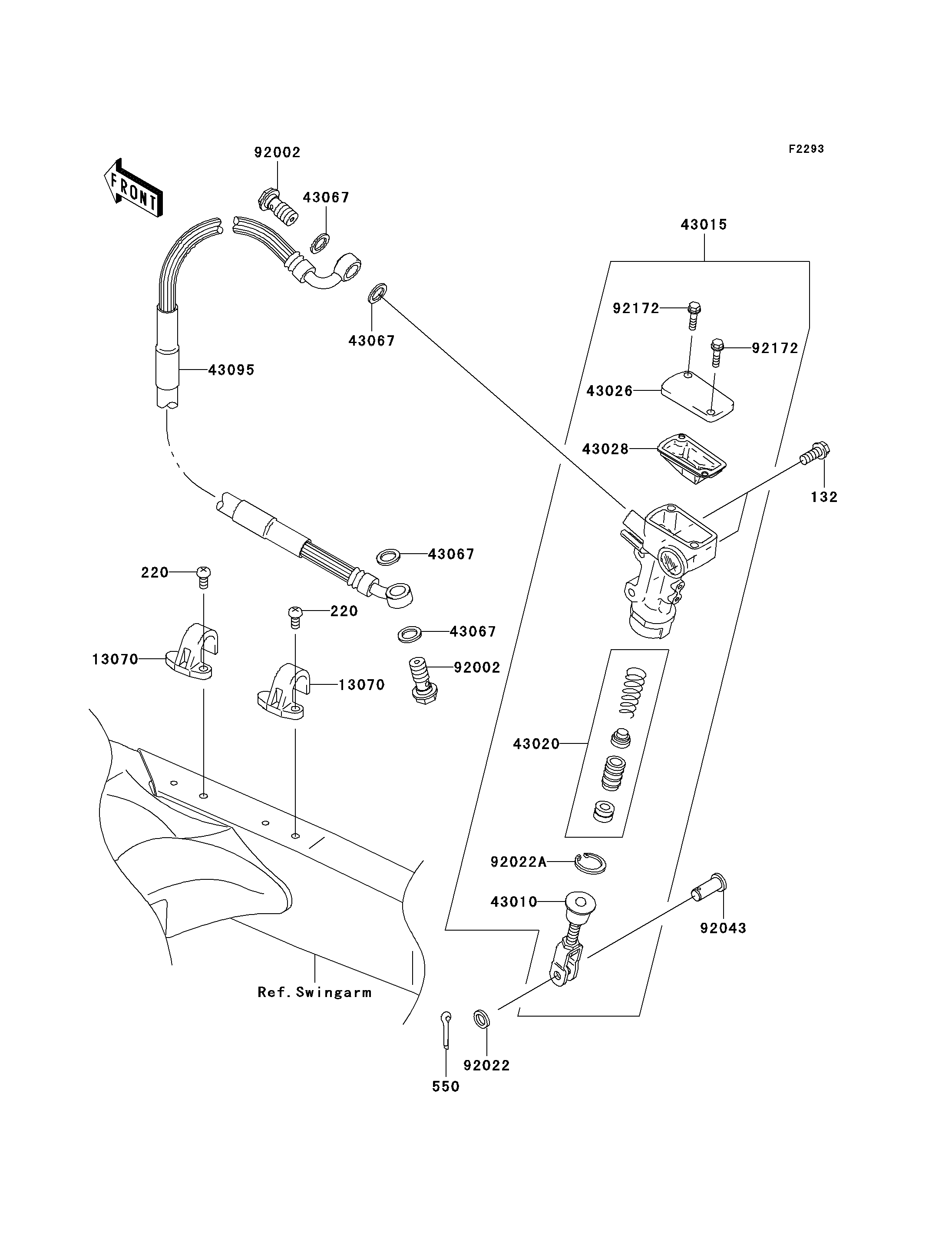

Parts Diagrams |
132
220
220
550
13070
13070
43010
43015
43020
43026
43028
43067
43067
43067
43067
43095
92002
92002
92022
92022A
92043
92172
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132G0614 | 2 | ||
SCREW-PAN-CROS | 220 | 220B0510 | 2 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
GUIDE,BRAKE HOSE | 13070 | 13070-1388 | 2 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1087 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-0004 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1094 | 1 | ||
CAP-BRAKE | 43026 | 43026-1086 | 1 | ||
DIAPHRAGM | 43028 | 43028-1092 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
HOSE-BRAKE,RR | 43095 | 43095-0024 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
WASHER,8.5X13X1 | 92022 | 92022-1028 | 1 | ||
WASHER,CIRCRIP | 92022A | 92022-1601 | 1 | ||
PIN | 92043 | 92043-0004 | 1 | ||
SCREW | 92172 | 92172-1064 | 2 |
