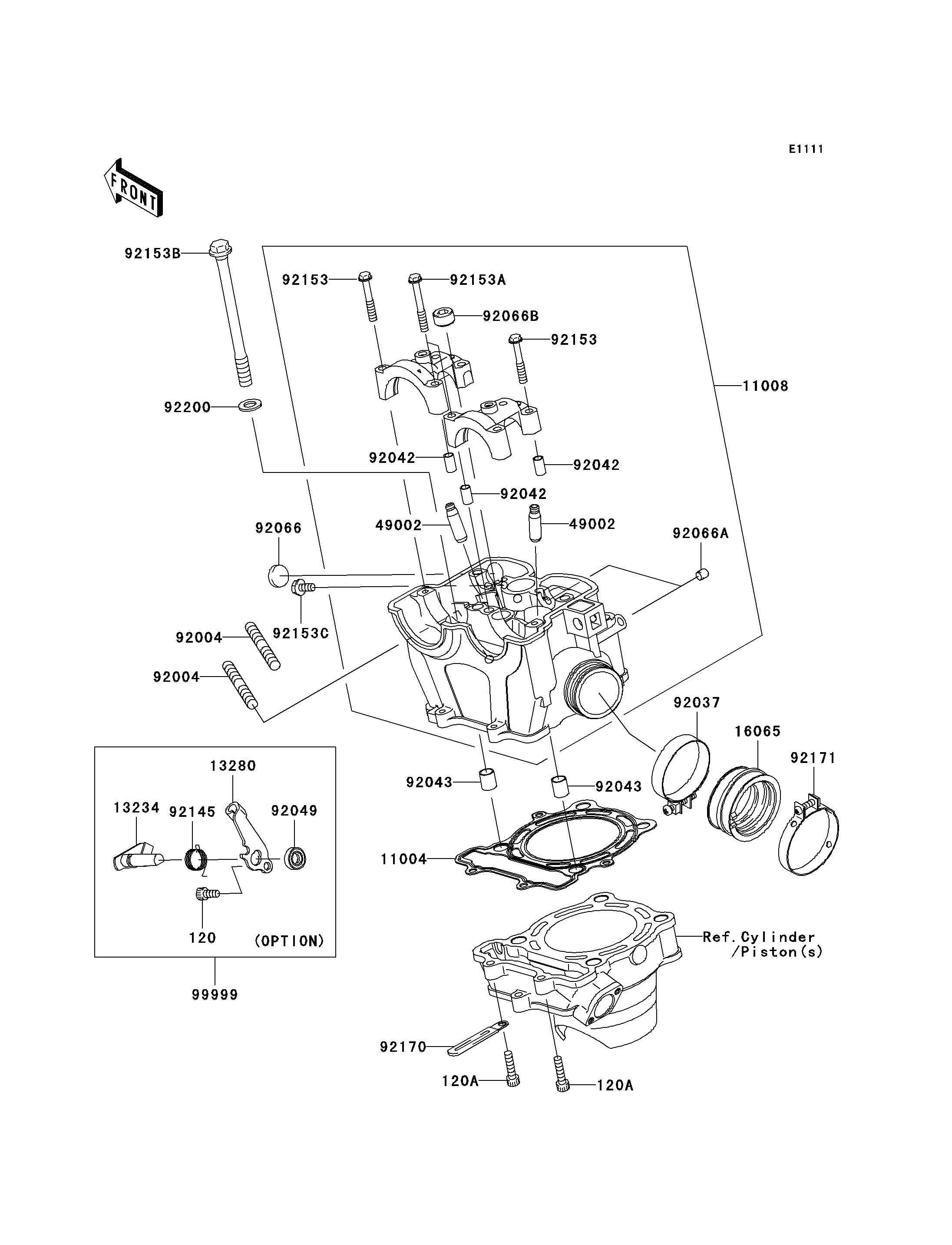

2005 KX250F - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120A
11004
11008
13234
13280
16065
49002
49002
92004
92004
92037
92042
92042
92042
92043
92043
92049
92066
92066A
92066B
92145
92153
92153
92153A
92153B
92153C
92170
92171
92200
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120P0612 1 (OPTION)
BOLT-SOCKET,6X25 120A 120P0625 2
GASKET-HEAD 11004 11004-0003 1
HEAD-COMP-CYLINDER 11008 11008-0050 1
SHAFT-COMP,DECOMP 13234 13234-0009 1 (OPTION)
HOLDER,DECOMP 13280 13280-0038 1 (OPTION)
HOLDER-CARBURETOR 16065 16065-0012 1
GUIDE-VALVE 49002 49002-0003 AR
STUD,8X22 92004 92004-1249 2
CLAMP 92037 92037-1523 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,10.1X12X14 92043 92043-4009 2
SEAL-OIL 92049 92049-1196 1 (OPTION)
PLUG,4X18 92066 92066-0024 1
PLUG,OIL LINE,7.2X8 92066A 92066-1012 2
PLUG,10X16.6 92066B 92066-3777 1
SPRING 92145 92145-0048 1 (OPTION)
BOLT,6X38 92153 92153-0338 6
BOLT,6X45 92153A 92153-0339 2
BOLT,10X122 92153B 92153-0341 4
BOLT,6X12 92153C 92153-0806 1
CLAMP 92170 92170-1514 1
CLAMP 92171 92171-0314 1
WASHER,10.5X19X2.3 92200 92200-1339 4
KIT.,MANUAL DECOMP 99999 99999-0023 1 (OPTION)
