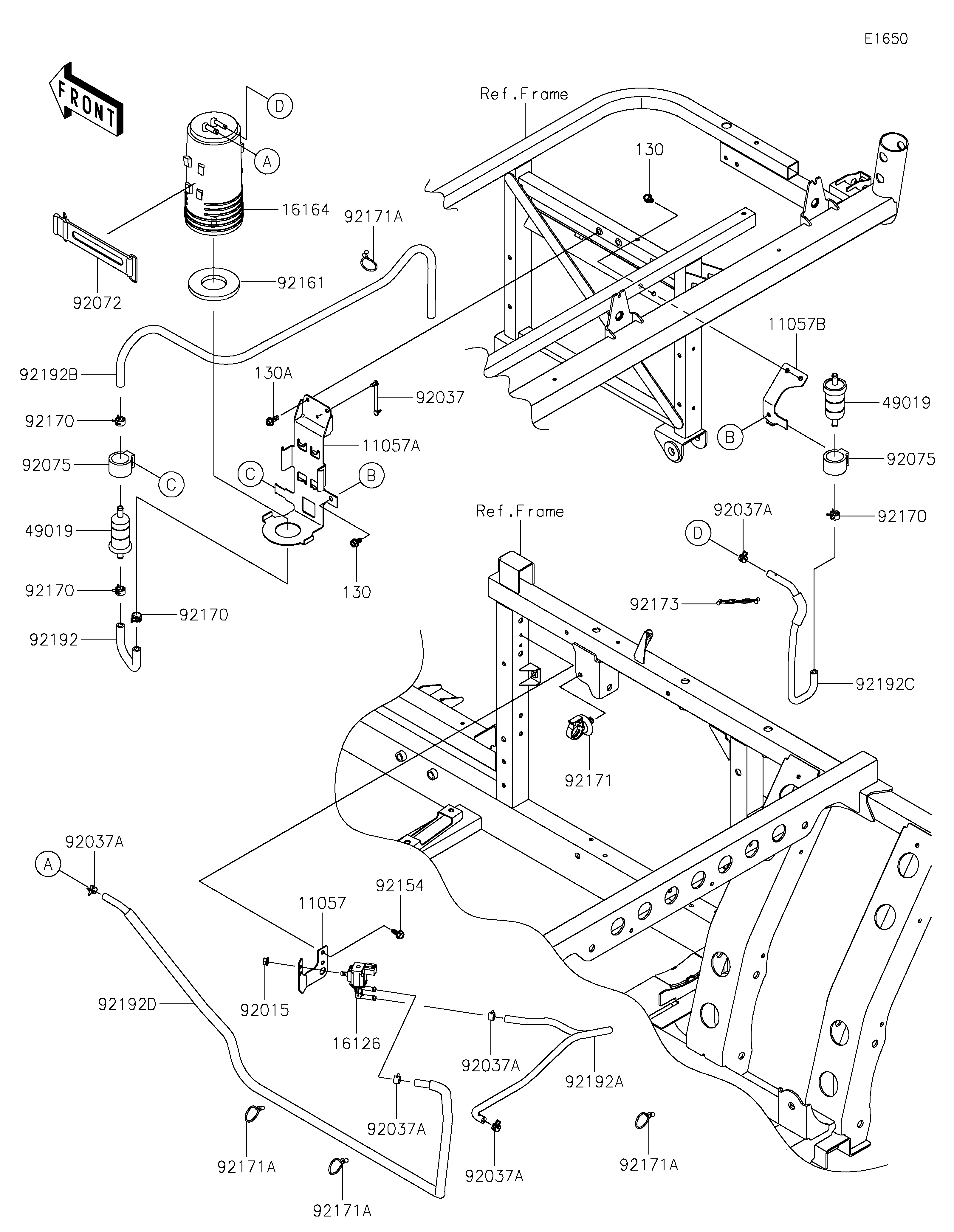

2021 MULE PRO-FXT™ EPS LE - Fuel Evaporative System(CA)
11057
11057
11057A
11057A
11057B
11057B
16126
16126
16164
16164
49019
49019
49019
49019
92015
92015
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92037A
92072
92072
92075
92075
92075
92075
92154
92154
92161
92161
92170
92170
92170
92170
92170
92170
92170
92170
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92173
92173
92192
92192
92192A
92192A
92192B
92192B
130
130
130
130
130A
130A
92192C
92192C
92192D
92192D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,VALVE | 11057 | 11057-0763 | 1 | CA | |
| BRACKET,CANISTER | 11057A | 11057-2694 | 1 | CA | |
| BRACKET | 11057B | 11057-2695 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0016 | 1 | CA | |
| FILTER-FUEL | 49019 | 49019-0032 | 2 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 1 | CA | |
| CLAMP | 92037A | 92037-2113 | 5 | CA | |
| BAND,L=168 | 92072 | 92072-1306 | 1 | CA | |
| DAMPER,FUEL FILTER | 92075 | 92075-1853 | 2 | CA | |
| BOLT,6X15.6 | 92154 | 92154-1250 | 2 | CA | |
| DAMPER | 92161 | 92161-1843 | 1 | CA | |
| CLAMP | 92170 | 92170-2082 | 4 | CA | |
| CLAMP | 92171 | 92171-0453 | 1 | CA | |
| CLAMP | 92171A | 92171-1185 | 4 | CA | |
| CLAMP | 92173 | 92173-2284 | 1 | CA | |
| TUBE,FILTER-CANISTER | 92192 | 92192-1665 | 1 | CA | |
| TUBE,VALVE-INTAKE MANIFOLD | 92192A | 92192-1667 | 1 | CA | |
| TUBE,AIR-FUEL FILTER | 92192B | 92192-1900 | 1 | CA | |
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 3 | CA | |
| BOLT-FLANGED,6X16 | 130A | 130BA0616 | 2 | CA | |
| TUBE,FILTER-CANISTER | 92192C | 92192-2252 | 1 | CA | |
| TUBE,CANISTER-VALVE | 92192D | 92192-2286 | 1 | CA |
