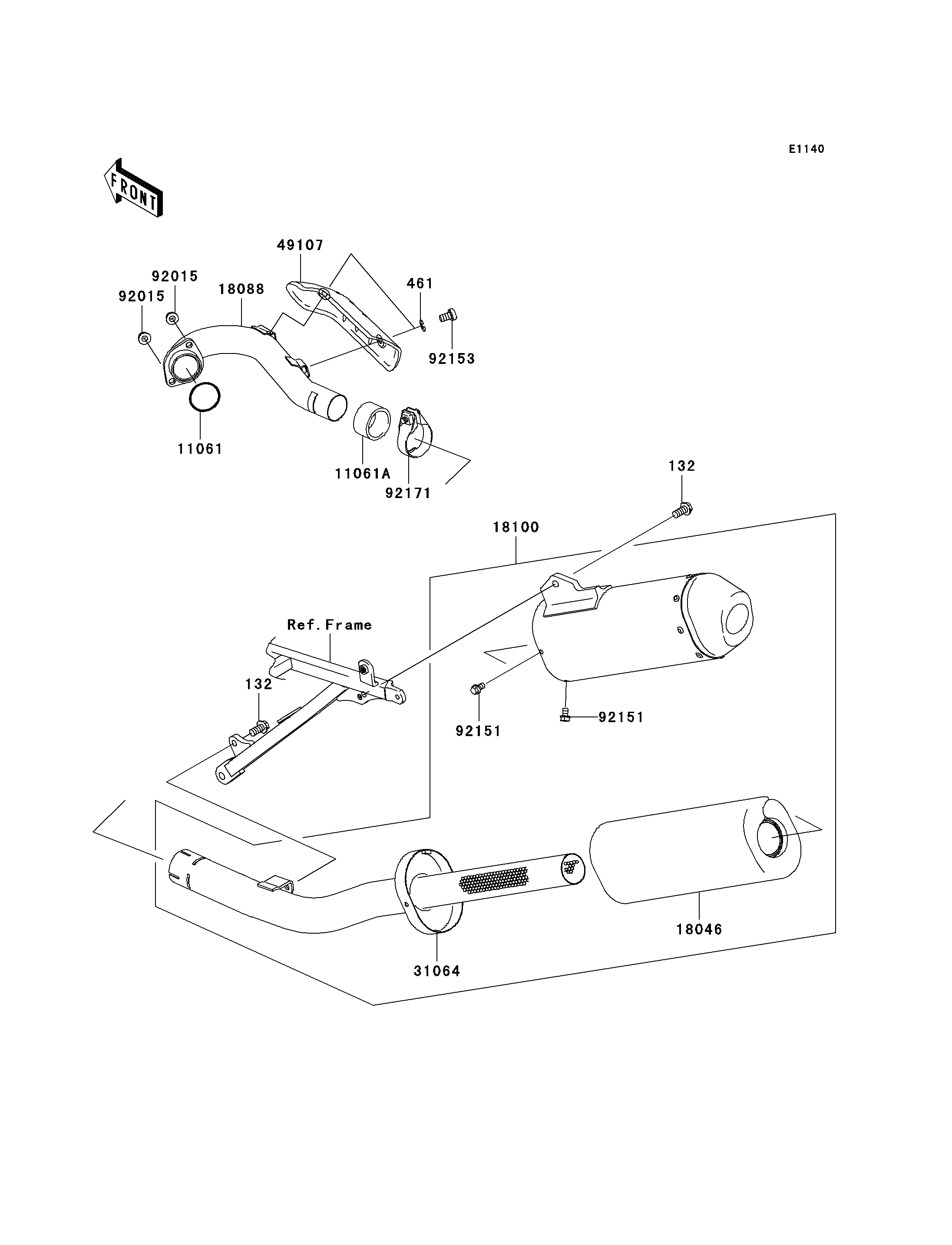

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132L0818 2
WASHER-SPRING,6MM 461 461S0600 2
GASKET 11061 11061-0027 1
GASKET 11061A 11061-0101 1
WOOL 18046 18046-0042 1
PIPE-EXHAUST 18088 18088-0106 1
BODY-ASSY-MUFFLER 18100 18100-0011 1
PIPE-COMP 31064 31064-0029 1
COVER-EXHAUST PIPE 49107 49107-0013 1
NUT,8MM 92015 92015-1402 2
BOLT,6X10 92151 92151-1822 4
BOLT,6X8 92153 92153-0578 2
CLAMP 92171 92171-0304 1
