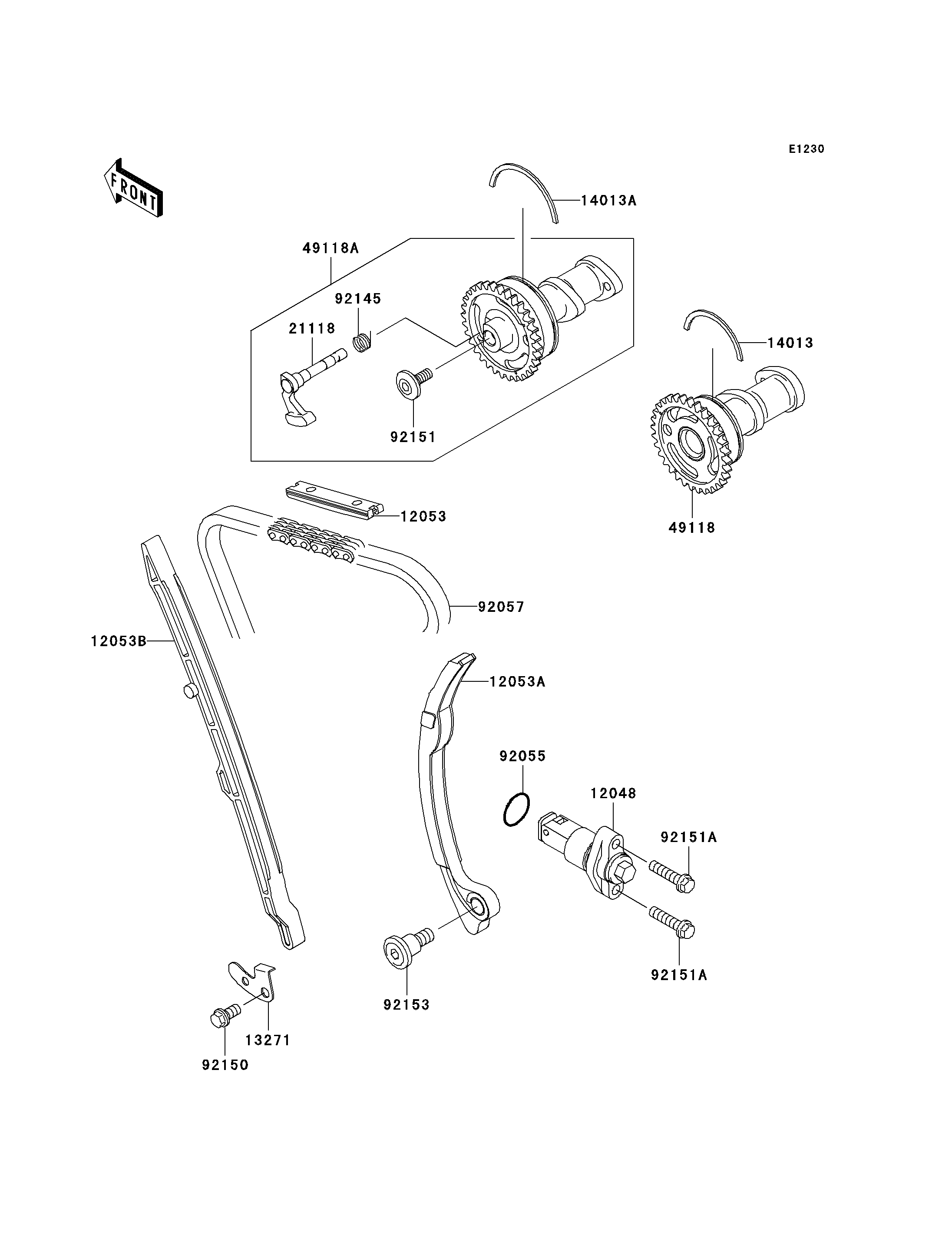

Parts Diagrams |
12048
12053
12053A
12053B
13271
14013
14013A
21118
49118
49118A
92055
92057
92145
92150
92151
92151A
92151A
92153
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TENSIONER-ASSY | 12048 | 12048-1181 | 1 | ||
| GUIDE-CHAIN,UPP | 12053 | 12053-0009 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-0010 | 1 | ||
| GUIDE-CHAIN,FR | 12053B | 12053-0017 | 1 | ||
| PLATE,CAM CHAIN STOPPER | 13271 | 13271-0169 | 1 | ||
| RING-POSITION | 14013 | 14013-0001 | 1 | ||
| RING-POSITION | 14013A | 14013-0002 | 1 | ||
| DECOMPRESSOR | 21118 | 21118-0001 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118 | 49118-0013 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118A | 49118-0022 | 1 | ||
| RING-O,18.8X1.9 | 92055 | 92055-086 | 1 | ||
| CHAIN,CAM,92RH2010-114 | 92057 | 92057-0030 | 1 | ||
| SPRING,DECOMP | 92145 | 92145-0050 | 1 | ||
| BOLT,FLANGED,6X12 | 92150 | 92150-1599 | 1 | ||
| BOLT,6MM | 92151 | 92151-1248 | 1 | ||
| BOLT,6X25 | 92151A | 92151-1930 | 2 | ||
| BOLT,12X24.5 | 92153 | 92153-0572 | 1 |
| TENSIONER-ASSY | |
| REF # | 12048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,UPP | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,RR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,FR | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CAM CHAIN STOPPER | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-POSITION | |
| REF # | 14013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-POSITION | |
| REF # | 14013A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DECOMPRESSOR | |
| REF # | 21118 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-COMP,INTAKE | |
| REF # | 49118 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-COMP,EXHAUST | |
| REF # | 49118A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,18.8X1.9 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,CAM,92RH2010-114 | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,DECOMP | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6MM | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X24.5 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
