Parts Diagrams |
172
311
480
13078
13156
13161
13165
13165A
13236
13271
92022
92026
92043
92043A
92043A
92145
92145A
92145B
92145B
92151
92153
92172
92200

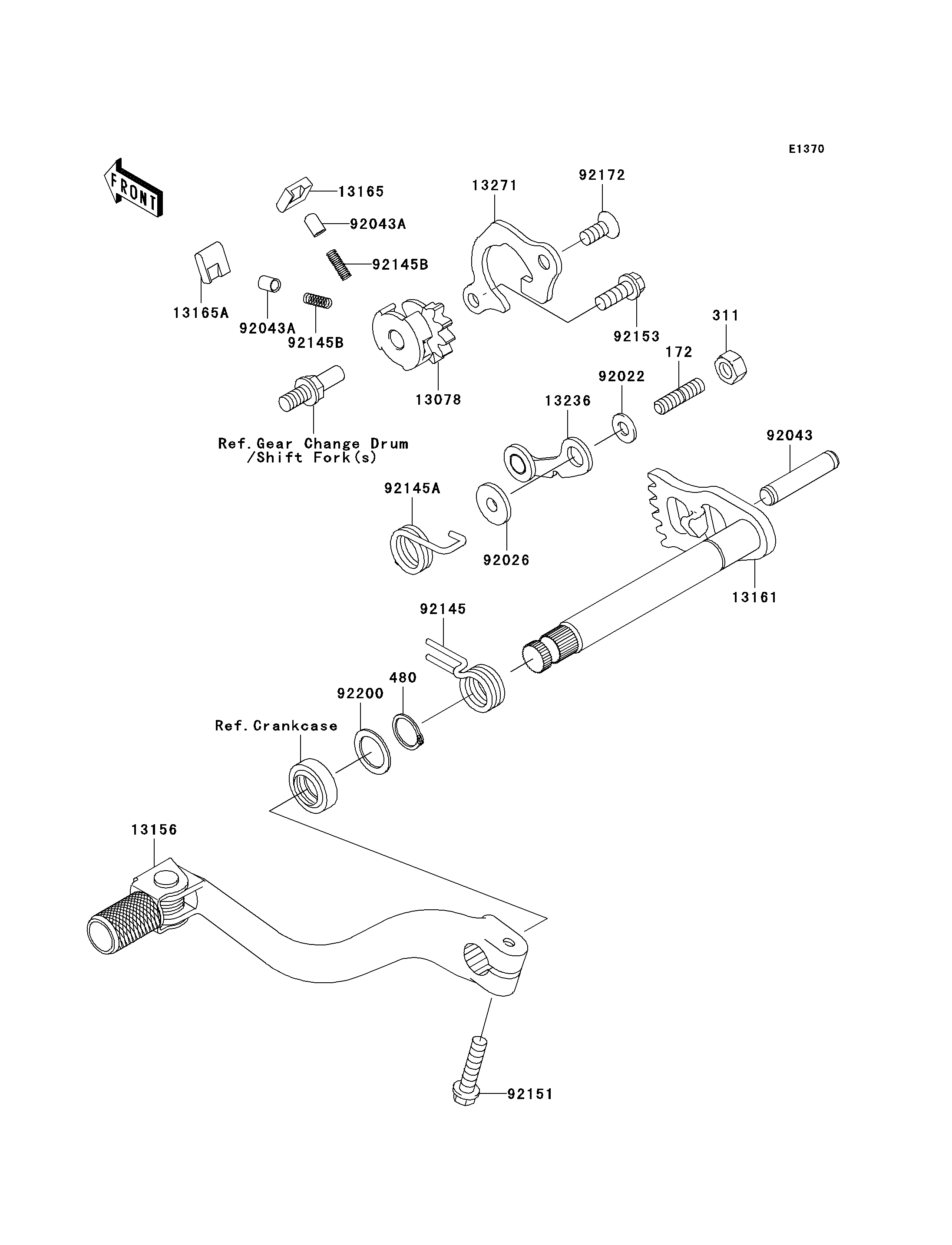

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-STUD,6X12 | 172 | 172G0612 | 1 | ||
NUT-HEX,6MM | 311 | 311G0600 | 1 | ||
CIRCLIP-TYPE-C,14MM | 480 | 480J1400 | 1 | ||
RATCHET | 13078 | 13078-0003 | 1 | ||
LEVER-CHANGE,PEDAL | 13156 | 13156-0041 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-0016 | 1 | ||
PAWL | 13165 | 13165-1162 | 1 | ||
PAWL | 13165A | 13165-1163 | 1 | ||
LEVER-COMP,POSITION | 13236 | 13236-0041 | 1 | ||
PLATE,PAWL GUIDE | 13271 | 13271-0061 | 1 | ||
WASHER,6X12.8X1.2 | 92022 | 92022-1827 | 1 | ||
SPACER | 92026 | 92026-1217 | 1 | ||
PIN,8X39 | 92043 | 92043-0017 | 1 | ||
PIN,PLUNGER | 92043A | 92043-1676 | 2 | ||
SPRING,RETURN | 92145 | 92145-0052 | 1 | ||
SPRING,POSITION | 92145A | 92145-0154 | 1 | ||
SPRING | 92145B | 92145-1490 | 2 | ||
BOLT,6X25 | 92151 | 92151-1930 | 1 | ||
BOLT,6X16 | 92153 | 92153-0825 | 1 | ||
SCREW,6X14 | 92172 | 92172-0110 | 1 | ||
WASHER,14.2X20X1 | 92200 | 92200-0029 | 1 |
