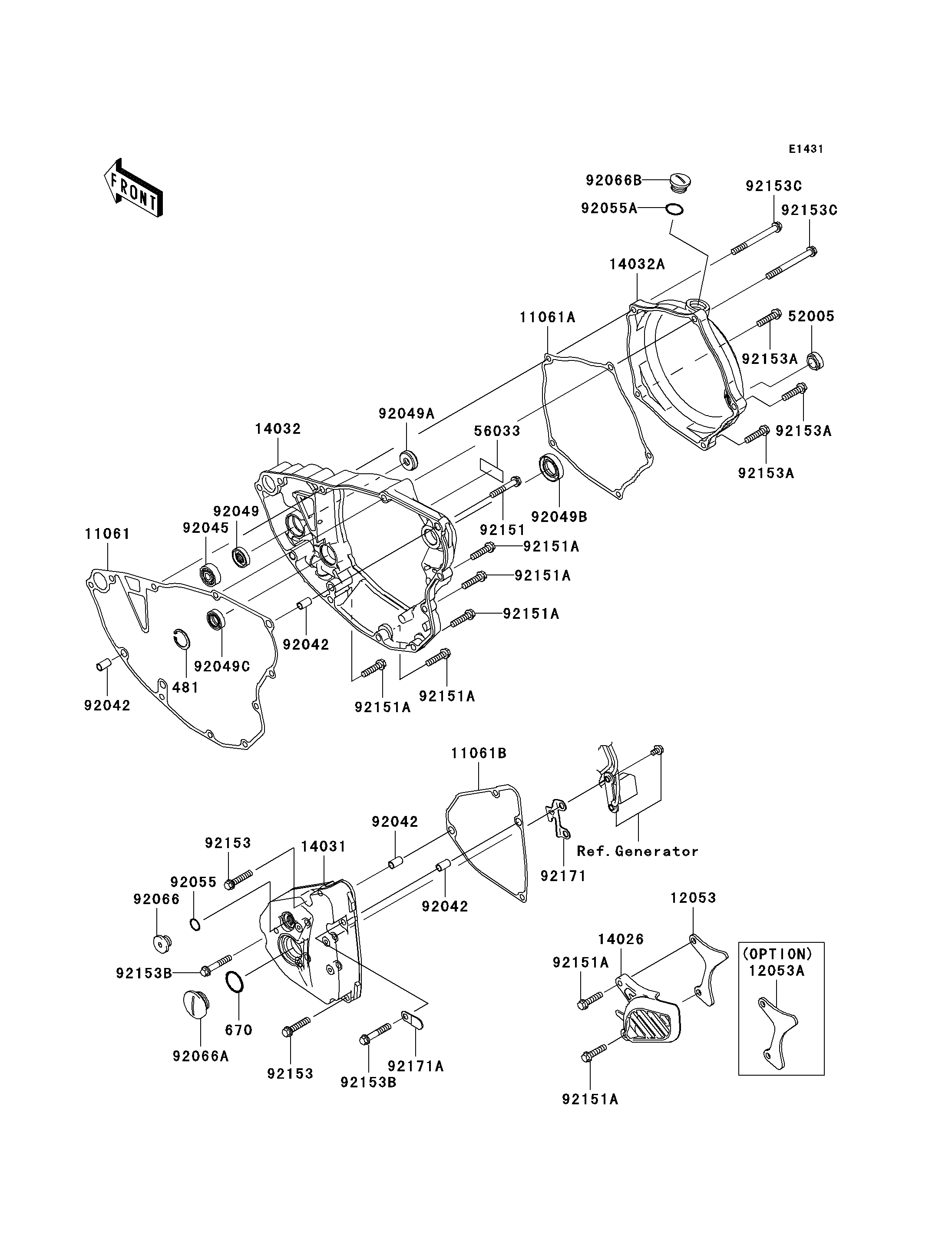

2005 KX250F - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
481
670
11061
11061A
11061B
12053
12053A
14026
14031
14032
14032A
52005
56033
92042
92042
92042
92042
92045
92049
92049A
92049B
92049C
92055
92055A
92066
92066A
92066B
92151
92151A
92151A
92151A
92151A
92151A
92151A
92151A
92153
92153
92153A
92153A
92153A
92153B
92153B
92153C
92153C
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 481 481J2200 1
O RING,22MM 670 670B2022 1
GASKET,CLUTCH COVER,INNNER 11061 11061-0030 1
GASKET,CLUTCH COVER,OUTER 11061A 11061-0031 1
GASKET,GENERATOR COVER 11061B 11061-0032 1
GUIDE-CHAIN,13T 12053 12053-0011 1
GUIDE-CHAIN,12T 12053A 12053-0018 1 (OPTION)
COVER-CHAIN 14026 14026-0001 1
COVER-GENERATOR 14031 14031-0037 1
COVER-CLUTCH,INNER 14032 14032-0011 1
COVER-CLUTCH,OUTER 14032A 14032-0049 1
GAUGE,OIL LEVEL 52005 52005-1009 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-0049 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
BEARING-BALL,#628 92045 92045-1123 1
SEAL-OIL,SD 8 22 5 ZS 92049 92049-0016 1
SEAL-OIL 92049A 92049-0021 1
SEAL-OIL,SB18307 92049B 92049-013 1
SEAL-OIL,TC13225.5 92049C 92049-1519 1
RING-O,ID=13.8 92055 92055-1141 1
RING-O 92055A 92055-1146 1
PLUG,12X9.1 92066 92066-0039 1
PLUG 92066A 92066-1414 1
PLUG 92066B 92066-1456 1
BOLT,6X35 92151 92151-1135 1
BOLT,6X25 92151A 92151-1930 7
BOLT,6X30 92153 92153-0601 2
BOLT,6X25 92153A 92153-0604 3
BOLT,6X35 92153B 92153-0826 2
BOLT,6X65 92153C 92153-0905 2
CLAMP,HARNESS 92171 92171-0195 1
CLAMP 92171A 92171-0295 1
