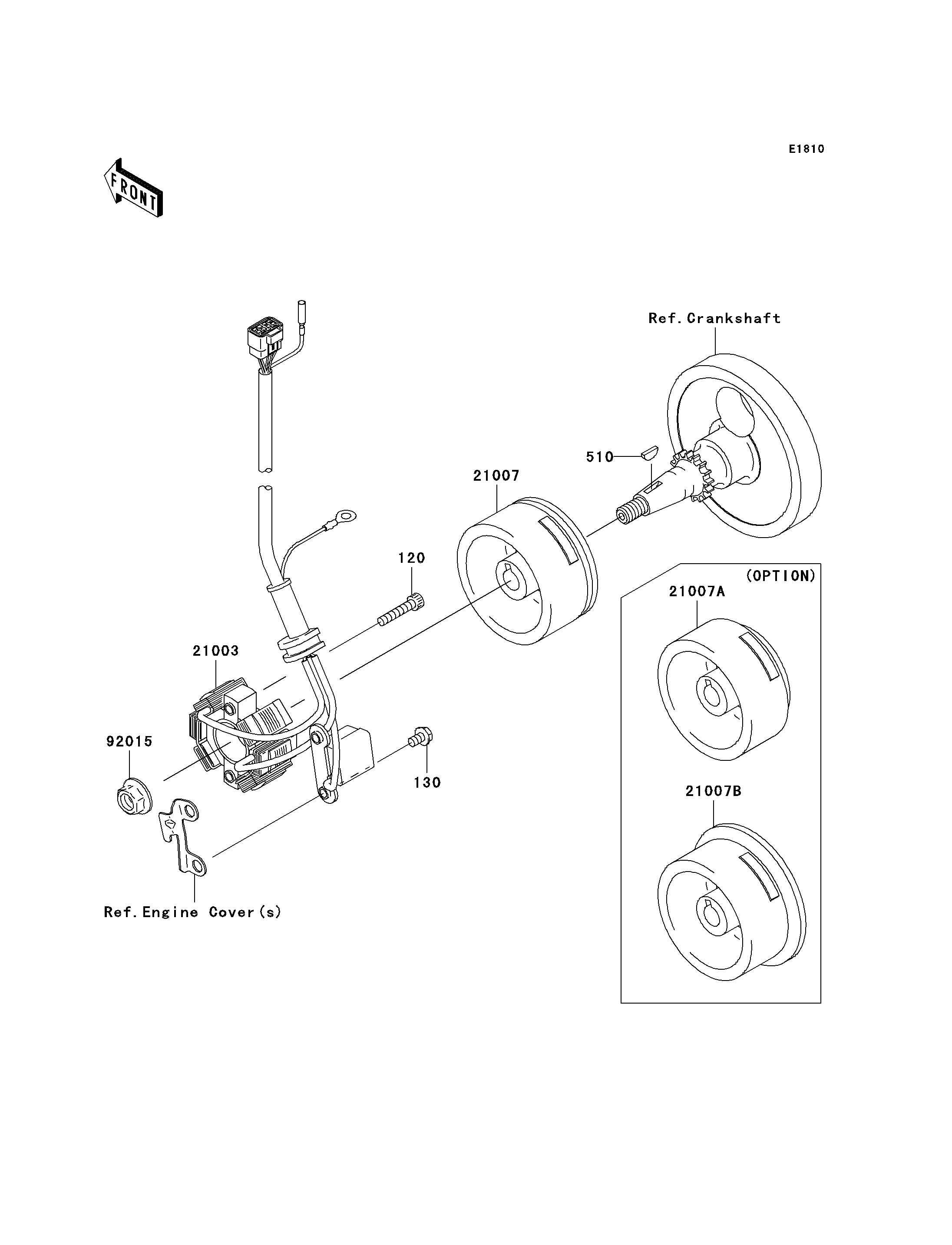

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0525 2
BOLT-FLANGED 130 130G0510 2
KEY-WOODRUFF 510 510A3200 1
STATOR 21003 21003-0027 1
ROTOR,I=4.1 21007 21007-0048 1
ROTOR,I=3.6 21007A 21007-0049 1 (OPTION)
ROTOR,I=4.8 21007B 21007-0050 1 (OPTION)
NUT,FLANGED,10MM 92015 92015-1366 1
