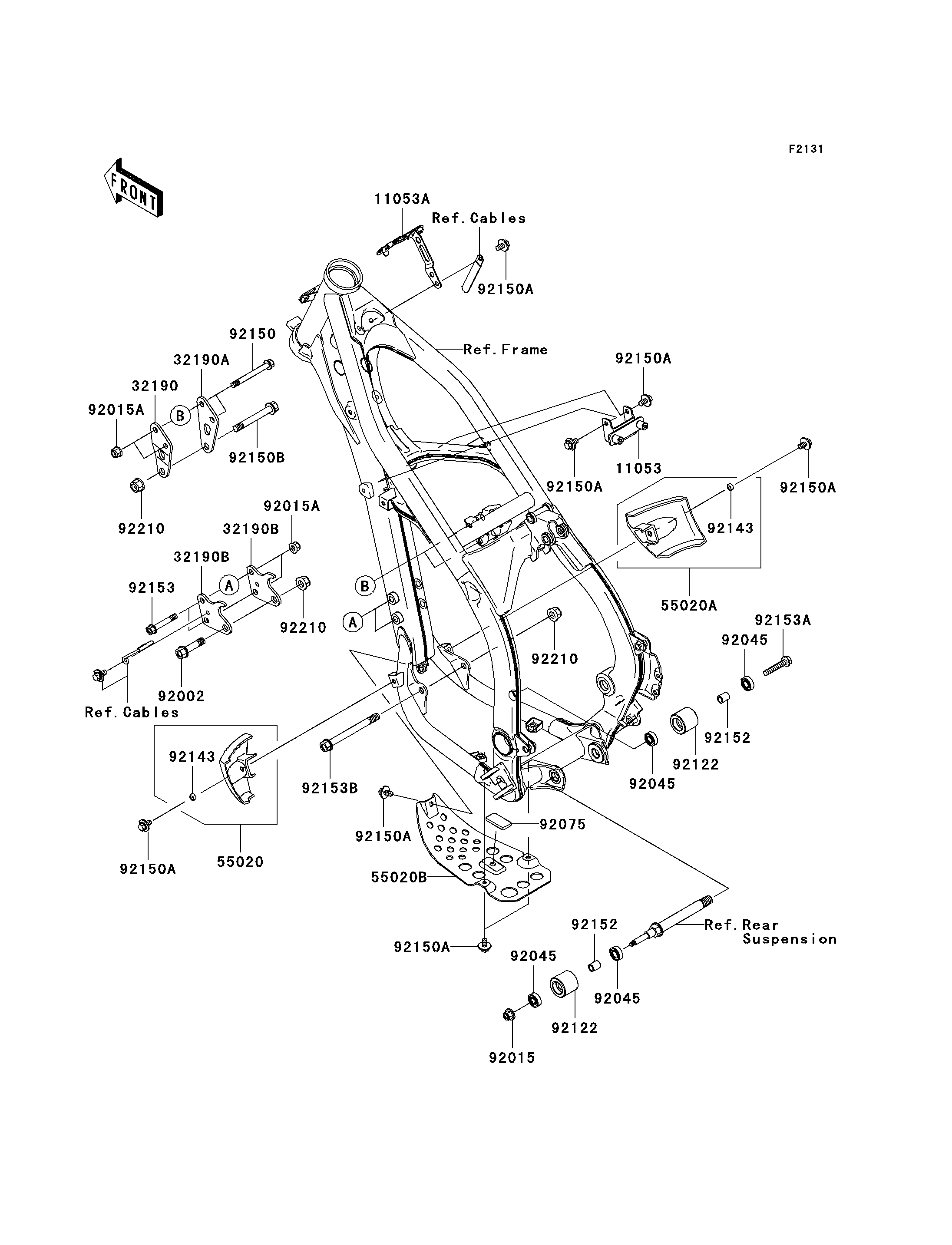

2005 KX250F - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11053
11053A
32190
32190A
32190B
32190B
55020
55020A
55020B
92002
92015
92015A
92015A
92045
92045
92045
92045
92075
92122
92122
92143
92143
92150
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150B
92152
92152
92153
92153A
92153B
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,IGINITION COIL 11053 11053-1300 1
BRACKET,IGNITER 11053A 11053-1637 1
BRACKET-ENGINE,UPP,LH 32190 32190-0014 1
BRACKET-ENGINE,UPP,RH 32190A 32190-0015 1
BRACKET-ENGINE,FR 32190B 32190-0070 2
GUARD,ENGINE,FR,LH 55020 55020-0023 1
GUARD,ENGINE,FR,RH 55020A 55020-0024 1
GUARD,ENGINE 55020B 55020-0055 1
BOLT,ARM,10MM 92002 92002-1576 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,8MM 92015A 92015-1432 4
BEARING-BALL,608LLU/2A 92045 92045-1009 4
DAMPER 92075 92075-1054 1
ROLLER,CHAIN GUIDE 92122 92122-0007 2
COLLAR 92143 92143-1307 2
BOLT,FLANGED,8X50 92150 92150-1214 2
BOLT,6X12 92150A 92150-1435 8
BOLT,FLANGED,10X42 92150B 92150-1571 1
COLLAR,8.5X12.5X15.5 92152 92152-0211 2
BOLT,FLANGED,8X78 92153 92153-0364 2
BOLT,FLANGED,8X45 92153A 92153-0585 1
BOLT,FLANGED,10X110 92153B 92153-0615 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 3
