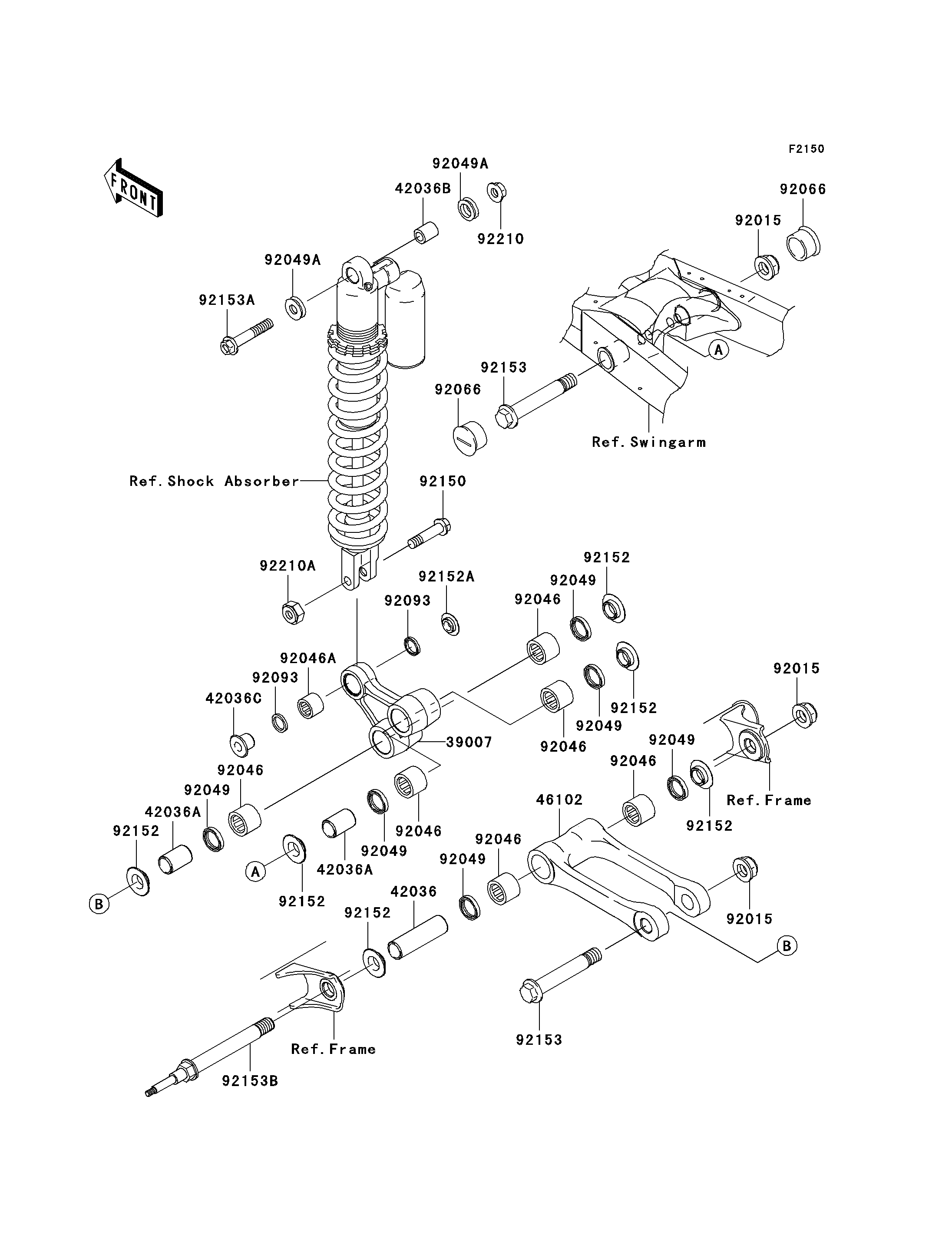

2005 KX250F - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
39007
42036
42036A
42036A
42036B
42036C
46102
92015
92015
92015
92046
92046
92046
92046
92046
92046
92046A
92049
92049
92049
92049
92049
92049
92049A
92049A
92066
92066
92093
92093
92150
92152
92152
92152
92152
92152
92152
92152A
92153
92153
92153A
92153B
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-0001 1
SLEEVE,15X20X80 42036 42036-0014 1
SLEEVE,15X20X41.8 42036A 42036-0015 2
SLEEVE,10X16X19 42036B 42036-1248 1
SLEEVE 42036C 42036-1351 1
ROD,SUSPENSION 46102 46102-0044 1
NUT,FLANGED,14MM 92015 92015-1401 3
BEARING-NEEDLE,F-2016 92046 92046-1151 6
BEARING-NEEDLE,7E-HVS16X22X12 92046A 92046-1301 1
SEAL-OIL,HF020N3-A 92049 92049-0027 6
SEAL-OIL 92049A 92049-1330 2
PLUG,SWING ARM,F.BLACK 92066 92066-0026-6Z 2
SEAL 92093 92093-1436 2
BOLT,FLANGED,10X42 92150 92150-1571 1
COLLAR 92152 92152-0108 6
COLLAR 92152A 92152-1139 1
BOLT,14MM,L=92 92153 92153-0429 2
BOLT,FLANGED,10X56 92153A 92153-0828 1
BOLT,14MM,L=116 92153B 92153-0874 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 1
NUT,LOCK,10MM 92210A 92210-1184 1
