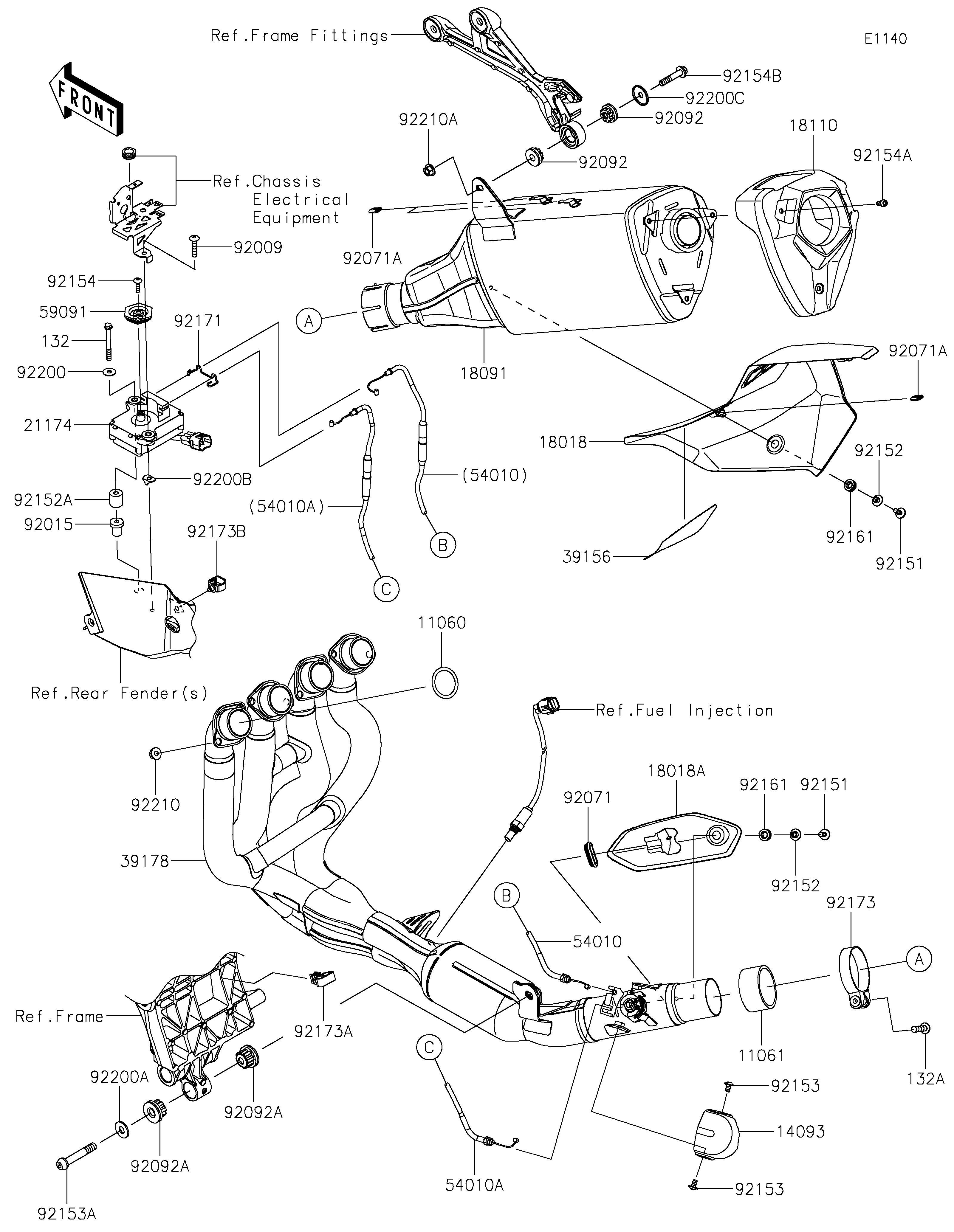

Parts Diagrams |
11060
11061
14093
18018
18018A
18091
18110
21174
39156
39178
54010
54010A
59091
92009
92015
92071
92071A
92071A
92092
92092
92092A
92092A
92151
92151
92152
92152
92152A
92153
92153
92153A
92154
92154A
92154B
92161
92161
92171
92173
92173A
92173B
92200
92200A
92200B
92200C
92210
92210A
132
132A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE | 11060 | 11060-1203 | 4 | ||
| GASKET,MUFFLER JOINT | 11061 | 11061-0980 | 1 | ||
| COVER | 14093 | 14093-0975 | 1 | ||
| PLATE-HEAT GUARD,RR | 18018 | 18018-0618 | 1 | ||
| PLATE-HEAT GUARD,FR | 18018A | 18018-0621 | 1 | ||
| BODY-COMP-MUFFLER | 18091 | 18091-1186 | 1 | ||
| BODY END-MUFFLER | 18110 | 18110-0217 | 1 | ||
| MOTOR-ELECTRIC | 21174 | 21174-0012 | 1 | ||
| PAD,HEAT GUARD,RR | 39156 | 39156-2593 | 1 | ||
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-0400 | 1 | ||
| CABLE,OPEN | 54010 | 54010-0632 | 1 | ||
| CABLE,CLOSE | 54010A | 54010-0633 | 1 | ||
| PULLEY | 59091 | 59091-0007 | 1 | ||
| SCREW,TAPPING,6X30 | 92009 | 92009-1481 | 1 | ||
| NUT,RUBBER,6MM | 92015 | 92015-1692 | 1 | ||
| GROMMET | 92071 | 92071-0752 | 1 | ||
| GROMMET | 92071A | 92071-1270 | 3 | ||
| BUSHING-RUBBER | 92092 | 92092-0018 | 2 | ||
| BUSHING-RUBBER | 92092A | 92092-1081 | 2 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| COLLAR | 92152 | 92152-2671 | 2 | ||
| COLLAR,6.5X18X18.9 | 92152A | 92152-2704 | 1 | ||
| BOLT,SOCKET,6X10 | 92153 | 92153-1527 | 2 | ||
| BOLT,SOCKET,10X60 | 92153A | 92153-1837 | 1 | ||
| BOLT,TORX,5X18 | 92154 | 92154-0217 | 1 | ||
| BOLT,SOCKET,6X12 | 92154A | 92154-1453 | 3 | ||
| BOLT,SOCKET,8X40 | 92154B | 92154-2808 | 1 | ||
| DAMPER | 92161 | 92161-0306 | 2 | ||
| CLAMP | 92171 | 92171-0292 | 1 | ||
| CLAMP,64.5MM | 92173 | 92173-0284 | 1 | ||
| CLAMP,CLIP | 92173A | 92173-0799 | 1 | ||
| CLAMP,HOLDER CLIP | 92173B | 92173-0868 | 1 | ||
| WASHER | 92200 | 92200-0078 | 1 | ||
| WASHER,10.5X25X2.0 | 92200A | 92200-1377 | 1 | ||
| WASHER | 92200B | 92200-1746 | 1 | ||
| WASHER | 92200C | 92200-1919 | 1 | ||
| NUT,8MM | 92210 | 92210-0076 | 8 | ||
| NUT,8MM | 92210A | 92210-0121 | 1 | ||
| BOLT-FLANGED-SMALL,6X55 | 132 | 132BA0655 | 1 | ||
| BOLT-FLANGED-SMALL,8X40 | 132A | 132BC0840 | 1 |
