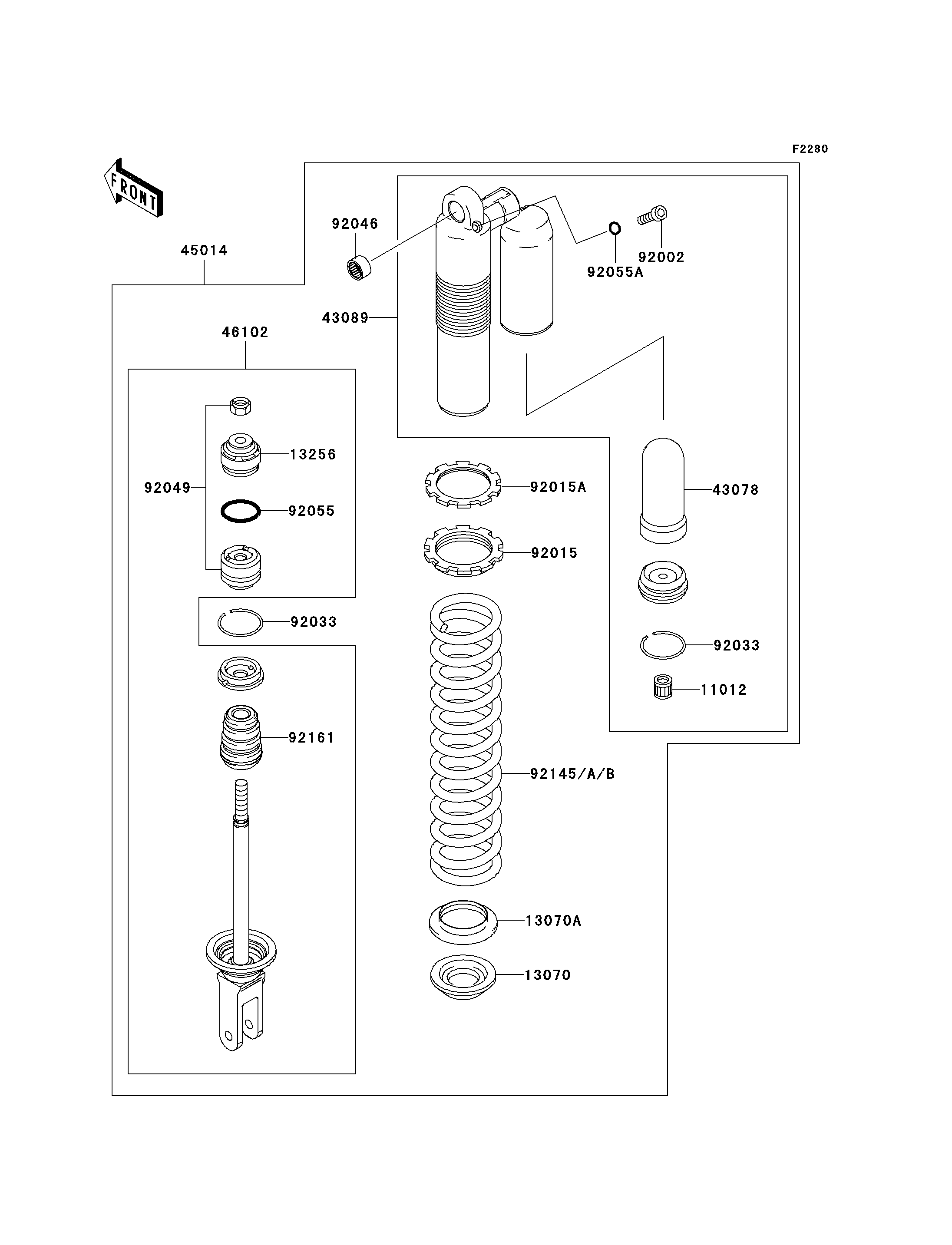

2005 KX250F - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
13070
13070A
13256
43078
43089
45014
46102
92002
92015
92015A
92033
92033
92046
92049
92055
92055A
92145
92145A
92145B
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,AIR VALVE 11012 11012-1552 1
GUIDE,SPRING 13070 13070-0029 1
GUIDE,SPRING 13070A 13070-1362 1
PISTON,SHOCKABSORBER 13256 13256-0002 1
RESERVOIR,SHOCKABSORBER 43078 43078-1094 1
CYLINDER-SHOCKABSORBER 43089 43089-0006 1
SHOCKABSORBER,I.SILVER 45014 45014-0083-8V 1
ROD,SHOCKABSORBER 46102 46102-0059 1
BOLT,DRAIN 92002 92002-1955 1
NUT,SPRING ADJUST 92015 92015-1703 1
NUT,SPRING ADJUST LOCK 92015A 92015-1704 1
RING-SNAP 92033 92033-1209 2
BEARING-NEEDLE,7E-HVS16X22X12 92046 92046-1301 1
SEAL-OIL 92049 92049-0057 1
RING-O,ROD 92055 92055-1346 1
RING-O 92055A 92055-1383 1
SPRING,SHOCKABSORBER,K=4.9,SIL 92145 92145-0014-8V 1 (OPTION)
SPRING,SHOCKABSORBER,K=5.1,SIL 92145A 92145-0015-8V 1
SPRING,SHOCKABSORBER,K=5.3,SIL 92145B 92145-0016-8V 1 (OPTION)
DAMPER,SHOCKABSORBER 92161 92161-1172 1
