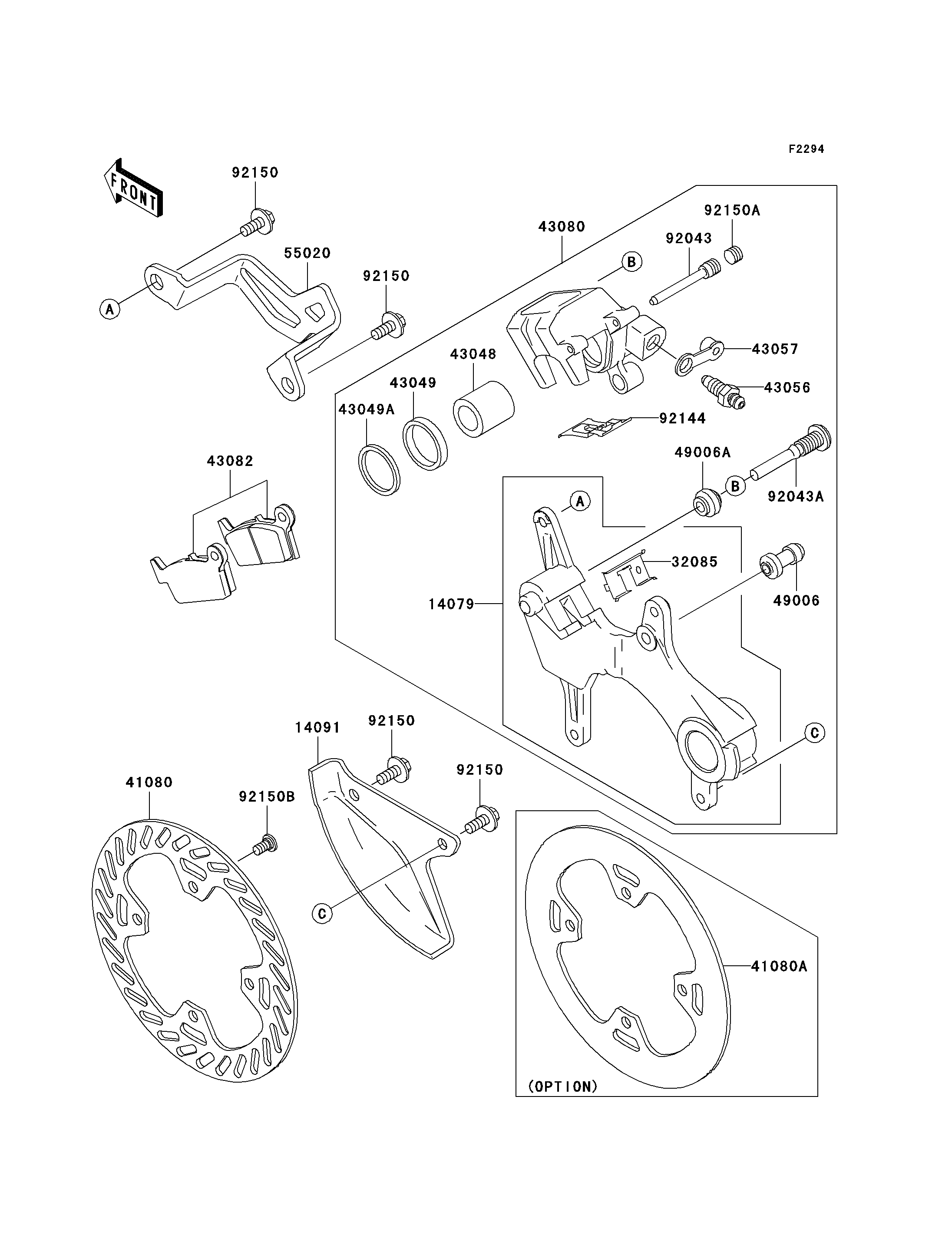

14079
14091
32085
41080
41080A
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
55020
92043
92043A
92144
92150
92150
92150
92150
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-ASSY,REAR CALIPER 14079 14079-0002 1
COVER,REAR DISC,WHITE 14091 14091-1523-RZ 1
STOPPER,PAD 32085 32085-1386 1
DISC,RR 41080 41080-1514 1
DISC,RR 41080A 41080-1518 1 (OPTION)
PISTON-CALIPER 43048 43048-1066 1
PACKING 43049 43049-1063 1
PACKING 43049A 43049-1064 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,RR 43080 43080-0005 1
PAD-ASSY-BRAKE 43082 43082-0006 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
GUARD,RR,CALIPER,WHITE 55020 55020-0018-RZ 1
PIN,HANGER 92043 92043-1507 1
PIN 92043A 92043-1508 1
SPRING,PAD 92144 92144-1819 1
BOLT,6X14 92150 92150-1340 4
BOLT,PLUG 92150A 92150-1692 1
BOLT,DISC PLATE,8X15 92150B 92150-1811 4
