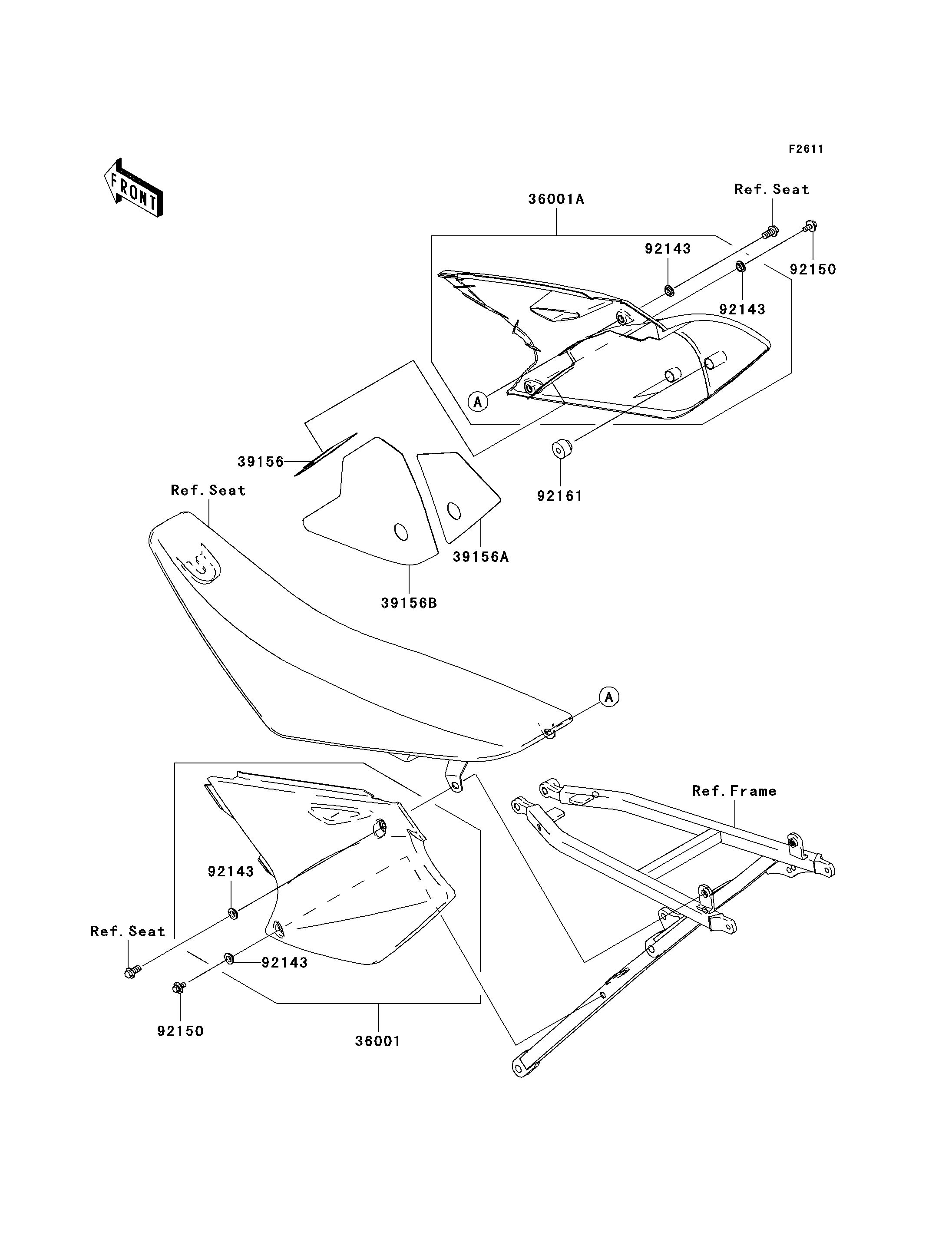

36001
36001A
39156
39156A
39156B
92143
92143
92143
92143
92150
92150
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,S.WHITE 36001 36001-0022-266 1
COVER-SIDE,RH,S.WHITE 36001A 36001-0033-266 1
PAD,SIDE COVER,RH 39156 39156-0033 1
PAD,SIDE COVER,RH 39156A 39156-0039 1
PAD,SIDE COVER,RH 39156B 39156-0044 1
COLLAR 92143 92143-1196 4
BOLT,6X14 92150 92150-1340 2
DAMPER 92161 92161-0073 2
