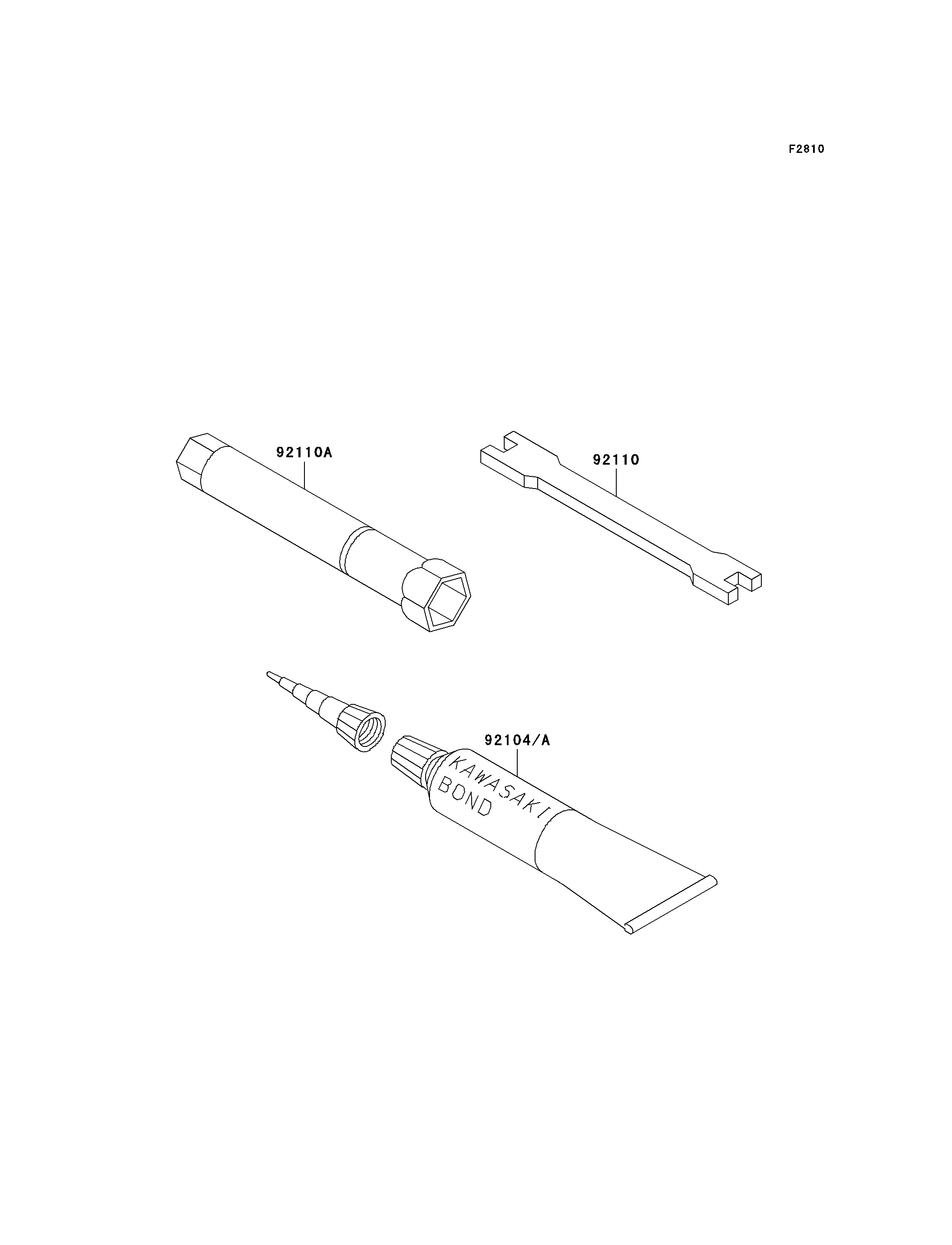

92104
92104A
92110
92110A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-LIQUID,TB1211F 92104 92104-0004 1
GASKET-LIQUID,TB1216,GRAY 92104A 92104-1063 1
TOOL-WRENCH,NIPPLE,6X8 92110 92110-0004 1
TOOL-WRENCH,BOX,16MM 92110A 92110-0005 1
