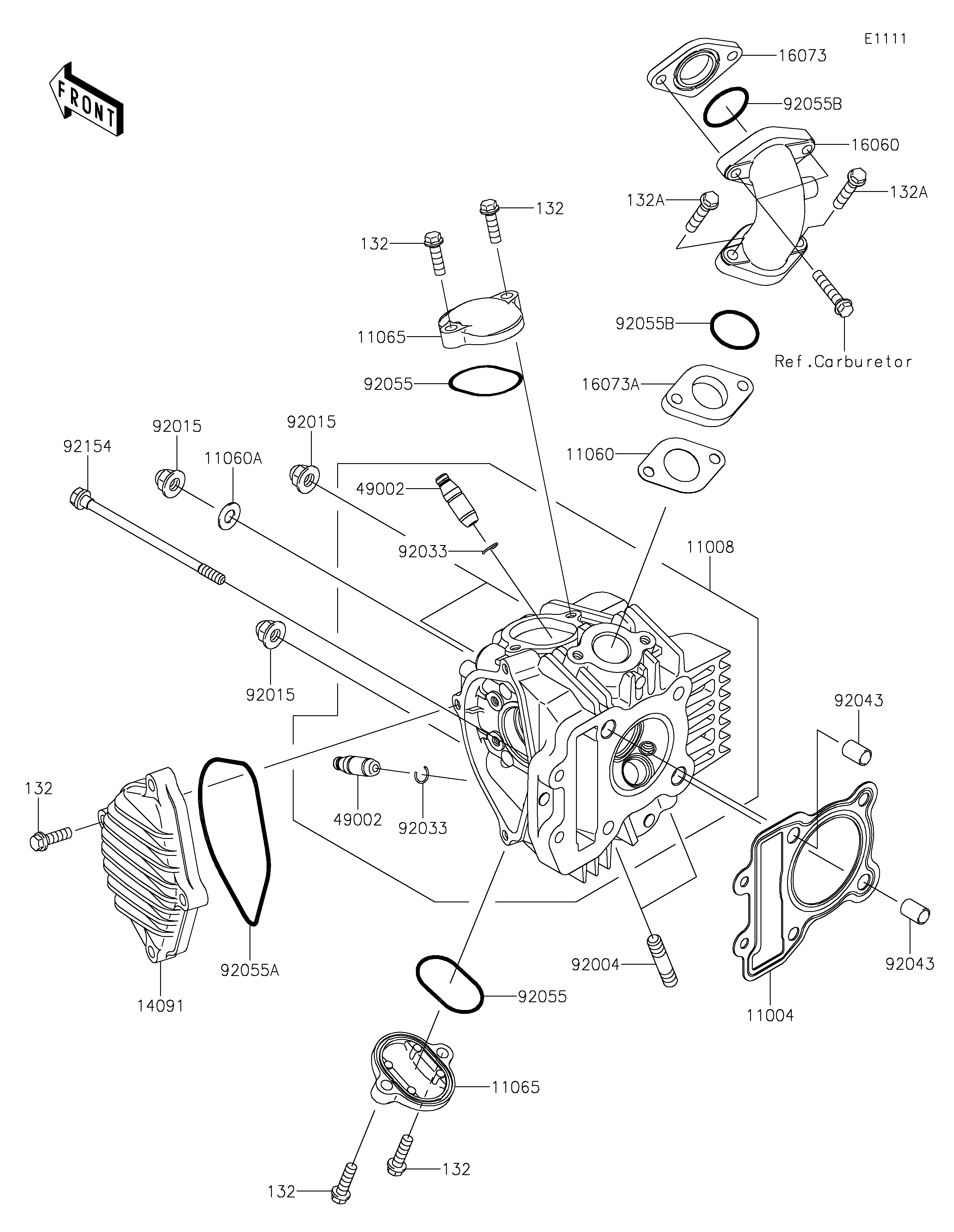

2021 KLX®110R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11060
11060A
11065
11065
14091
16060
16073
16073A
49002
49002
92004
92015
92015
92015
92033
92033
92043
92043
92055
92055
92055A
92055B
92055B
92154
132
132
132
132
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1338 1
HEAD-COMP-CYLINDER 11008 11008-0890 1
GASKET,INTAKE PIPE 11060 11060-1753 1
GASKET 11060A 11060-1862 1
CAP,VALVE,ADJUSTING 11065 11065-0800 2
COVER,CAMSHAFT 14091 14091-1447 1
PIPE-INTAKE 16060 16060-0021 1
INSULATOR,CARBURETOR 16073 16073-1102 1
INSULATOR,HEAD 16073A 16073-1108 1
GUIDE-VALVE 49002 49002-0033 2
STUD,8X28.5 92004 92004-1284 2
NUT,CAP,8MM 92015 92015-1151 4
RING-SNAP 92033 92033-0789 2
PIN,8.2X10X14 92043 92043-0100 2
RING-O,ADJUST CAP 92055 92055-1231 2
RING-O,91X2.5 92055A 92055-1527 1
RING-O,25.5X2.0 92055B 92055-1528 2
BOLT,6X106 92154 92154-2693 2
BOLT-FLANGED-SMALL,6X20 132 132BD0620 8
BOLT-FLANGED-SMALL,6X30 132A 132BD0630 2
