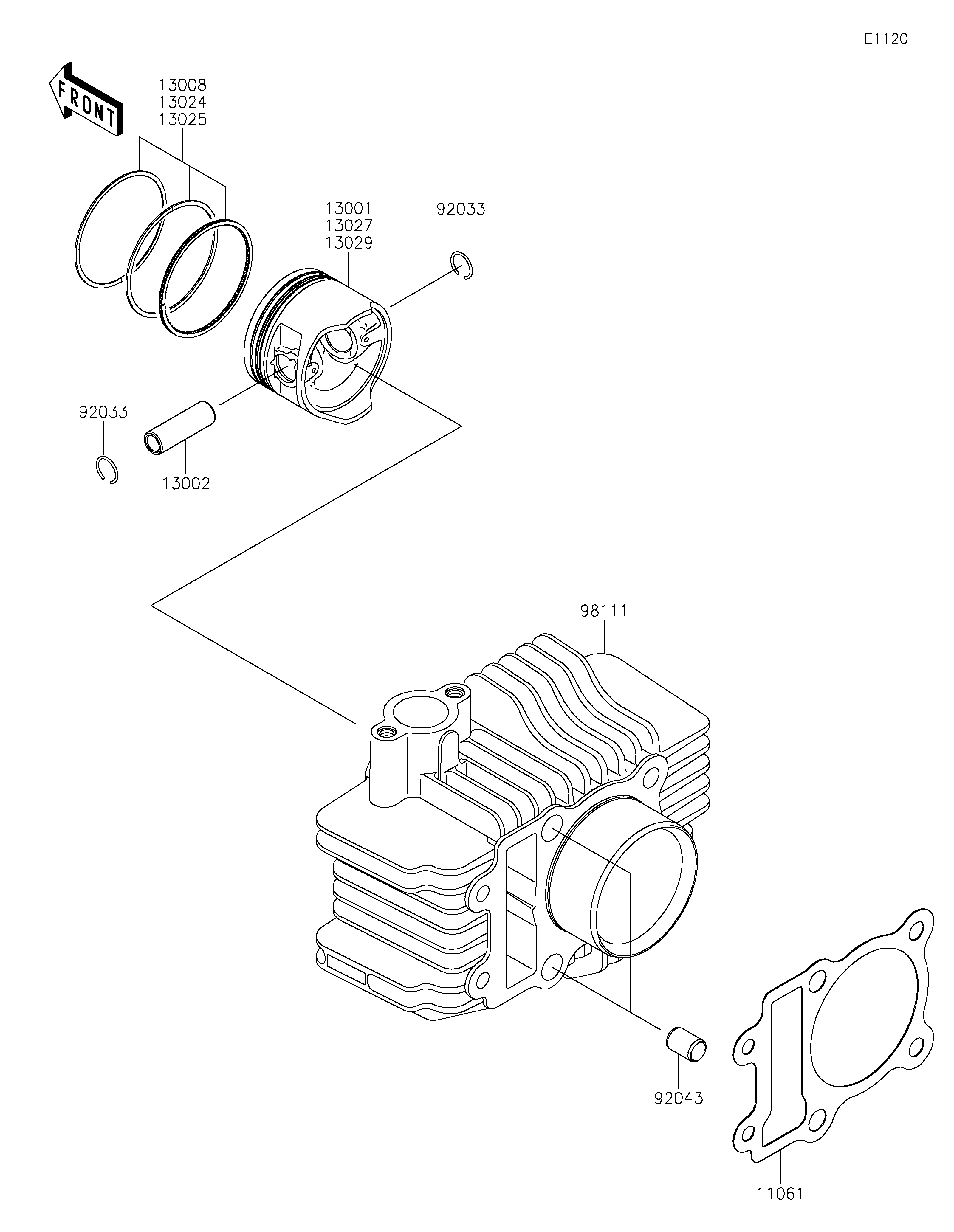

11061
13001
13002
13008
13024
13025
13027
13029
92033
92033
92043
98111
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER BASE 11061 11061-0256 1
PISTON-ENGINE,STD 13001 13001-0118 1
PIN-PISTON 13002 13002-0031 1
RING-SET-PISTON 13008 13008-0011 1
RING-SET-PISTON LL,O/S 1.00 13024 13024-0007 1 (OPTION)
RING-SET-PISTON L,O/S 0.50 13025 13025-0008 1 (OPTION)
PISTON-ENGINE LL 13027 13027-0015 1 (OPTION)
PISTON-ENGINE L 13029 13029-0020 1 (OPTION)
RING-SNAP 92033 92033-1072 2
PIN,8.2X10X14 92043 92043-0100 2
CYLINDER-COMP-ENGINE 98111 98111-0031 1
