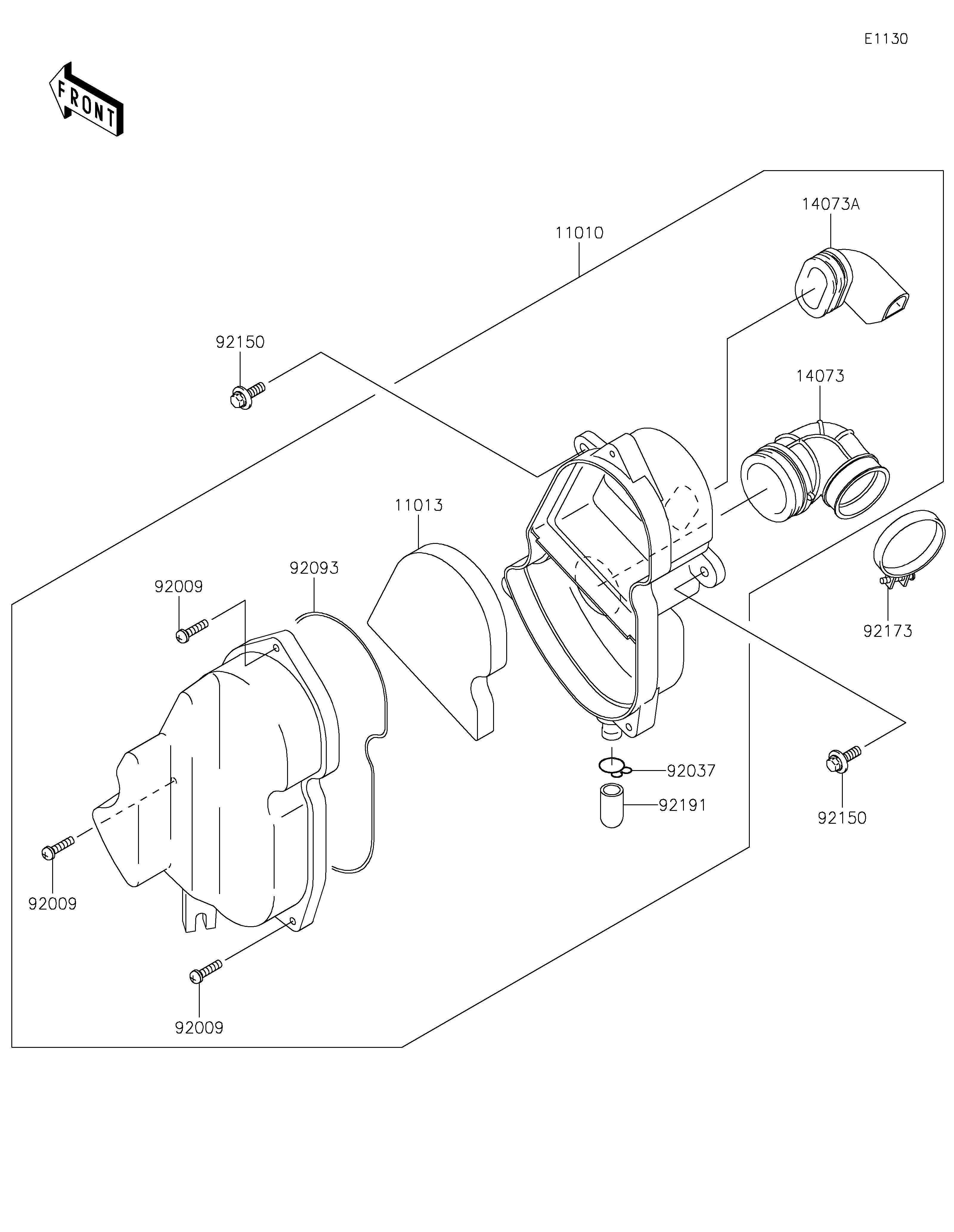

11010
11013
14073
14073A
92009
92009
92009
92037
92093
92150
92150
92173
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1773 1
ELEMENT-AIR FILTER 11013 11013-1294 1
DUCT,CARBURETOR 14073 14073-1819 1
DUCT,IN 14073A 14073-1820 1
SCREW,M5X20 92009 92009-1990 3
CLAMP,14.5MM 92037 92037-1900 1
SEAL,AIR CLEANER 92093 92093-1560 1
BOLT,FLANGED,6X20 92150 92150-1339 2
CLAMP 92173 92173-0991 1
TUBE 92191 92191-1704 1
