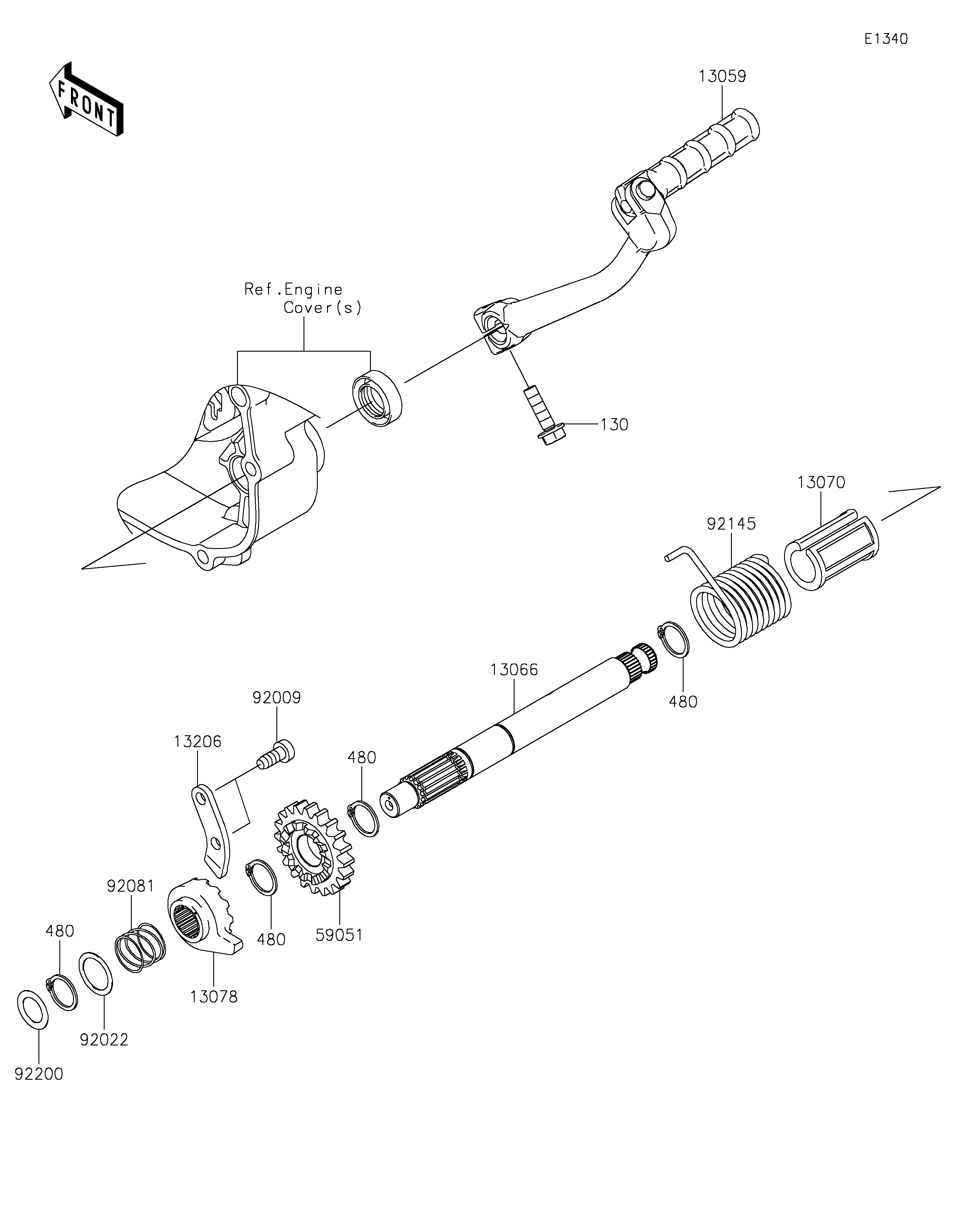

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-KICK 13059 13059-0046 1
SHAFT-KICK 13066 13066-0062 1
GUIDE,KICK SHAFT 13070 13070-1035 1
RATCHET 13078 13078-0557 1
GUIDE-KICK 13206 13206-1006 1
GEAR-SPUR 59051 59051-0715 1
SCREW,TAPPING 92009 92009-1104 2
WASHER,16.8X22X0.5 92022 92022-315 1
SPRING,RATCHET 92081 92081-122 1
SPRING,KICK STARTER 92145 92145-0626 1
WASHER,13.2X20X0.5 92200 92200-0571 1
BOLT-FLANGED,6X22 130 130CA0622 1
CIRCLIP-TYPE-C,16MM 480 480J1600 4
