13156
13161
13236
13236A
14014
92002
92026
92081
92144
92145
92154
92161
220

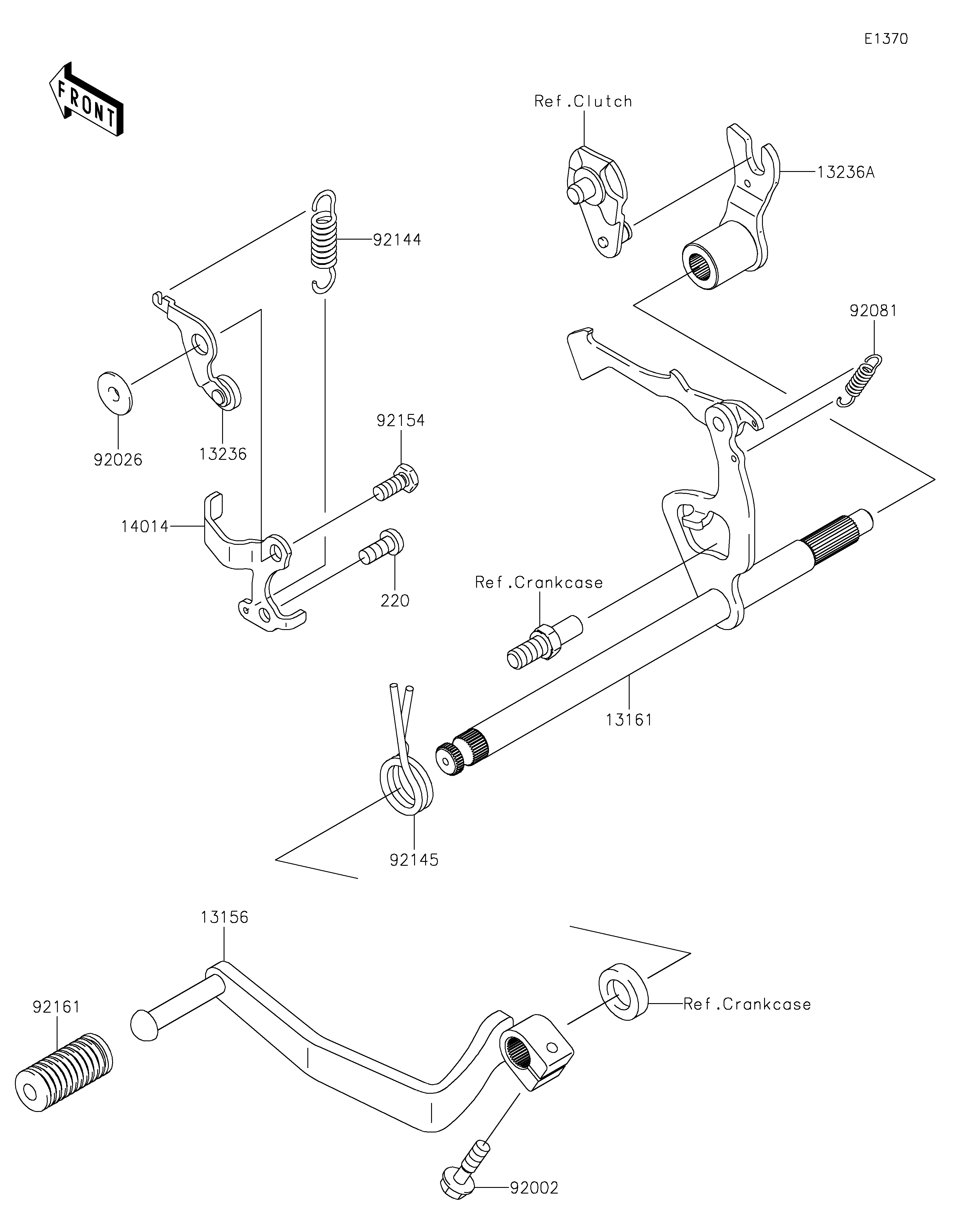

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE 13156 13156-0144 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0019 1
LEVER-COMP,POSITION 13236 13236-1256 1
LEVER-COMP 13236A 13236-1288 1
PLATE-POSITION 14014 14014-0037 1
BOLT,6X20 92002 92002-1237 1
SPACER 92026 92026-0750 1
SPRING,CHANGE LEVER 92081 92081-076 1
SPRING 92144 92144-1590 1
SPRING 92145 92145-0757 1
BOLT,6X14 92154 92154-0788 1
DAMPER,CHANGE PEDAL 92161 92161-2409 1
SCREW-PAN-CROS,6X14 220 220AA0614 1
