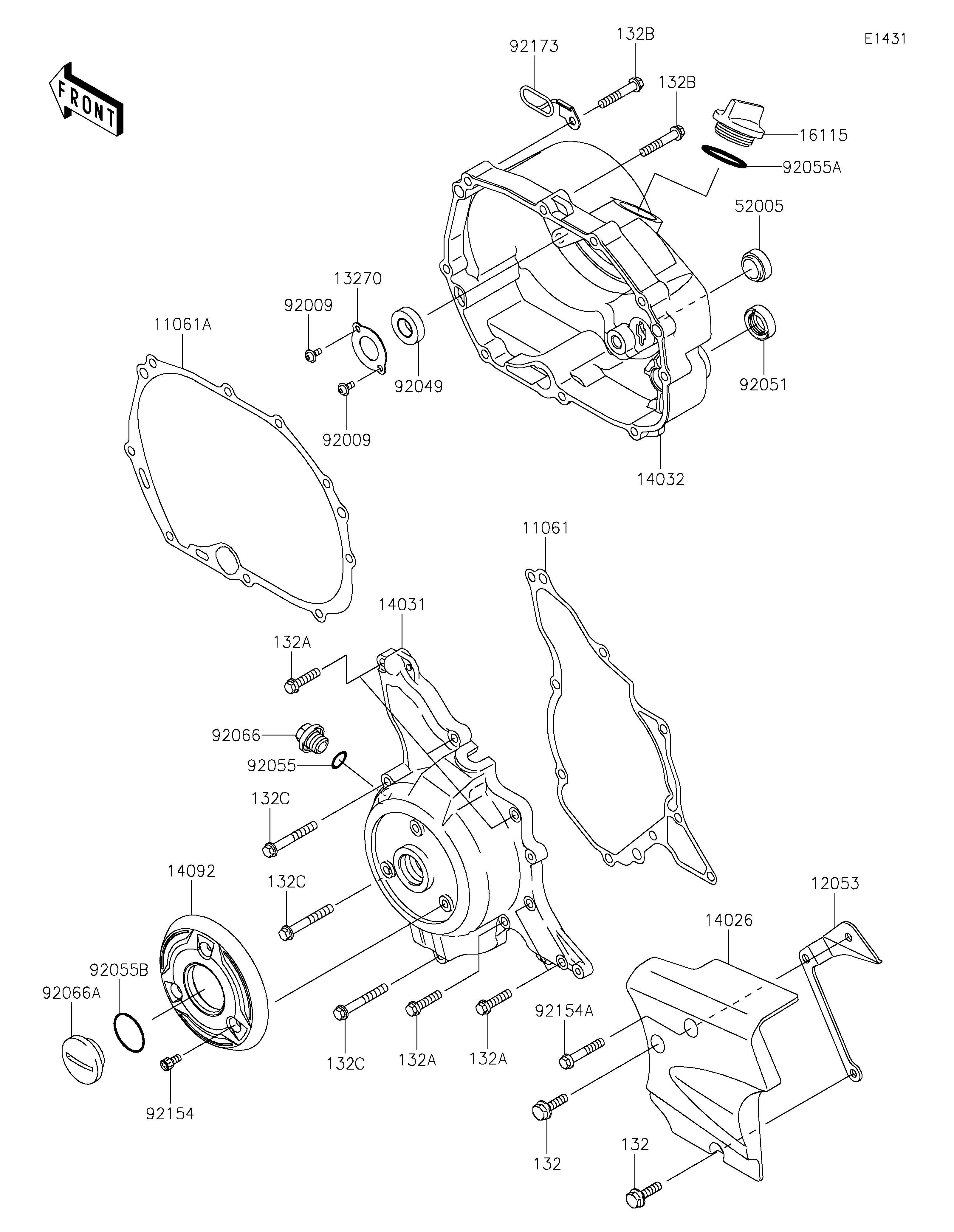

2021 KLX®110R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
12053
13270
14026
14031
14032
14092
16115
52005
92009
92009
92049
92051
92055
92055A
92055B
92066
92066A
92154
92154A
92173
132
132
132A
132A
132A
132B
132B
132C
132C
132C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVER 11061 11061-0257 1
GASKET,CLUTCH COVER 11061A 11061-0426 1
GUIDE-CHAIN 12053 12053-0164 1
PLATE 13270 13270-1800 1
COVER-CHAIN 14026 14026-0070 1
COVER-GENERATOR,SILVER 14031 14031-0119-GS 1
COVER-CLUTCH 14032 14032-0129 1
COVER 14092 14092-0029 1
CAP-OIL FILLER 16115 16115-1068 1
GAUGE,OIL LEVEL 52005 52005-0019 1
SCREW 92009 92009-1745 2
SEAL-OIL,S 12 28 7 HS 92049 92049-0051 1
SEAL-OIL,TB16267 92051 92051-003 1
RING-O,14.8X2.4 92055 92055-0194 1
RING-O,31.5X2.6 92055A 92055-049 1
RING-O,25.7X2.4 92055B 92055-0763 1
PLUG,14X10 92066 92066-0724 1
PLUG,GENERATOR COVER CAP 92066A 92066-1565 1
BOLT,SOCKET,5X10 92154 92154-0789 3
BOLT,FLANGED,6X35 92154A 92154-1297 1
CLAMP,DRAIN TUBE 92173 92173-1067 1
BOLT-FLANGED-SMALL,6X20 132 132BD0620 2
BOLT-FLANGED-SMALL,6X25 132A 132BD0625 6
BOLT-FLANGED-SMALL,6X35 132B 132BD0635 9
BOLT-FLANGED-SMALL,6X45 132C 132BD0645 3
