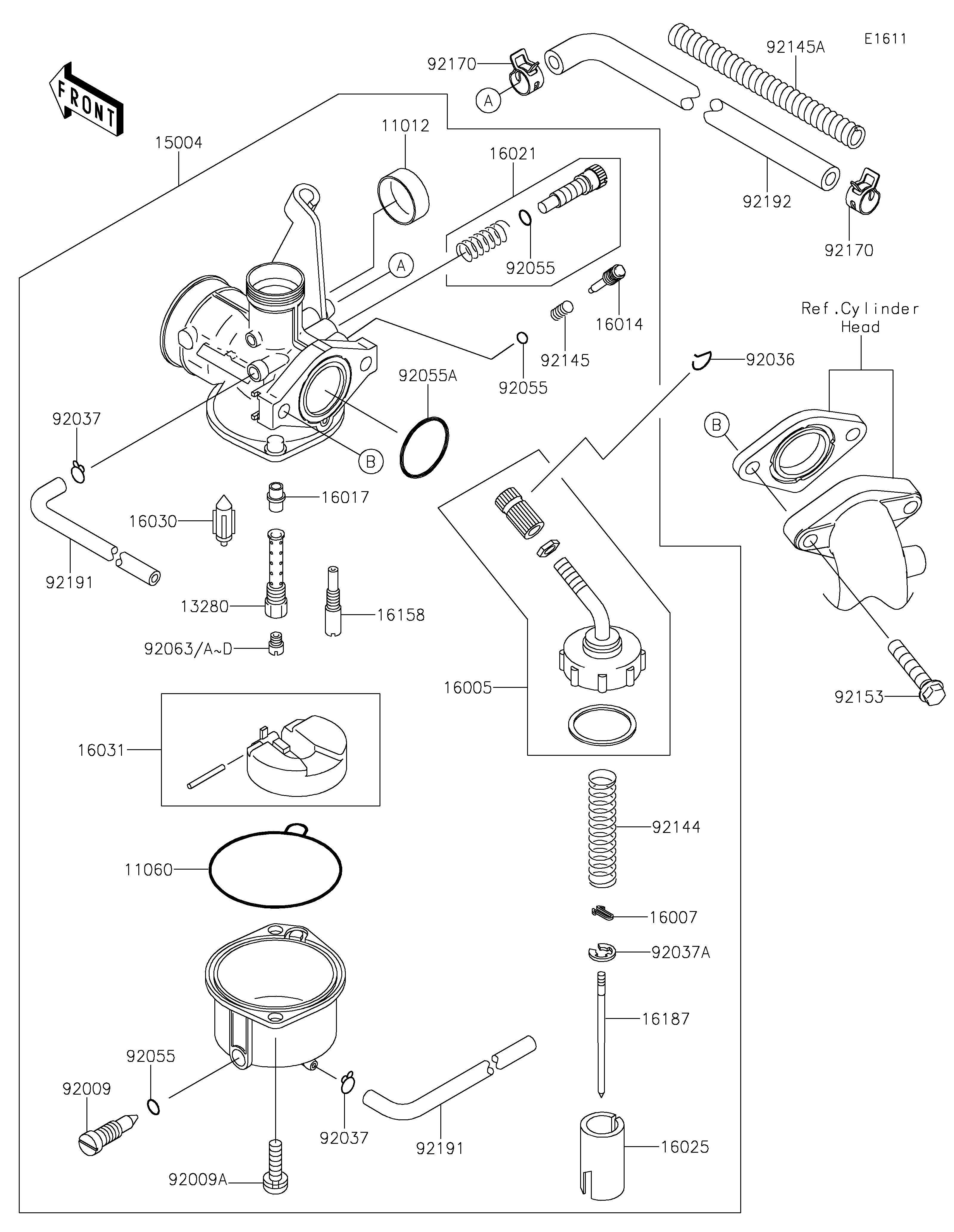

2021 KLX®110R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11012
11060
13280
15004
16005
16007
16014
16017
16021
16025
16030
16031
16158
16187
92009
92009A
92036
92037
92037
92037A
92055
92055
92055
92055A
92063
92063A
92063B
92063C
92063D
92144
92145
92145A
92153
92170
92170
92191
92191
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHOKE 11012 11012-1940 1
GASKET,FLOAT CHAMBER 11060 11060-1700 1
HOLDER,NEEDLE JET 13280 13280-0359 1
CARBURETOR-ASSY,PB18 15004 15004-0065 1
TOP-CHAMBER 16005 16005-1091 1
SEAT-SPRING 16007 16007-1103 1
SCREW-PILOT AIR 16014 16014-0011 1
JET-NEEDLE 16017 16017-1434 1
SCREW-THROTTLE STOP 16021 16021-1241 1
VALVE-THROTTLE,CA3.0 16025 16025-1209 1
VALVE-FLOAT,FLOAT 16030 16030-0002 1
FLOAT 16031 16031-1088 1
JET-SLOW,#40 16158 16158-0005 1
NEEDLE-JET,NCFA 16187 16187-1228 1
SCREW,DRAIN 92009 92009-1057 1
SCREW 92009A 92009-1750 2
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-1142 2
CLAMP,JET NEEDLE 92037A 92037-1401 1
RING-O 92055 92055-1053 3
RING-O 92055A 92055-1541 1
JET-MAIN,#78 92063 92063-1393 1
JET-MAIN,#72 92063A 92063-1394 AR (OPTION)
JET-MAIN,#75 92063B 92063-1395 AR (OPTION)
JET-MAIN,#80 92063C 92063-1396 AR (OPTION)
JET-MAIN,#82 92063D 92063-1397 AR (OPTION)
SPRING,THROTTLE 92144 92144-1875 1
SPRING 92145 92145-0004 1
SPRING,HOSE PROTECTER 92145A 92145-1481 1
BOLT,FLANGED-SMALL,6X28 92153 92153-1309 2
CLAMP 92170 92170-1872 2
TUBE,3.5X6.5X418 92191 92191-1735 2
TUBE,5.8X10.8X277 92192 92192-0583 1
