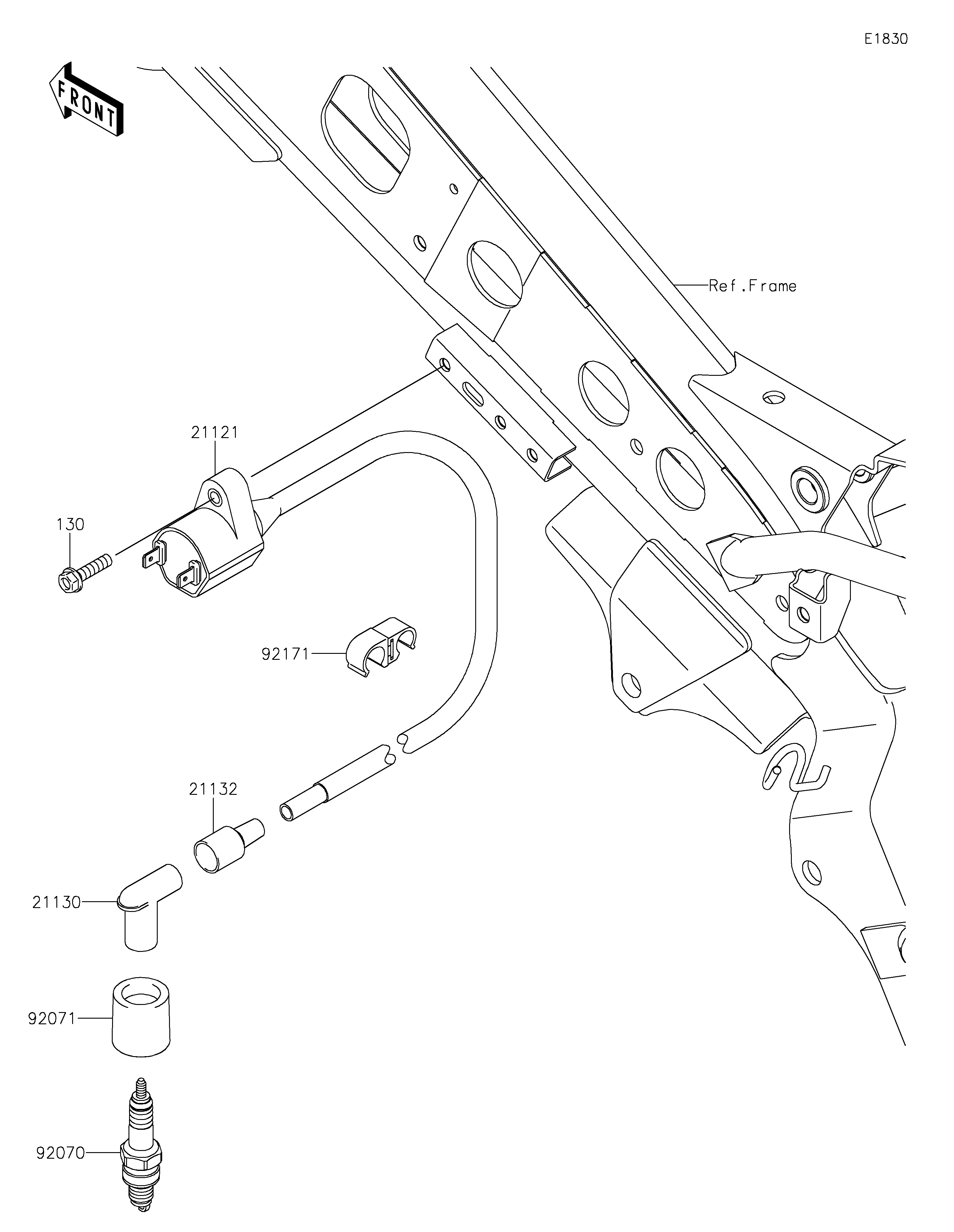

21121
21130
21132
92070
92071
92171
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121 21121-1311 1
CAP-SPARK PLUG 21130 21130-1003 1
GROMMET,HIGH TENSION 21132 21132-005 1
PLUG-SPARK,CR6HSA(NGK) 92070 92070-0023 1
GROMMET,PLUG CAP 92071 92071-1184 1
CLAMP 92171 92171-1487 1
BOLT-FLANGED,5X20 130 130BA0520 1
