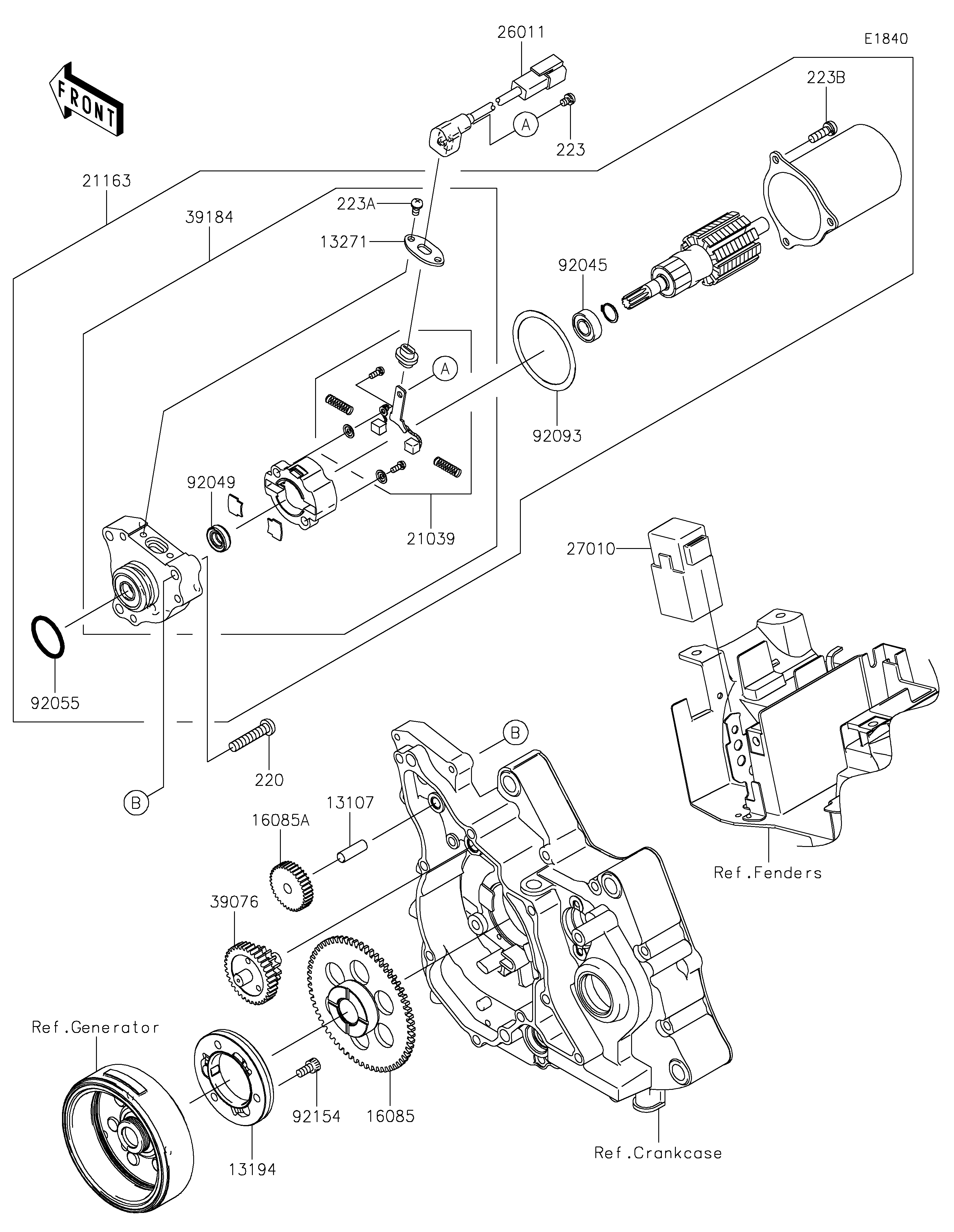

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13107
13194
13271
16085
16085A
21039
21163
26011
27010
39076
39184
92045
92049
92055
92093
92154
220
223
223A
223B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,8X25 | 13107 | 13107-1142 | 1 | ||
| CLUTCH-ONEWAY | 13194 | 13194-0013 | 1 | ||
| PLATE | 13271 | 13271-0674 | 1 | ||
| GEAR | 16085 | 16085-0136 | 1 | ||
| GEAR,IDLE,45T | 16085A | 16085-0593 | 1 | ||
| BRUSH,STARTER MOTOR(SET) | 21039 | 21039-1067 | 1 | ||
| STARTER-ELECTRIC | 21163 | 21163-0777 | 1 | ||
| WIRE-LEAD | 26011 | 26011-0249 | 1 | ||
| SWITCH | 27010 | 27010-0085 | 1 | ||
| LIMITER | 39076 | 39076-0022 | 1 | ||
| BRACKET-ASSY | 39184 | 39184-0014 | 1 | ||
| BEARING-BALL,STARTER MOTOR | 92045 | 92045-1349 | 1 | ||
| SEAL-OIL,STARTER MOTOR | 92049 | 92049-1465 | 1 | ||
| RING-O | 92055 | 92055-1276 | 1 | ||
| SEAL,STARTER MOTOR | 92093 | 92093-1079 | 1 | ||
| BOLT | 92154 | 92154-0325 | 3 | ||
| SCREW-PAN-CROS,6X30 | 220 | 220AD0630 | 3 | ||
| SCREW-PAN-WS-CROS,4X6 | 223 | 223AA0406 | 1 | ||
| SCREW-PAN-WS-CROS,4X8 | 223A | 223AA0408 | 2 | ||
| SCREW-PAN-WS-CROS,5X16 | 223B | 223AA0516 | 3 |
