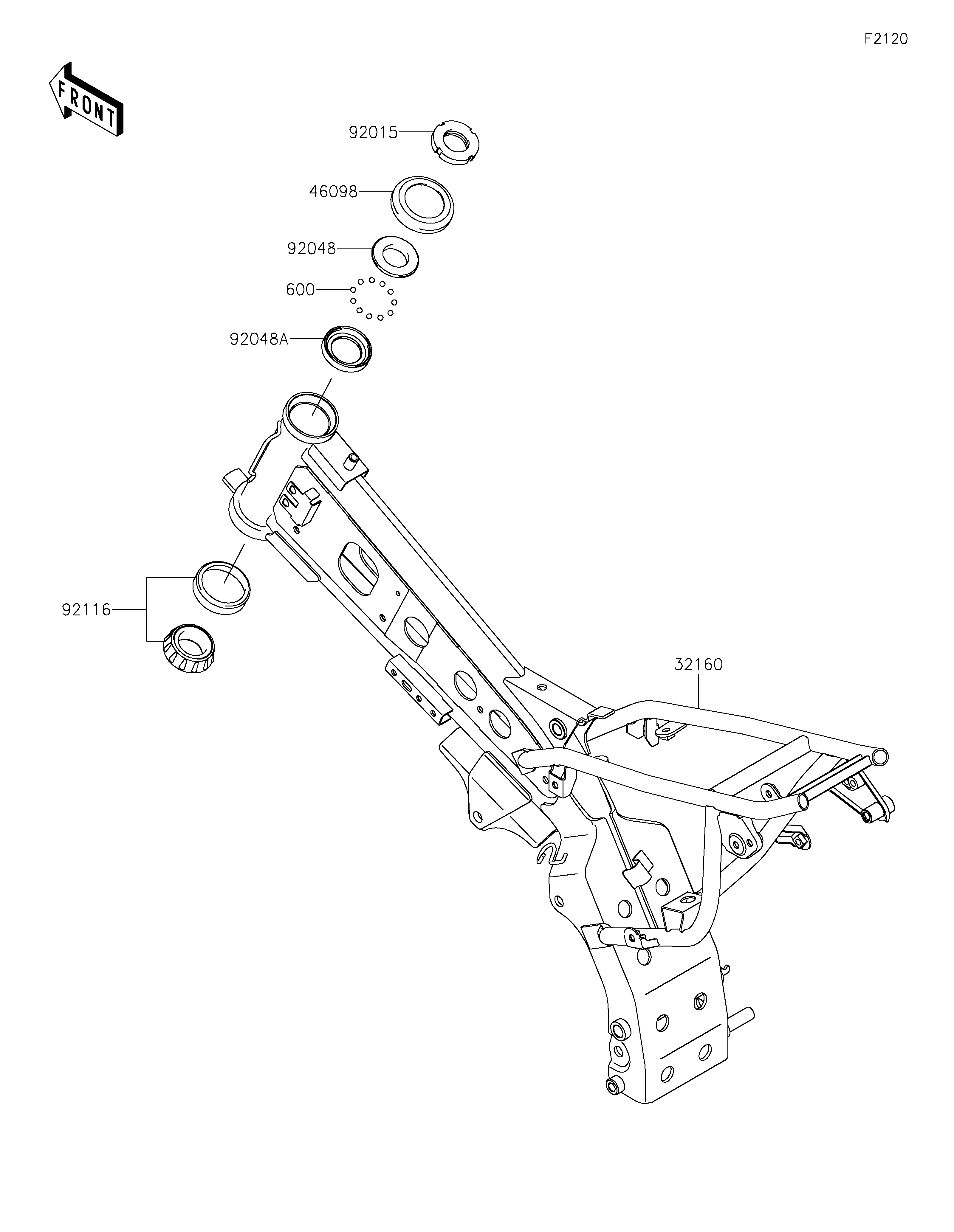

32160
46098
92015
92048
92048A
92116
600
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,P.SILVER 32160 32160-0501-458 1
CAP,STEERING STEM 46098 46098-018 1
NUT,STEERING LOCK,25MM 92015 92015-1222 1
RACE,STEERING STEM BEARING 92048 92048-0035 1
RACE,STEERING STEM BEARING 92048A 92048-0038 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BALL-STEEL,3/16 600 600A0600 23
