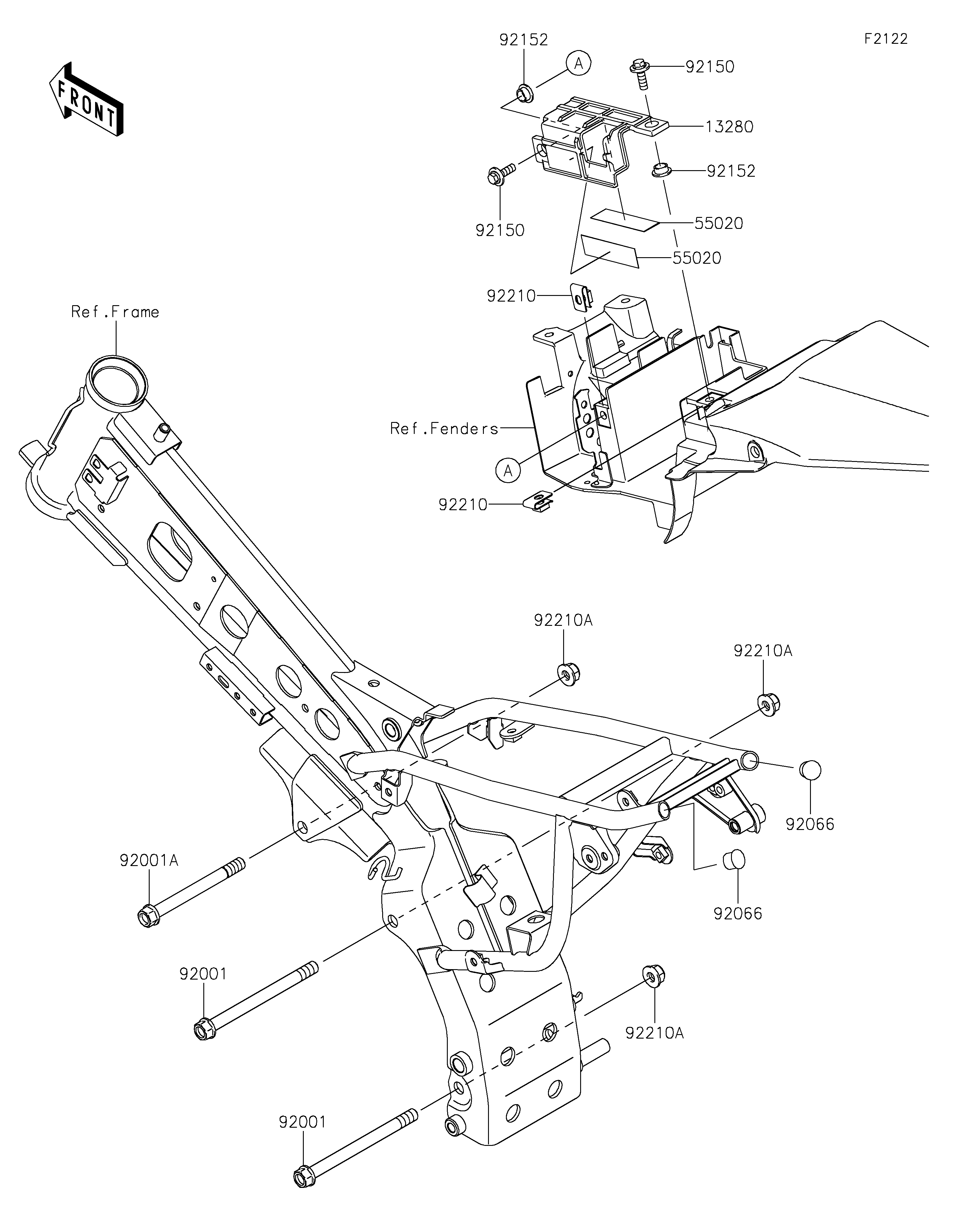

Parts Diagrams |
13280
55020
55020
92001
92001
92001A
92066
92066
92150
92150
92152
92152
92210
92210
92210A
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,BATTERY | 13280 | 13280-0384 | 1 | ||
| GUARD | 55020 | 55020-0527 | 2 | ||
| BOLT,FLANGED,10X125 | 92001 | 92001-1720 | 2 | ||
| BOLT,FLANGED,10X105,BLACK | 92001A | 92001-1751 | 1 | ||
| PLUG | 92066 | 92066-1081 | 2 | ||
| BOLT,FLANGED,6X20 | 92150 | 92150-1339 | 2 | ||
| COLLAR | 92152 | 92152-0789 | 2 | ||
| NUT,6MM | 92210 | 92210-0218 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210A | 92210-1081 | 3 |
