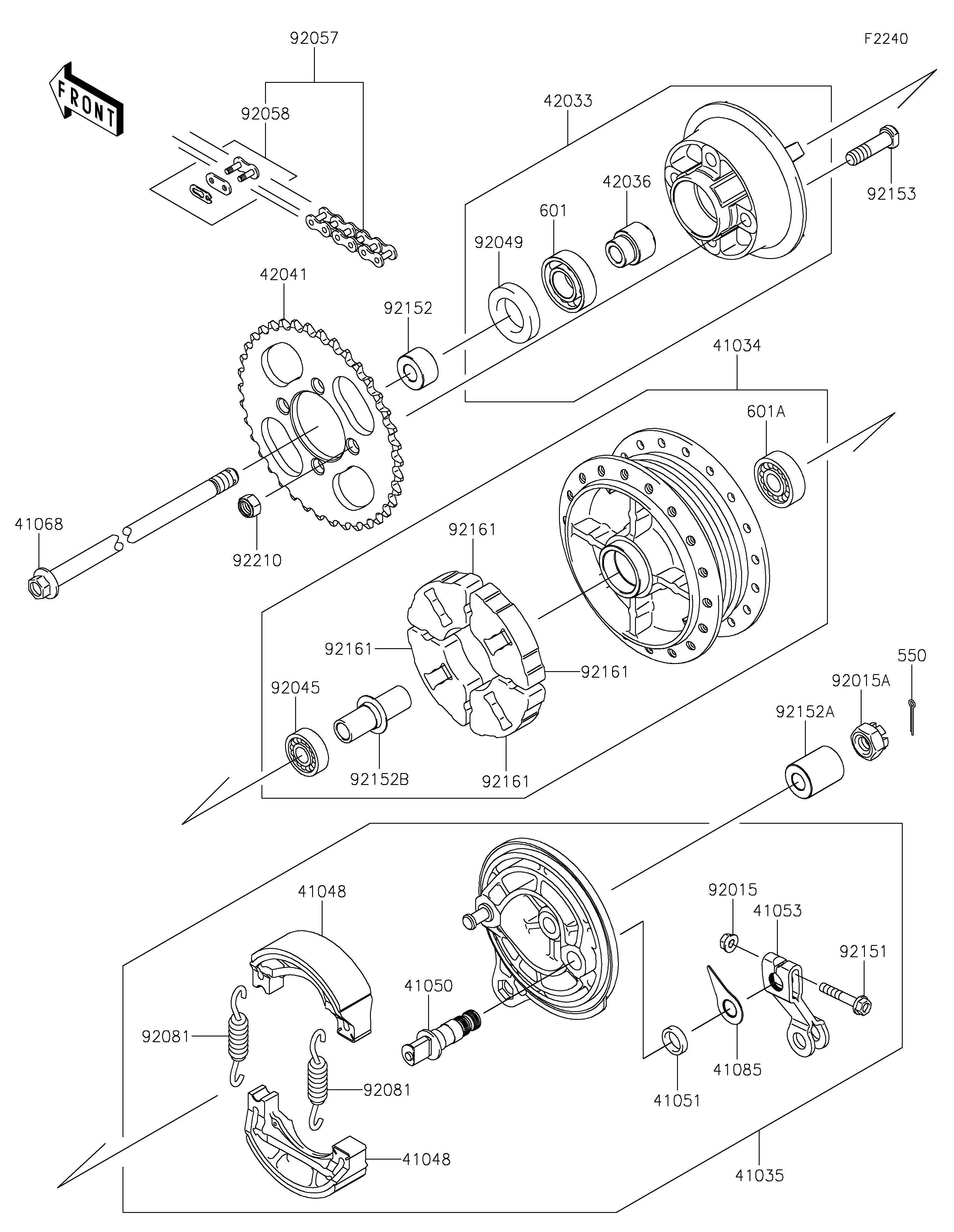

2021 KLX®110R - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
41034
41035
41048
41048
41050
41051
41053
41068
41085
42033
42036
42041
92015
92015A
92045
92049
92057
92058
92081
92081
92151
92152
92152A
92152B
92153
92161
92161
92161
92161
92210
550
601
601A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-0010 1
PANEL-ASSY-BRAKE,RR 41035 41035-0084 1
SHOE-BRAKE 41048 41048-1141 2
CAM-BRAKE 41050 41050-1082 1
SEAL,BRAKE CAM 41051 41051-001 1
LEVER-BRAKE CAM 41053 41053-0021 1
AXLE,RR 41068 41068-0016 1
INDICATOR 41085 41085-1085 1
COUPLING-ASSY,RR HUB 42033 42033-1223 1
SLEEVE,RR HUB COUPLING,L=29 42036 42036-1292 1
SPROCKET-HUB,38T 42041 42041-0082 1
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,CASTLE,12MM 92015A 92015-1870 1
BEARING-BALL,6201ZC3/5C 92045 92045-1308 1
SEAL-OIL,SC26X42X8 92049 92049-1490 1
CHAIN,DRIVE,DID420DXX90L 92057 92057-0183 1
JOINT-CHAIN,DRIVE 92058 92058-0006 1
SPRING,BRAKE SHOE 92081 92081-1766 2
BOLT,FLANGED,6X34 92151 92151-1209 1
COLLAR,RR AXLE,LH,L=14.8 92152 92152-1405 1
COLLAR,RR AXLE,RH,L=32 92152A 92152-1406 1
COLLAR,REAR BRAKE DRUM,L=58 92152B 92152-1409 1
BOLT,10X36 92153 92153-1120 4
DAMPER,RR HUB SHOCK 92161 92161-0084 4
NUT,LOCK,10MM 92210 92210-1351 4
PIN-COTTER,2.5X30 550 550S2530 1
BEARING-BALL,#6004UG 601 601B6004UG 1
BEARING-BALL,#6301UG 601A 601B6301UG 1
